Pixie service manual
64
REPAIRS

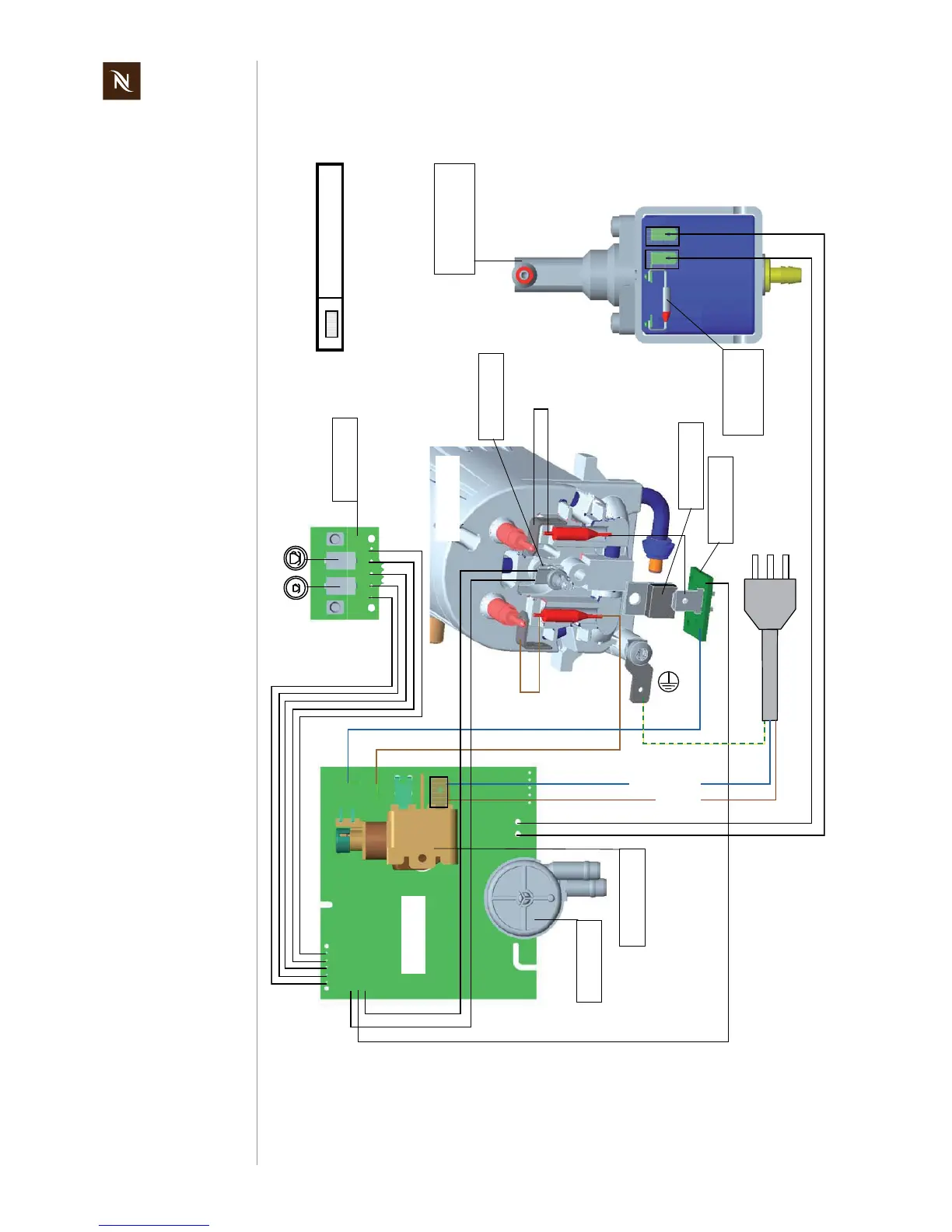

7.9.6 Wiring diagram 110 V IEC (Taiwan)
Small cup
On/Off Switch
Receptacle isolation
Big cup
Flow Meter
Main PCB
MMI PCB
Triac PCB
167°C
167°C
Thermoblock
Neutral
Line
Pump
EN4 100-110V
Overheat
protection
NTC
Triac
