MAIN COMPONENTS

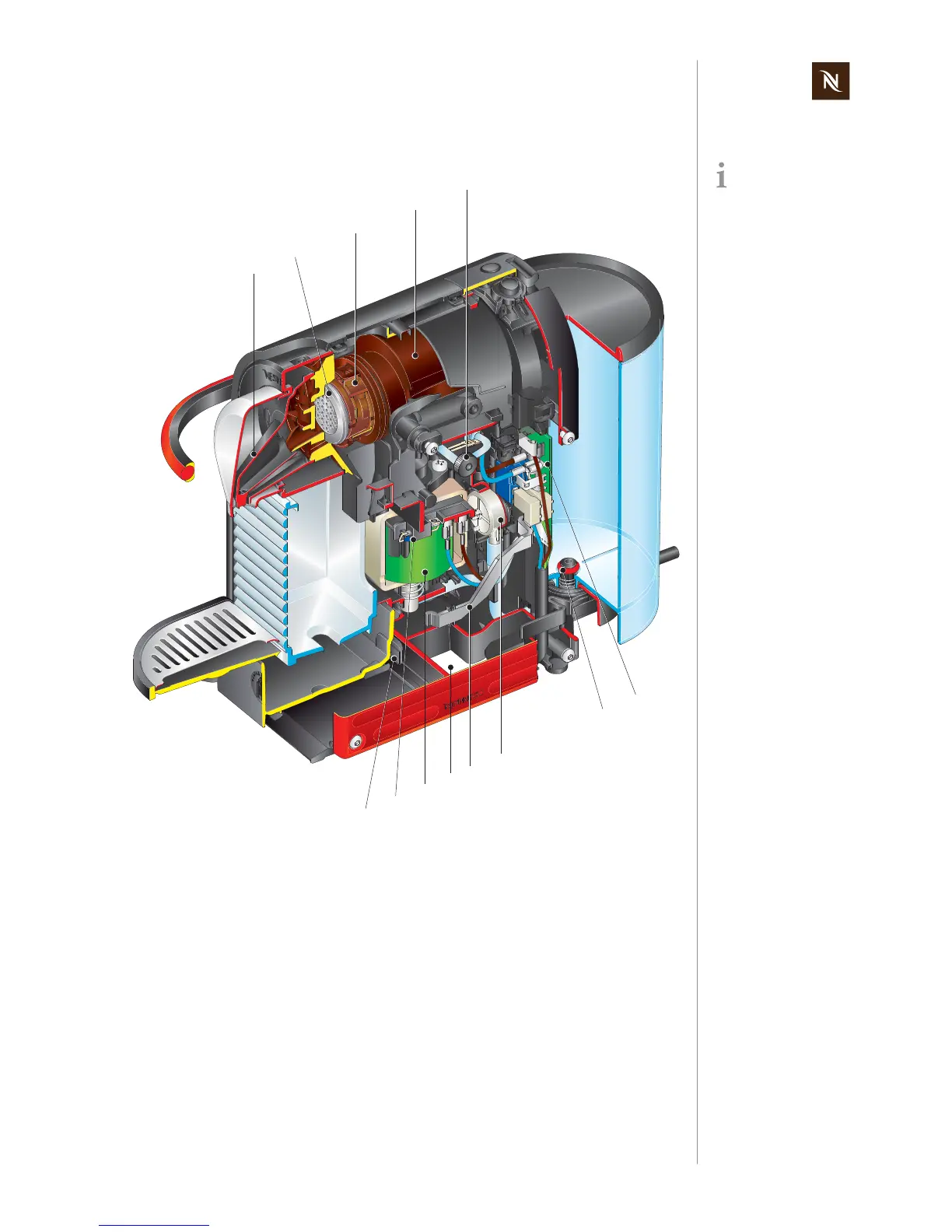

2.2 Interior view
This interior view
shows the wired cof-
fee machine model
Pixie C.
1) Steam cover
2) Pyramid plate
3) Brewing device
4) Thermoblock
5) Sound damper
6) Electronic control board
7) Water tank valve
8) Flow meter
9) Light guide (for capsule container)
10) Opening in the housing to store excess
lenght of power cord
11) Pump
12) Thermal cut off fuse
13) Magnetic mounting
2
3
4
7
8
9
11
12
6
10
13
1
5
