Pixie service manual
6
MAIN COMPONENTS
2 MAIN COMPONENTS

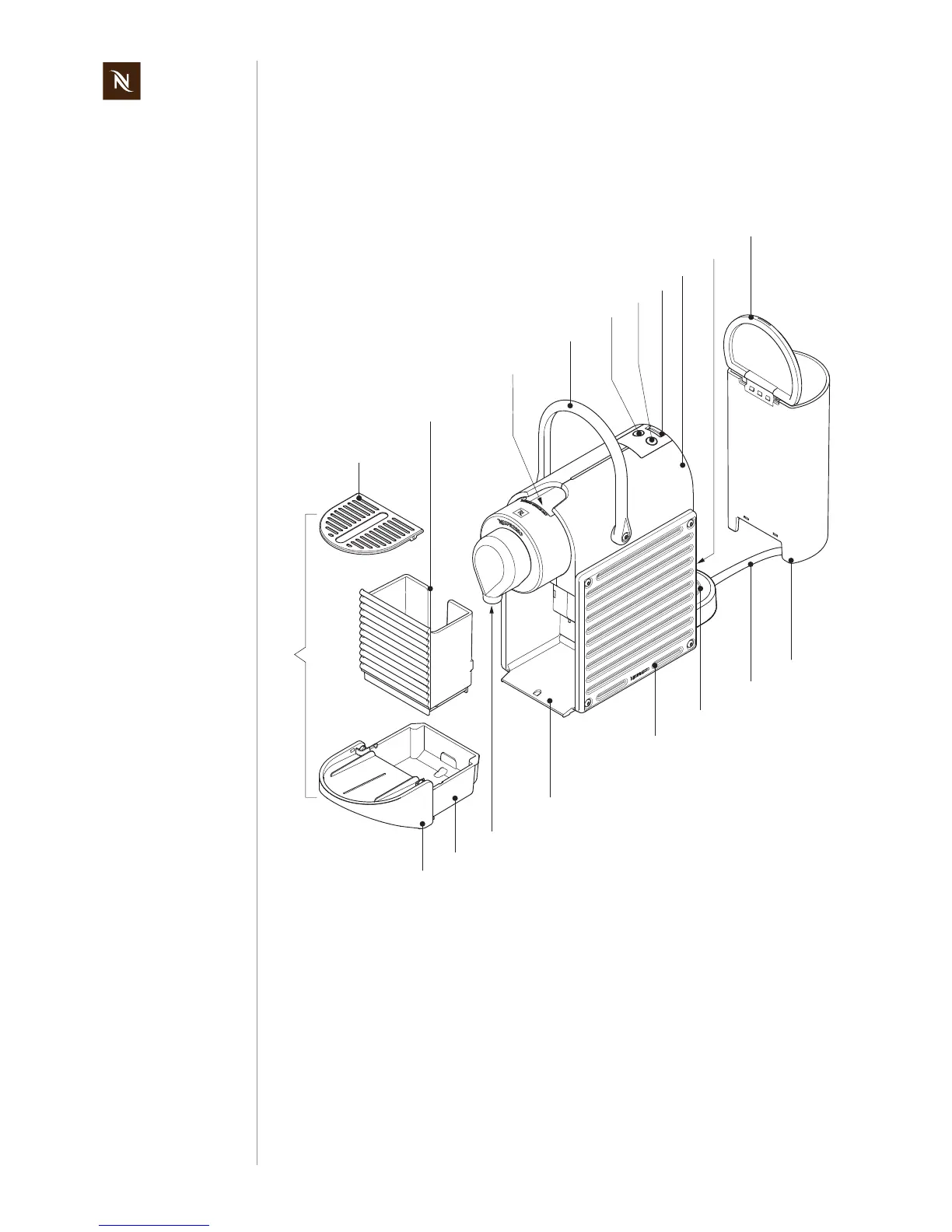

2.1 Overview
1) Drip grid
2) Capsule container for used capsules
(backlighted)
3) Feed opening for capsule
4) Closing handle
5) Coffee button "small cup" / "Espresso"
(backlighted)
6) Coffee button "large cup" / "Lungo"
(backlighted)
7) On/Off switch
8) Housing right
9) Water level detection
10) Water tank lid
11) Water tank
12) Power cord
13) Water tank connector
14) Side panel left/right
15) Housing left
16) Coffee outlet
17) Waste water container
18) Folding cup support
19) Maintenance unit
15
1
2
17
4
3
16
5
7
10
11
12
6
18
14
13
8
9
19
