Pixie service manual
63
REPAIRS

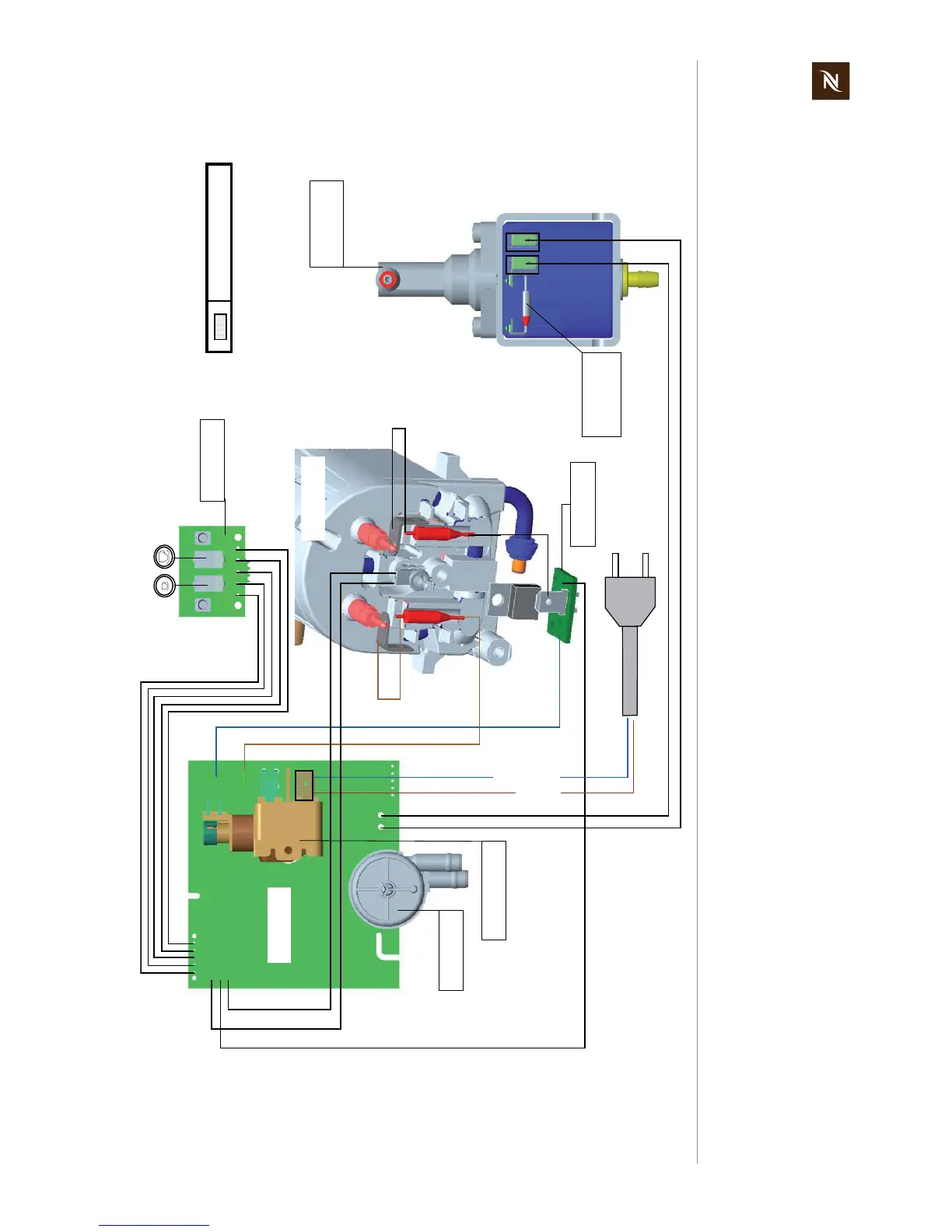

7.9.5 Wiring diagram 100 V IEC (Japan)
Small cup
On/Off Switch
Big cup
Flow Meter
Main PCB
MMI PCB
Triac PCB
167°C
Thermoblock
Neutral
Line
Pump
EN4 100-110V
Overheat
protection
167°C
Receptacle isolation
