Nespresso Pixie C - Pressure Gauge Adapter

Pixie service manual
66
FUNCTION TESTS
8.2.2 Pressure gauge adapter
This pressure gauge adapter is designed for the Pixie coffee machine.

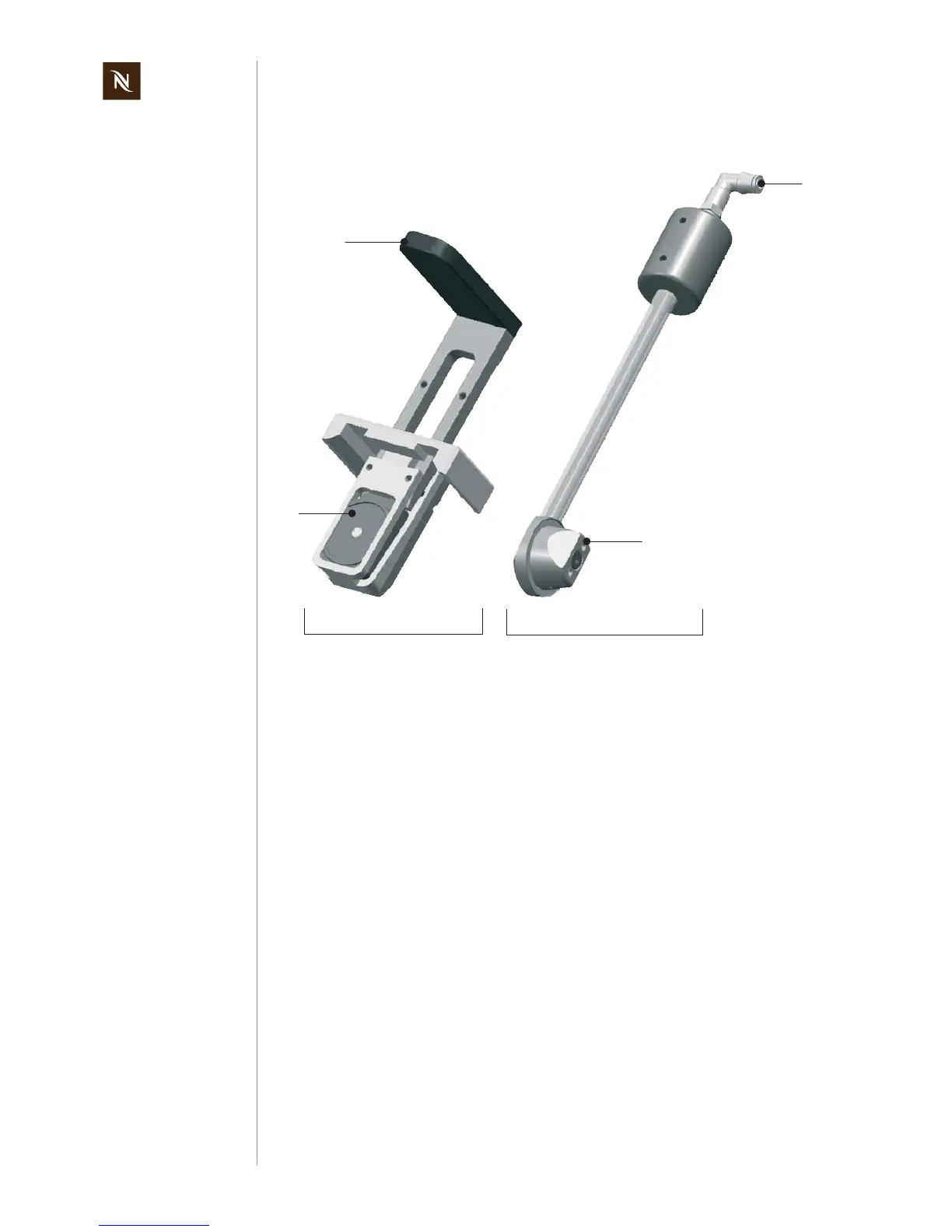

The pressure gauge adapter has 2 parts:
• A hand actuated lifting unit (1) to lock and seal the complete pressure gauge adapter
in the brewing unit.
• A seal carrier assembly (2) with a sealing cone that is inserted in the capsule cage
of the brewing unit.
1) Lifting unit
2) Seal carrier assembly
3) Operating lever
4) Fixation element
5) Quick action coupling for pressure
hose
6) Sealing cone
5
3
4
6
12
