Pixie service manual
60
REPAIRS

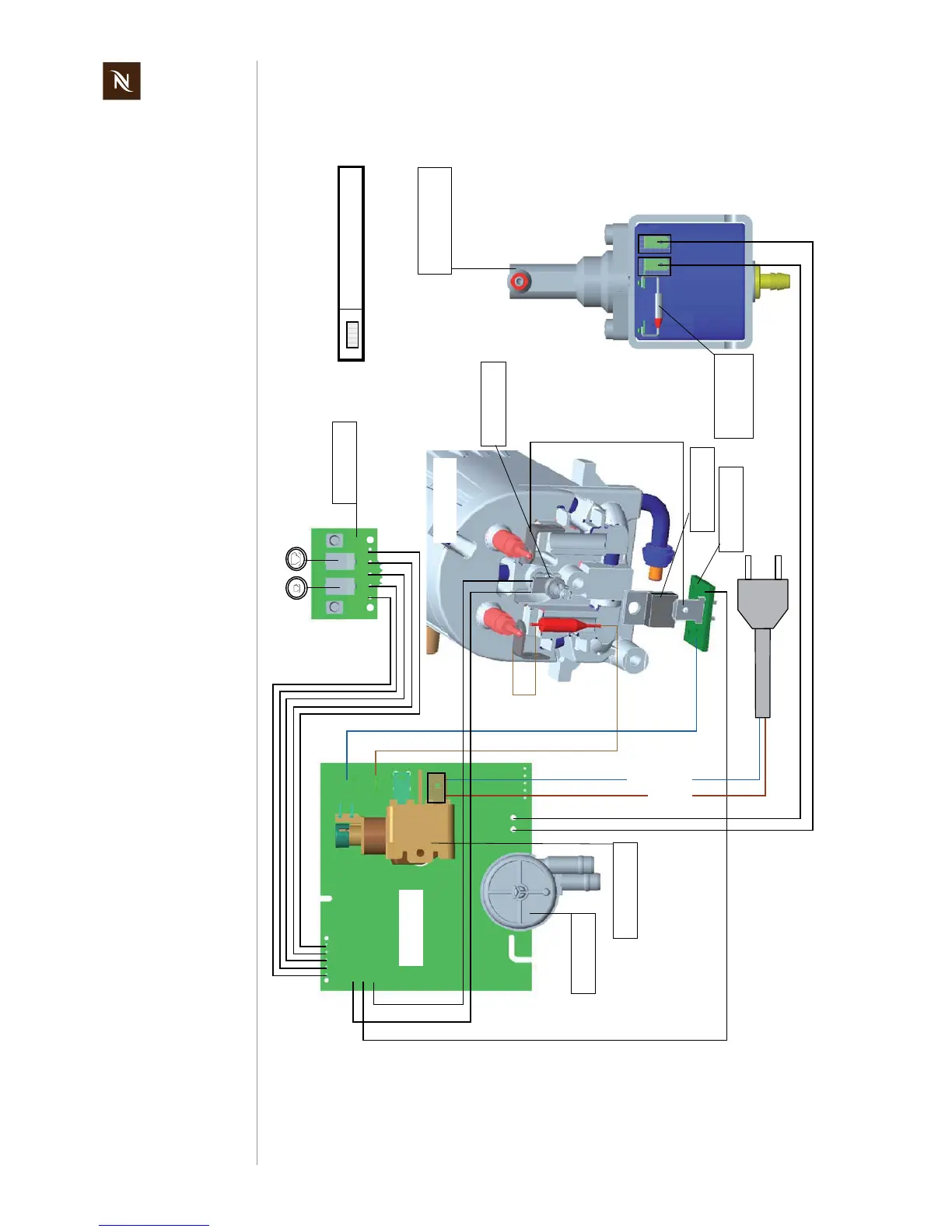

7.9.2 Wiring diagram 120 V UL (USA / Canada)
Small cup
On/Off Switch
Big cup
Flow Meter
Main PCB
MMI PCB
Triac PCB
167°C
Thermoblock
Neutral
Line
Pump
EN4 120-127V UL
Overheat
protection
Receptacle isolation
NTC
Triac
