REPAIRS
Assembly checkpoints
• Assemble spring (28) on pump support correctly.
• Sound damper (29) and connector clips (43) must always be replaced to prevent
leakage.
7.6 Replacing functional block

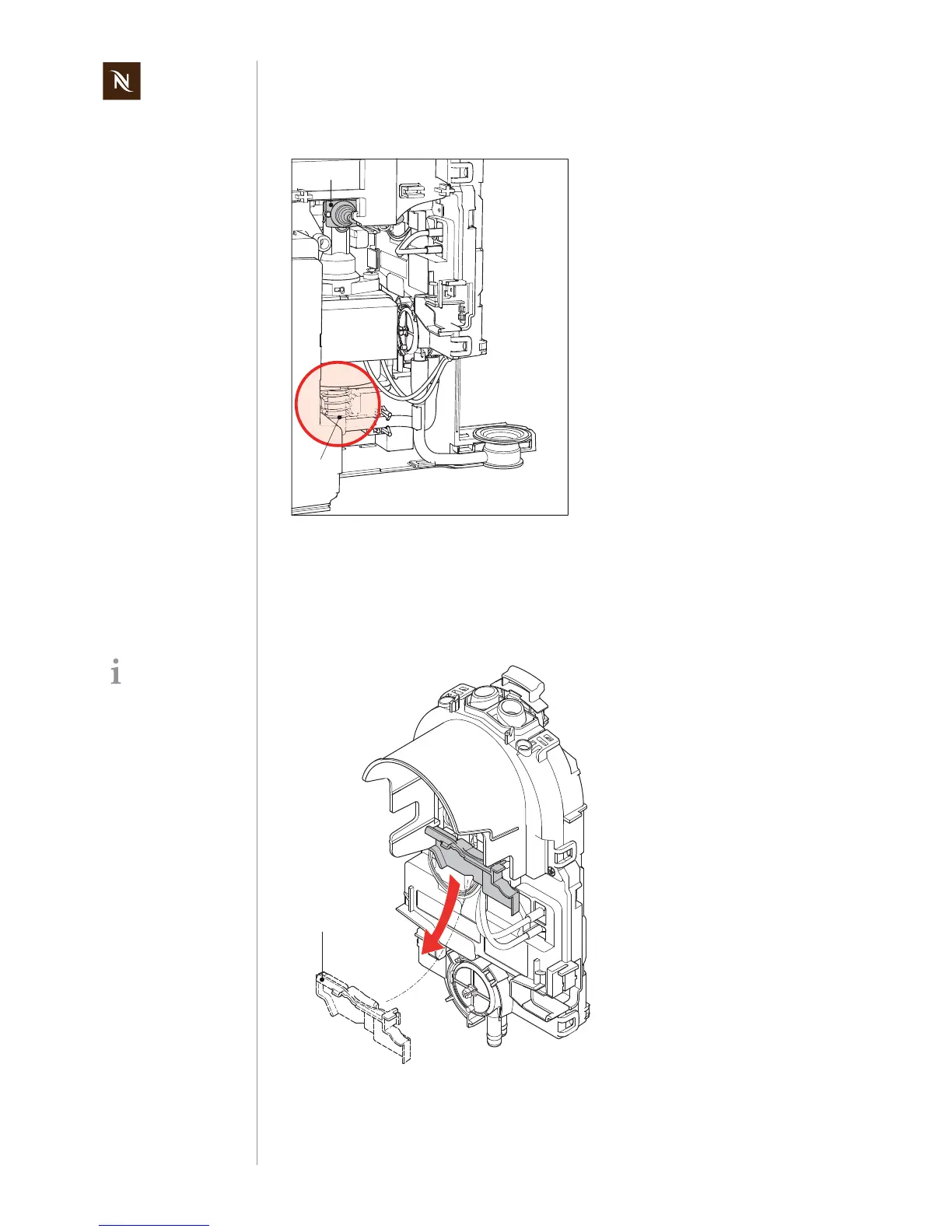

• Remove function block cap (25).
29+43
28
Brewing unit not
shown for better visi-
bility of function block
cap (25).
25
