Nespresso Pixie C - Water Circuit

Pixie service manual
9
MAIN COMPONENTS

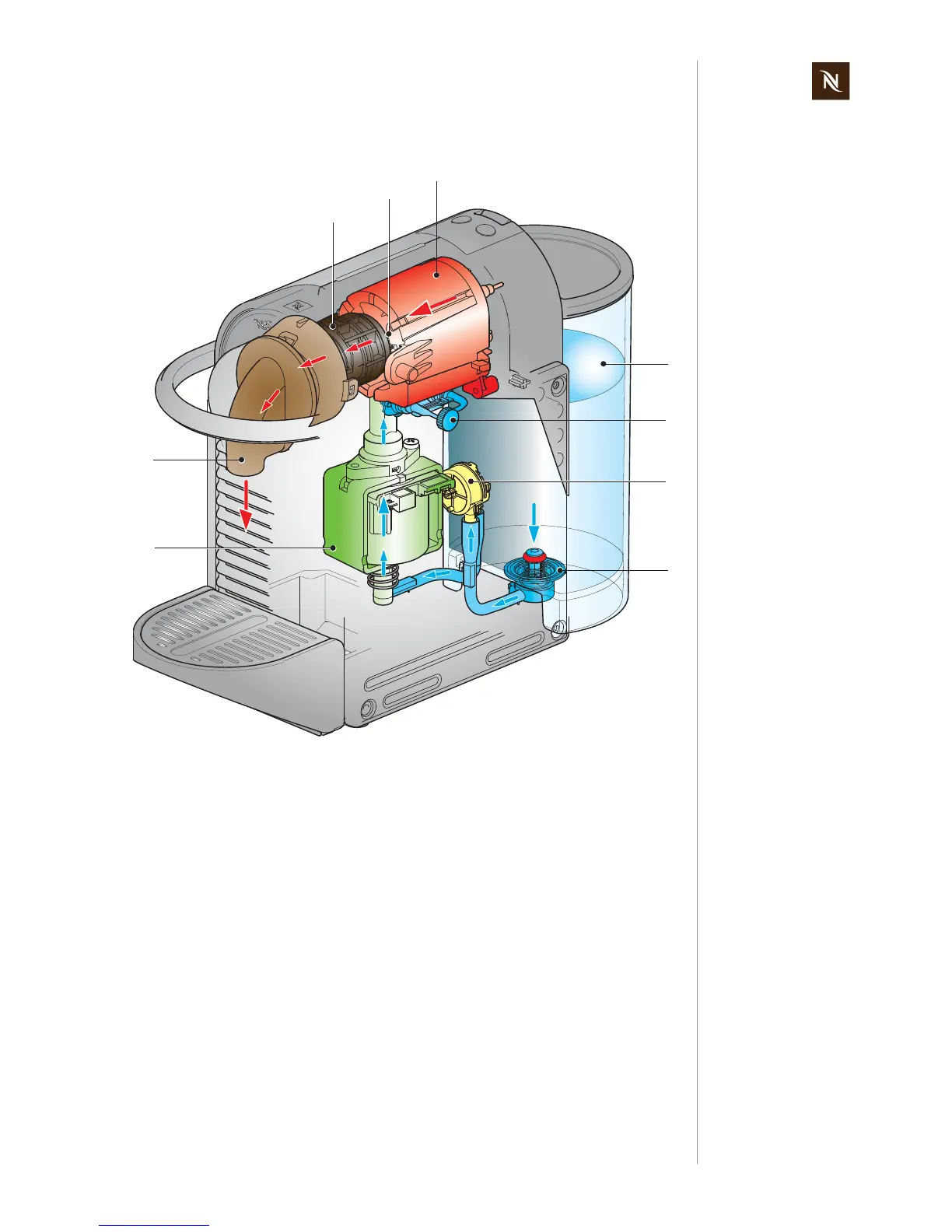

2.3.2 Water circuit
1) Pump
2) Coffee outlet
3) Brewing unit
4) Check valve
5) Thermoblock
6) Water tank
7) Sound damper
8) Flow meter
9) Water tank connector
3
5
4
2
1
6
7
8
