Pixie service manual
42
REPAIRS
•

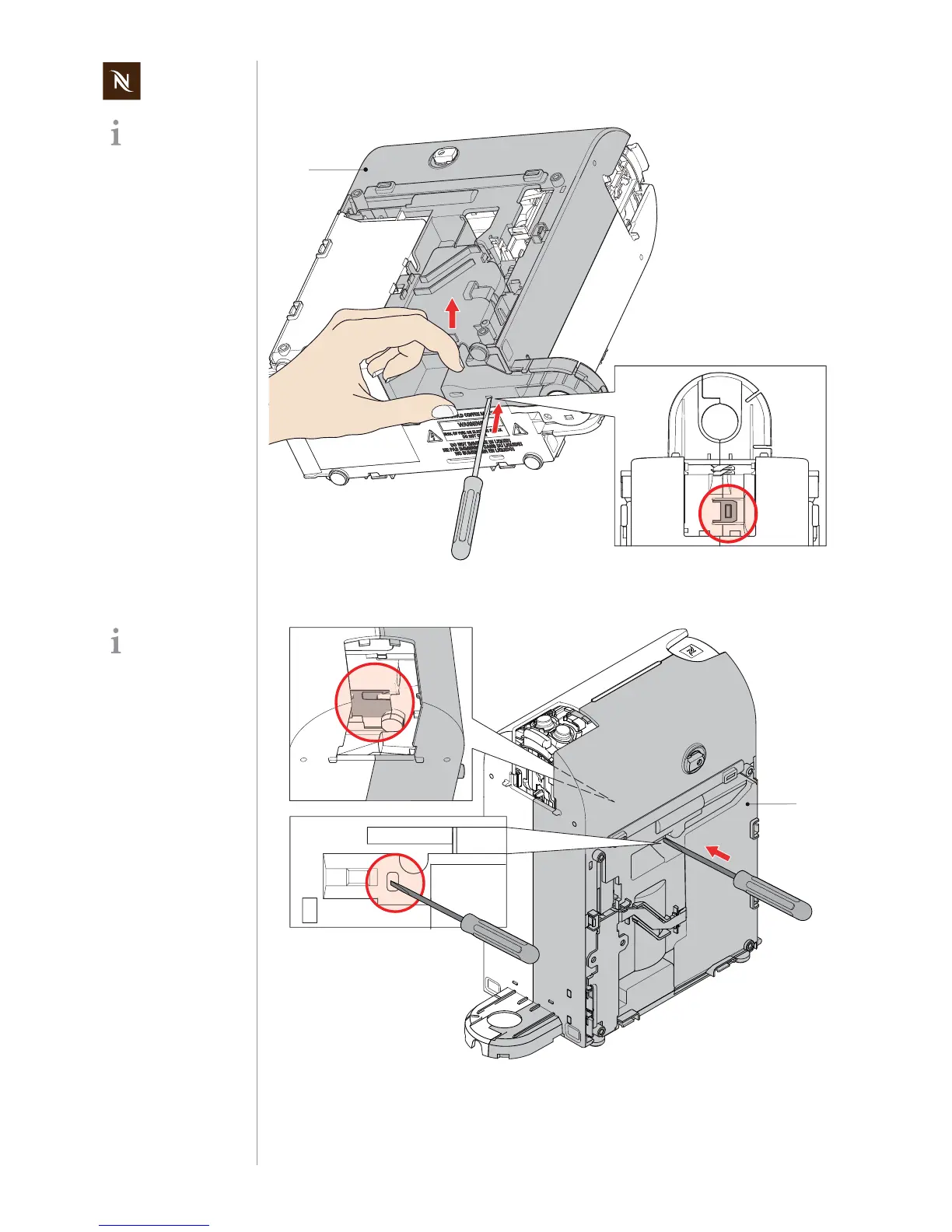

Press small screwdriver in opening. Lift housing right (2) simultaneously to release
latch.
•
Press in screwdriver to open latch. Lift housing right (2) simultaneously to release
latch.
Detail view is from
above, showing the
latch position inside
of housing.
2
Upper detail view is
through opening into
empty housing.
2
41
43
Table of Contents
Default Chapter
2
Table of Contents
2
1 General Safety Notes
5
2 Main Components
6
Overview
6
Interior View
7
Fluid System
8
Water Circuit Diagram
8
Water Circuit
9
3 Technical Data
10
Rating Plates
10
Examples of Brand Specific Rating Plates
10
Rating Plate Details (Example)
11
Technical Specifications
12
Dimensions and Weight
14
4 Operation
15
General Information
15
Status Indication
15
Machine Modes
16
Program/Reset Fill up Level
18
Programming the Fill up Level
18
Resetting the Fill up Level and Auto Shut off
19
Empty Water System
19
Program Auto Shut off Time
20
5 Maintenance
21
Descaling
21
Descaling Procedure
21
Cleaning Procedure
25
6 Troubleshooting
26
Check List
26
7 Repairs
28
Safety Instructions
28
Repair and Mounting Tips
28
Tools and Accessories
30
General Disassembly
31
Prepare Coffee Machine for Disassembly
31
Remove Side Panels
32
Remove Power Cord
33
Remove Water Guiding
35
Remove Damper Springs
36
Remove Closing Handle
37
Remove Cable Cover
37
Remove Right Light Guide
38
Remove Blind
39
10Remove Housing Right
39
11Remove Main Assembly
44
12Remove Front Ring
46
13Remove Key Caps of Push Buttons
47
Replacing Pump
48
Replacing Functional Block
50
Replacing Brewing Unit
52
Replacing Flow Meter
57
Wiring Diagrams
59
Wiring Diagram 220 V - 240 V IEC
59
Wiring Diagram 120 V UL (USA / Canada)
60
Wiring Diagram 127 V IEC (Brazil)
61
Wiring Diagram 127 V IEC (Mexico)
62
Wiring Diagram 100 V IEC (Japan)
63
Wiring Diagram 110 V IEC (Taiwan)
64
8 Function Tests
65
Safety Instructions
65
Required Equipment
65
Overview
65
Pressure Gauge Adapter
66
Mounting Pressure Gauge Adapter
67
Measure Flow Rate
68
Pressure and Leakage Checks
69
Preparations
70
Test Run
71
Measure Coffee Temperature
72
Protective Earth (PE) Continuity Test
74
What Is the Protective Earth Continuity Test about
74
General
74
Test Sequence
75
What to Do if the Protective Earth Continuity Test Fails
76
Protective Insulation Test
76
What Is the Protective Insulation Test about
76
General
76
Test Sequence
77
What to Do if the Insulation Test Fails
78
9 Explosion Drawings
79
EF 280 Explosion Drawing
79
EF 281 Explosion Drawing
80
10 Parts List
81
Nespresso EF 280 / C60 and EF 281 / D60
81
208 Turmix TX160 CH
83
281 Delonghi EN125 EU
84
280 Krups XN300510 EU
85
281 Magimix M110 EU/GB
86
281 Koenig D60 CH
87
11 Notes
88
