E2600 Controller-Drive Tray Installation Guide 35
1. Make sure that the cabinet is in the final location. Make sure that you meet the clearance requirements shown
in the following figure.

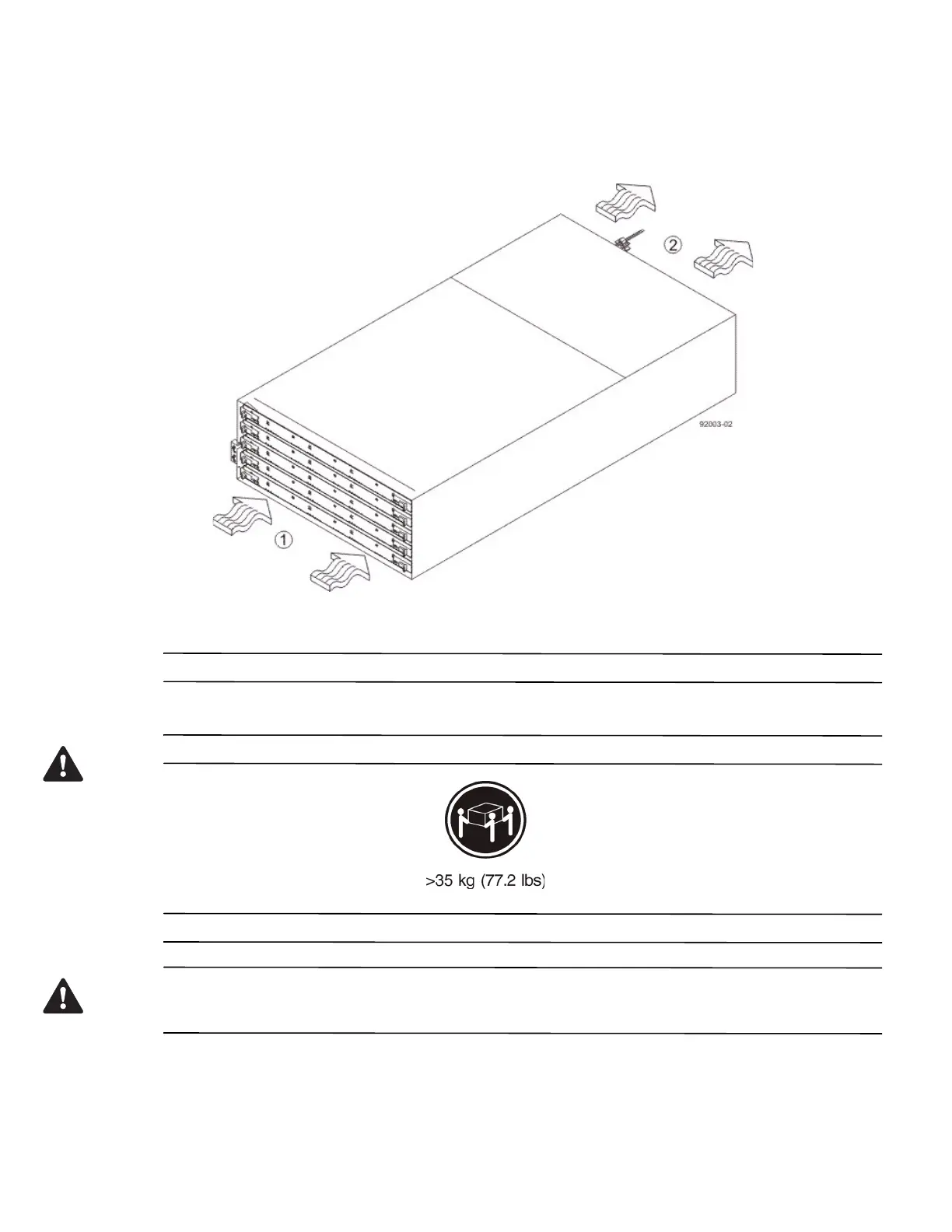

Figure 28 Controller-Drive Tray Airflow and Clearance Requirements
1. 81 cm (32 in.) clearance in front of the cabinet
2. 61 cm (24 in.) clearance behind the cabinet
NOTE Fans pull air through the controller-drive tray from front to back across the drives.
2. Lower the feet on the cabinet to keep the cabinet from moving.
WARNING (W09) Risk of bodily injury –
Three persons are required to safely lift the component.
WARNING (W15) Risk of bodily injury – An empty tray weighs approximately 56.7 kg (125 lb). Three persons
are required to safely move an empty tray. If the tray is populated with components, a mechanized lift is required to
safely move the tray.
