44 E2600 Controller-Drive Tray Installation Guide

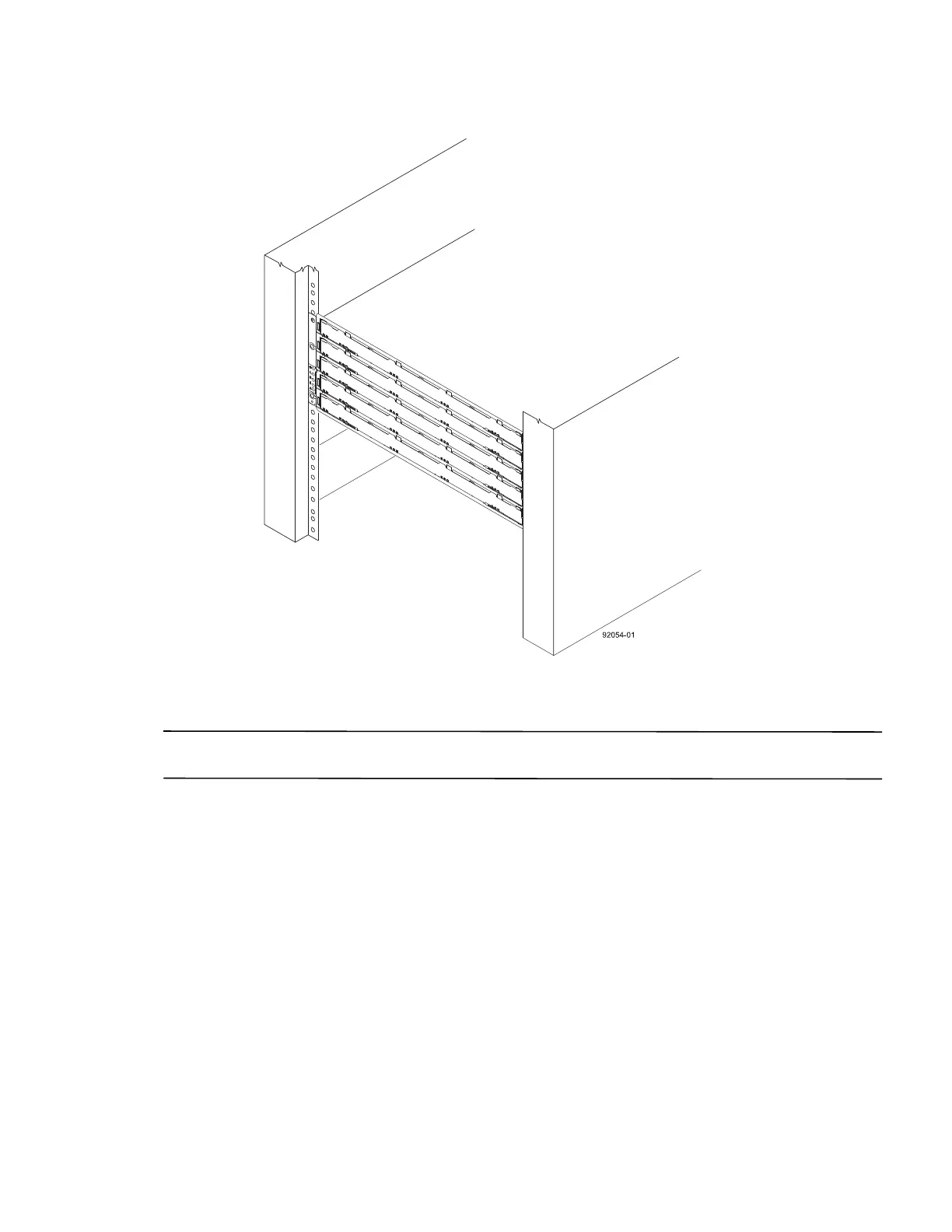

Figure 38 Controller-Drive Tray Installed in the Cabinet
15. Slide the fan canister all the way back into the drive tray until the tab on the fan canister latches.
16. Attach the bezel onto the front of the controller-drive tray.
NOTE If the E2660 controller-drive tray needs to have drives installed, refer to Steps to Install – Drives on the
DE6600 Drive Tray on page 77.
