56 E2600 Controller-Drive Tray Installation Guide
1. Make sure that the cabinet is in the final location. Make sure that you meet the clearance requirements shown
in the following two figures.

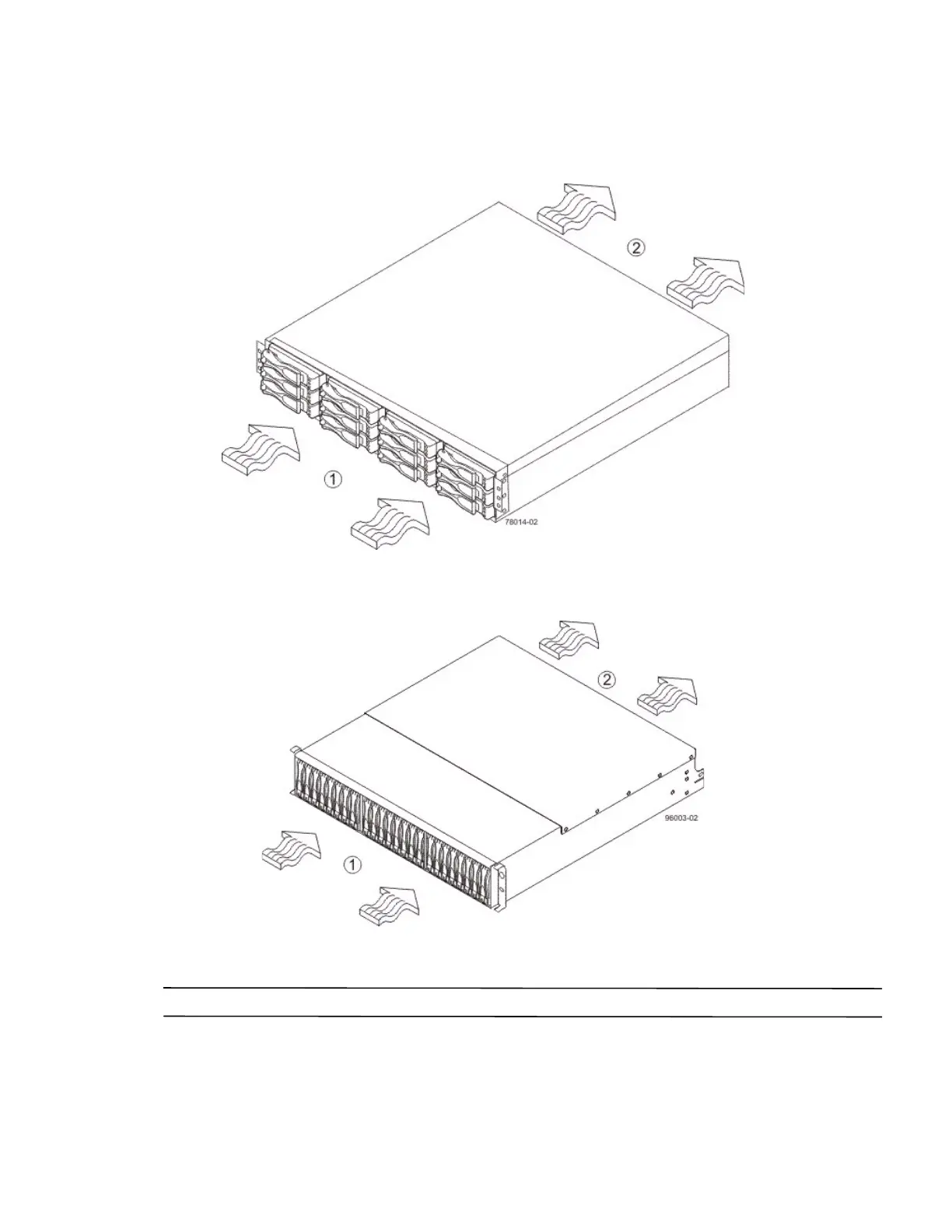

Figure 48 DE1600 Drive Tray Airflow and Clearance Requirements
1. 76 cm (30 in.) clearance in front of the cabinet
2. 61 cm (24 in.) clearance behind the cabinet
Figure 49 DE5600 Drive Tray Airflow and Clearance Requirements
1. 76 cm (30 in.) clearance in front of the cabinet
2. 61 cm (24 in.) clearance behind the cabinet
NOTE Fans pull air through the tray from front to back across the drives.
2. Lower the feet on the cabinet to keep the cabinet from moving.
3. Remove the drive tray and all contents from the shipping carton.
