E2600 Controller-Drive Tray Installation Guide 57
4. Position the mounting rails in the cabinet.

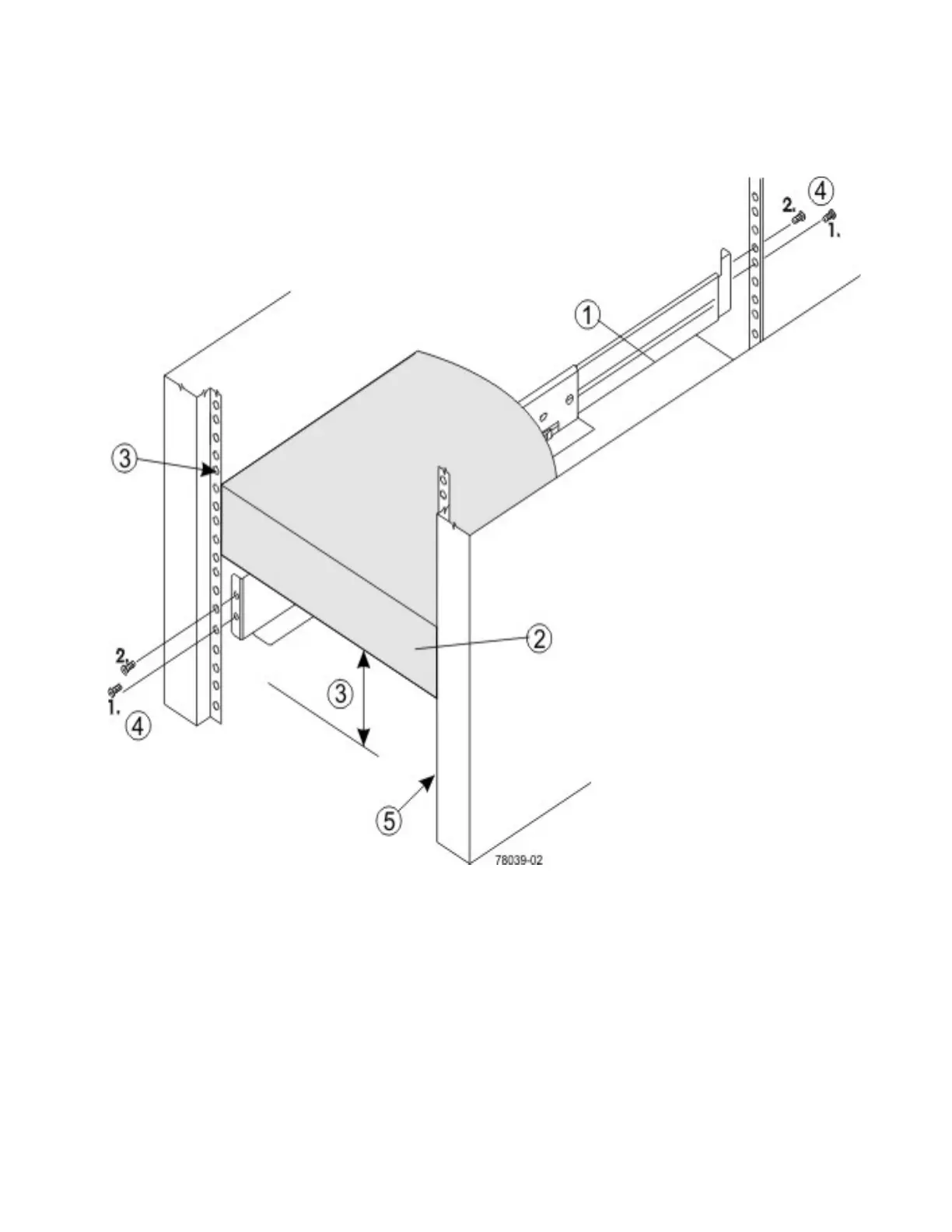

Figure 50 Positioning the Mounting Rails in the Cabinet
1. Mounting Rail
2. Existing Tray
3. Clearance Above and Below the Existing Tray
4. Screws for Securing the Mounting Rail to the Cabinet (Front and Rear)
5. Industry Standard Cabinet
— If you are installing the mounting rails above an existing tray, position the mounting rails directly above
the tray.
— If you are installing the mounting rails below an existing tray, allow 8.8-cm (3.5-in.) vertical clearance for
the drive tray.
