5. Attach the mounting rails to the cabinet by performing these substeps:
a. Make sure that the adjustment screws on the mounting rail are loose so that the mounting rail can
extend or contract as needed.

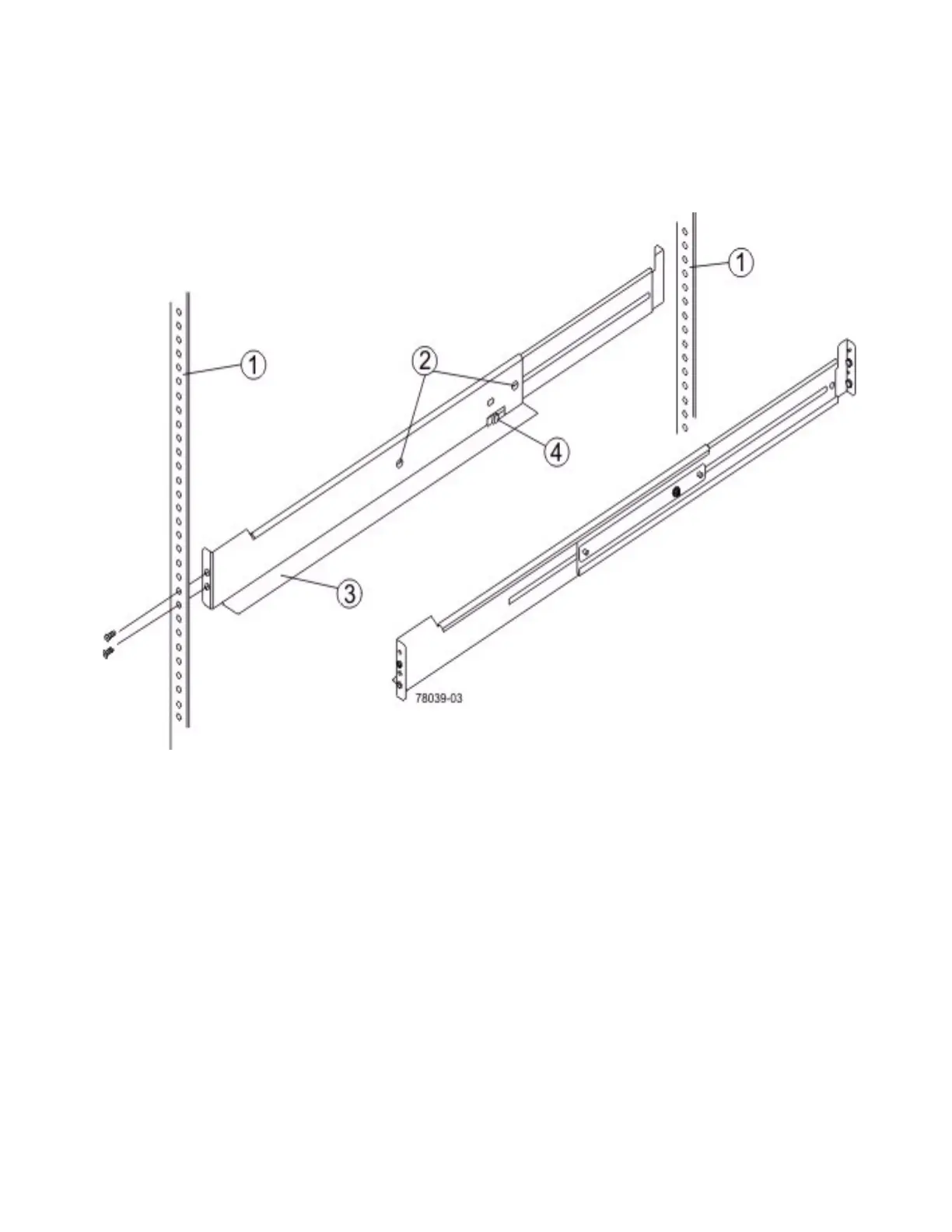

Figure 51 Attaching the Mounting Rails to the Cabinet
1. Cabinet Mounting Holes
2. Adjustment Screws for Locking the Mounting Rail Length
3. Mounting Rails
4. Clip for Securing the Rear of the Drive Tray
b. Place the mounting rail inside the cabinet, and extend the mounting rail until the flanges on the
mounting rail touch the inside of the cabinet.
