E2600 Controller-Drive Tray Installation Guide 63
9. Attach the plastic end caps onto the front of the drive tray.
a. Put the top of the end cap on the hinge tab that is part of the drive tray mounting flange.
b. Gently press on the bottom of the end cap until it snaps into place over the retainer on the bottom of
the drive tray mounting flange.

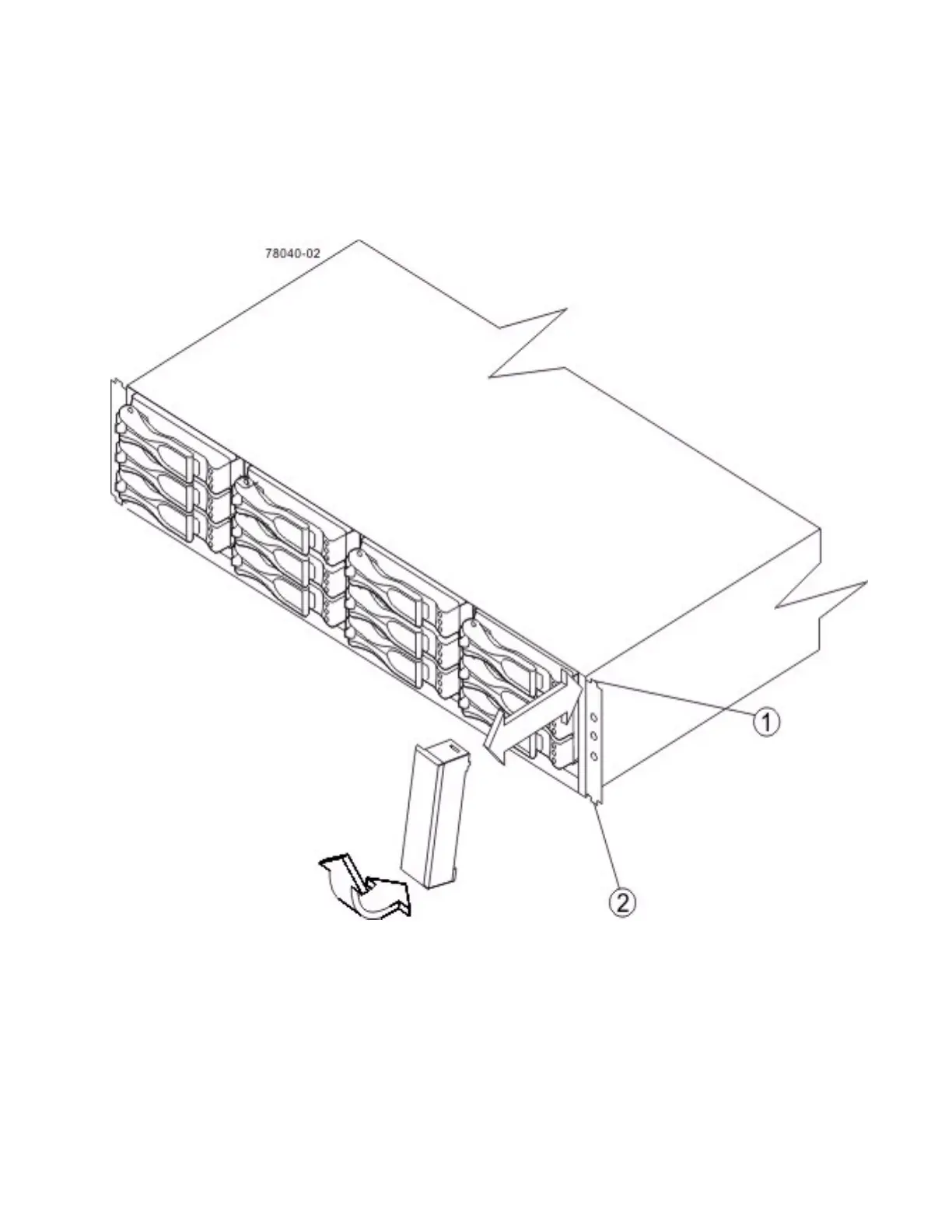

Figure 56 Attaching the End Caps to the DE1600 Drive Tray
1. Hinge Tab
2. Retainer
