62 E2600 Controller-Drive Tray Installation Guide

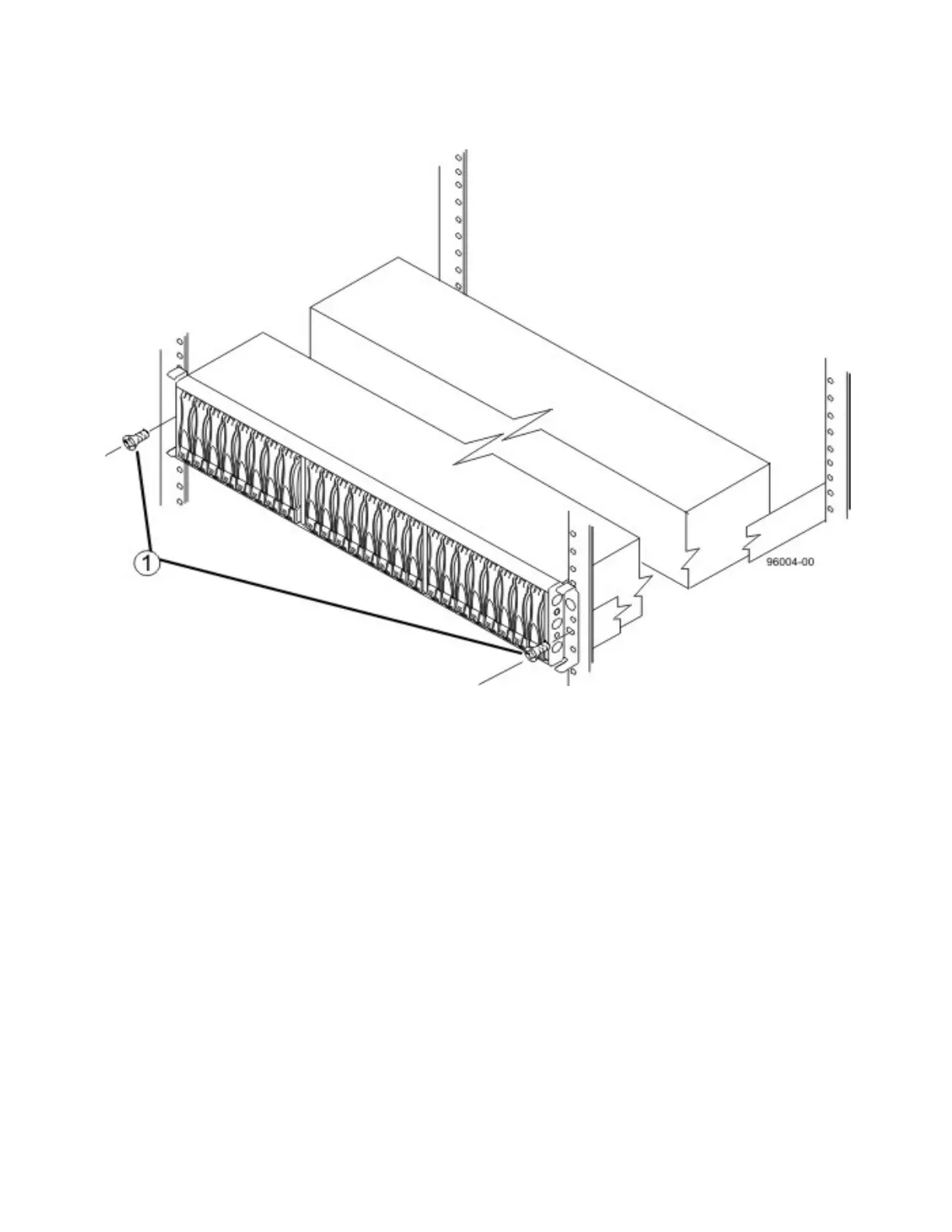

Figure 55 Attaching the Front of the DE5600 Drive Tray
1. Screws for Securing the Front of the Drive Tray
8. Secure the side of the drive tray to the mounting rails by performing these substeps:
a. Insert one M5 screw through the side sheet metal of the drive tray into the captured nut on the side of
the mounting rail. Tighten the screw.
b. Repeat substep a for the other side.
