7. Secure the front of the drive tray to the cabinet. Use the two screws to attach the flange on each side of the front
of the drive tray to the mounting rails.
a. Insert one M5 screw through the bottom hole of a flange on the drive tray so that the screw goes
through the cabinet rail and engages the bottom captured nut in the mounting rail. Tighten the screw.
b. Repeat substep a for the second flange.

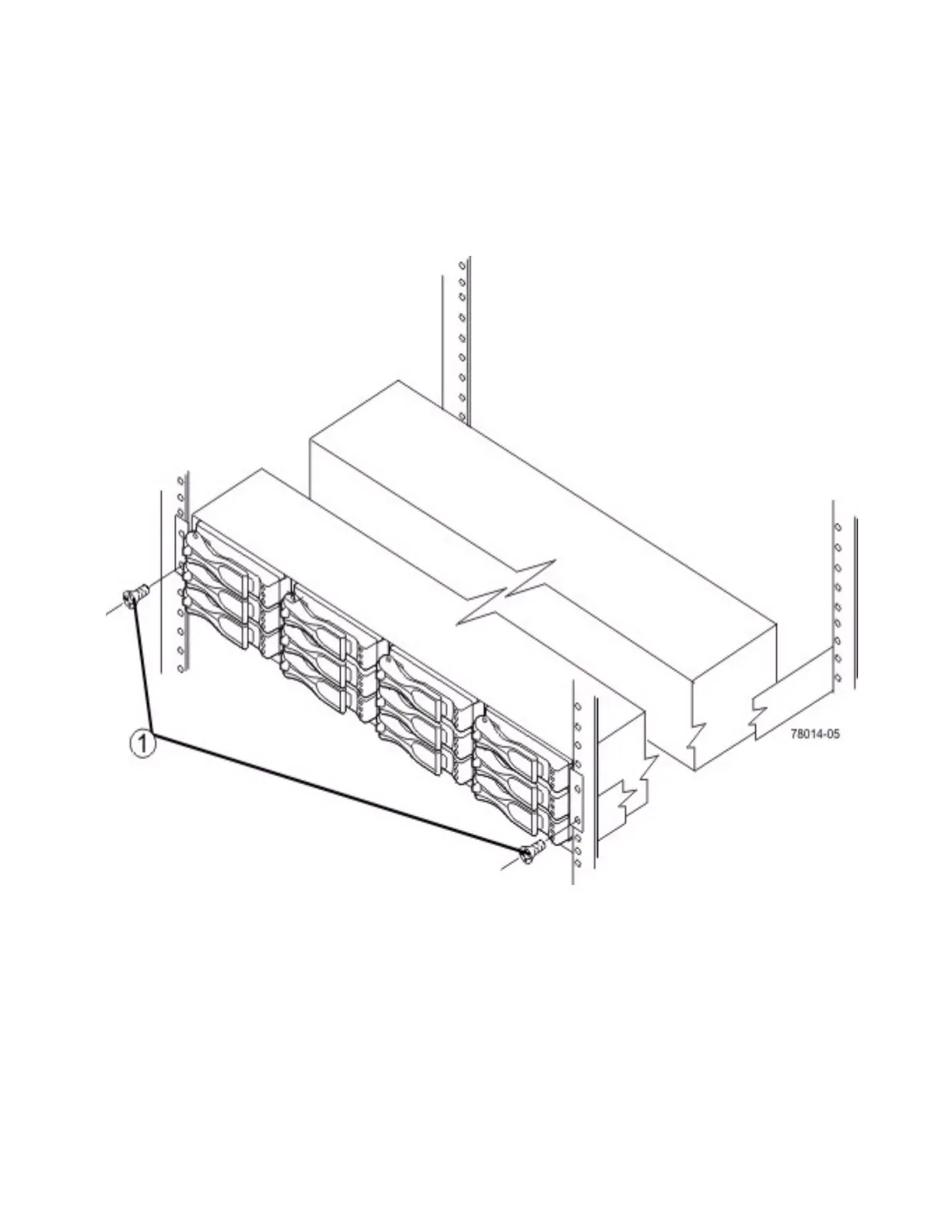

Figure 54 Attaching the Front of the DE1600 Drive Tray
1. Screws for Securing the Front of the Drive Tray
