68 E2600 Controller-Drive Tray Installation Guide
2. Lower the feet on the cabinet to keep the cabinet from moving.
WARNING (W09) Risk of bodily injury –
Three persons are required to safely lift the component.
WARNING (W15) Risk of bodily injury – An empty tray weighs approximately 56.7 kg (125 lb). Three persons
are required to safely move an empty tray. If the tray is populated with components, a mechanized lift is required to
safely move the tray.

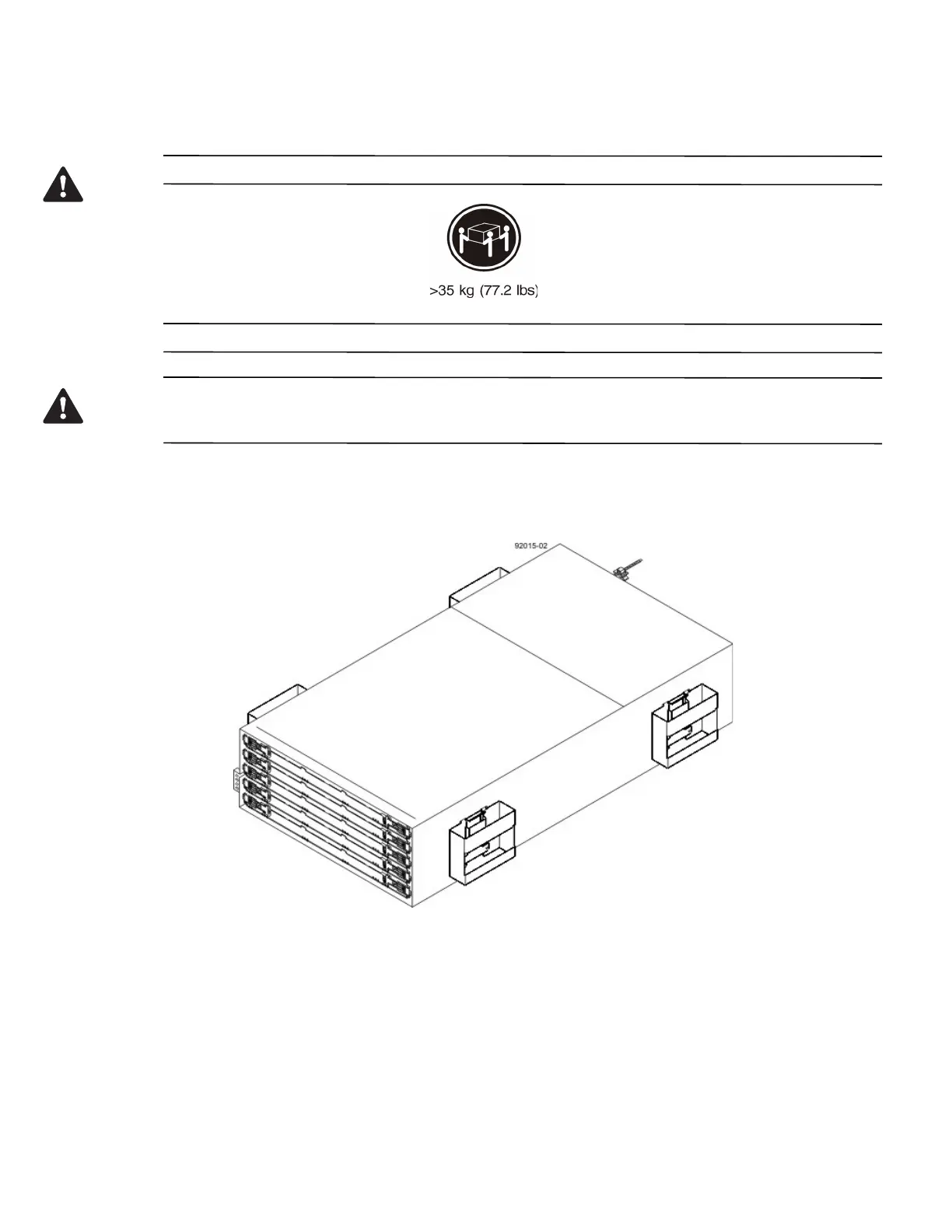

3. With the help of at least two other persons, remove the drive tray and all of the contents from the shipping
carton, using the four drive tray handles (two to a side) as shown in the following figure. Set the drive tray
aside.
Figure 61 DE6600 Drive Tray with Drive Tray Handles (Two on Each Side)
