E2600 Controller-Drive Tray Installation Guide 69
4. Position the mounting rails in the cabinet.

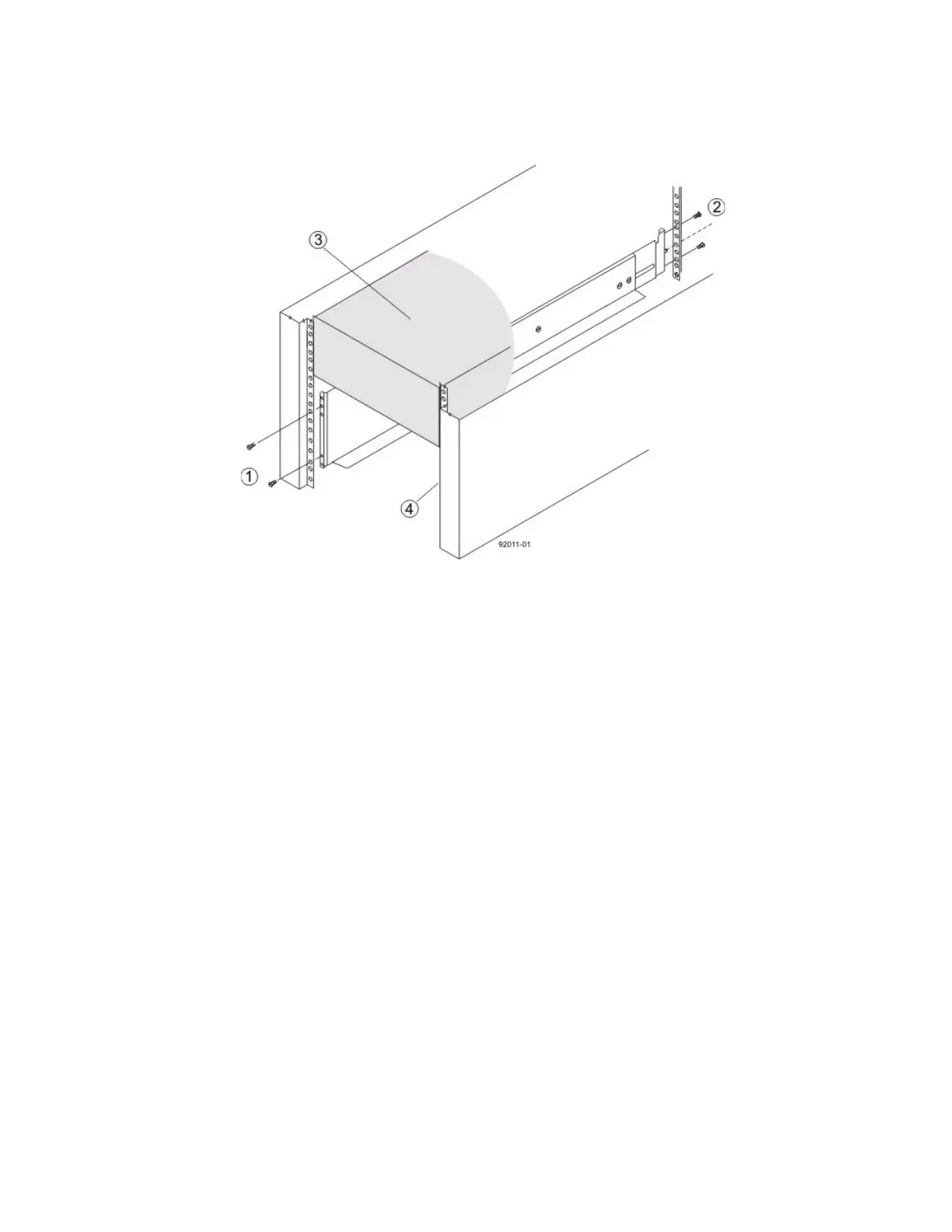

Figure 62 Positioning the Mounting Rails in the Cabinet
1. Screws for Securing the Mounting Rail to the Cabinet (Front)
2. Screws for Securing the Mounting Rail to the Cabinet (Rear)
3. Existing Tray
4. Industry Standard Cabinet
— If you are installing the mounting rails above an existing tray, position the mounting rails directly above
the tray.
— If you are installing the mounting rails below an existing tray, allow 17.8-cm (7-in.) vertical clearance for
a DE6600 drive tray.
5. To attach the mounting rails to the cabinet, do one of
the following:
— If you are using the long fixed size mounting rails, go to step 6.
— If you are using the shorter adjustable mounting rails, go to step 7.
6. To attach the long mounting rails to the cabinet, perform these substeps:
a. M
ake sure that the adjustment screws on the mounting rail are loose so that the mounting rail can
extend or contract as needed.
