78 E2600 Controller-Drive Tray Installation Guide

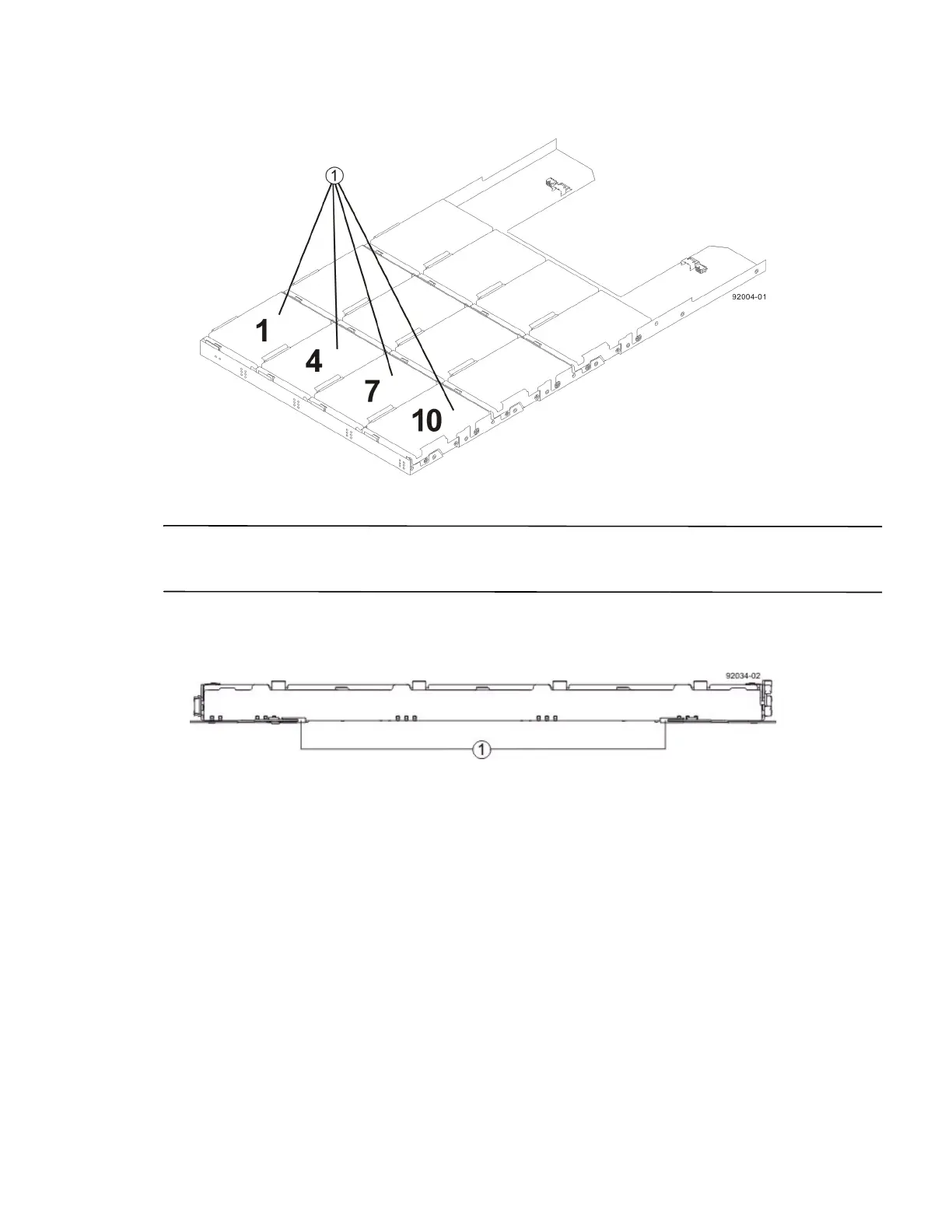

1. DE6600 Drive Tray with Slots 1, 4, 7, and 10
ATTENTION Risk of equipment malfunction – For the DE6600 drive tray, you can replace only one canister or
drive at a time. Refer to the “Replacing a Drive on the DE6600 Drive tray” instructions on the Software and
Documentation DVD, and make sure you have the replacement drive in hand before starting the task.
1. Beginning with the top drawer in the drive tray, release the levers on each side of the drawer by pulling both
towards the center.
Figure 71 Levers on the Drive Drawer
1. Levers to Release the Drive Drawer
2. Pull on the extended levers to pull the drive drawer out to its full extension without removing it from the drive
tray.
