For ports D and E, connect two SFP28/SFP+ cables or transceivers for shared management, virtual
machines, and storage connectivity.
(Optional, recommended) Connect a CAT5e cable in the IPMI port for out-of-band management
connectivity.

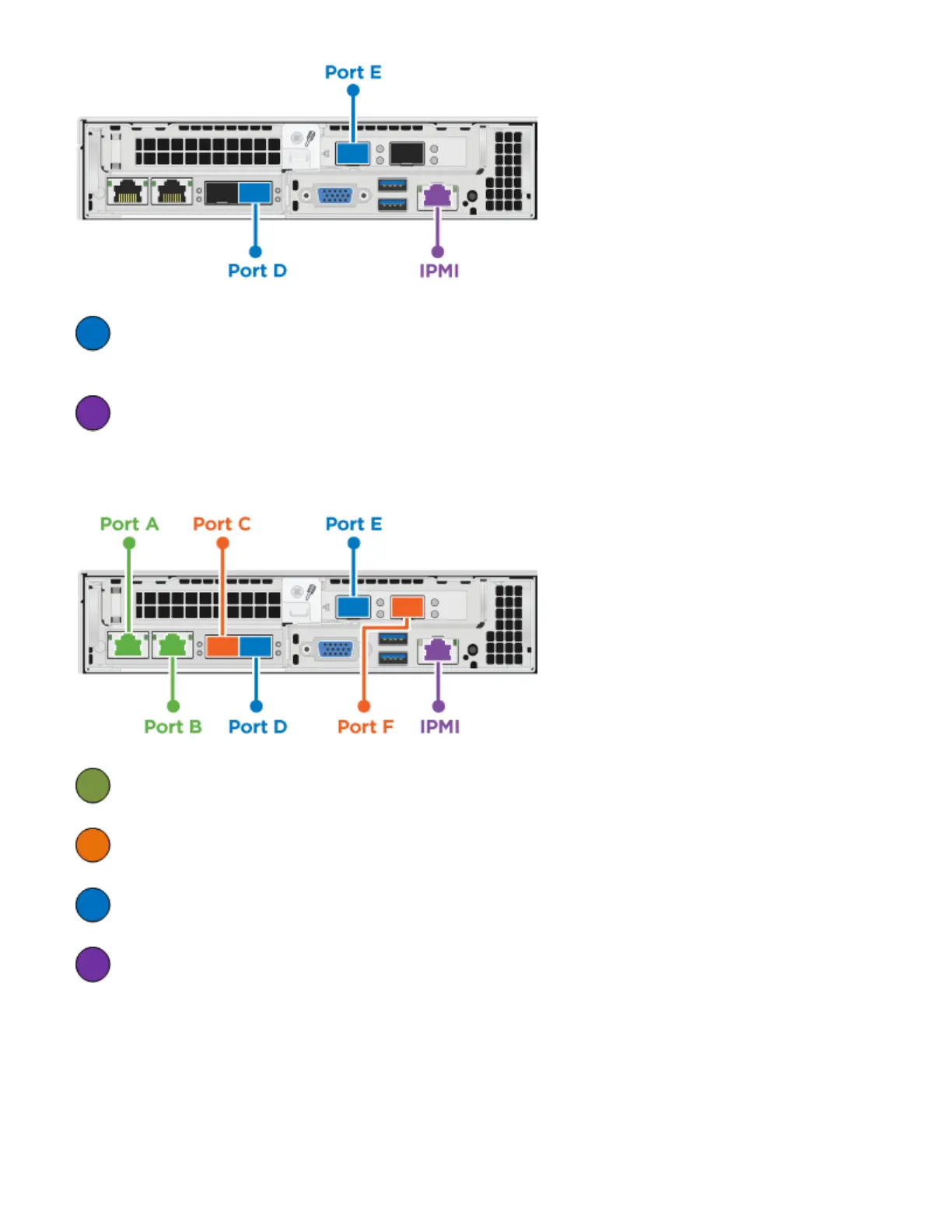

Here is the six-cable configuration:
For ports A and B, connect two CAT5e or higher cables in ports A and B for management connectivity.
For ports C and F, connect two SFP28/SFP+ cables or transceivers for virtual machine connectivity.
For ports D and E, connect two SFP28/SFP+ cables or transceivers for storage connectivity.
(Optional, recommended) Connect a CAT5e cable in the IPMI port for out-of-band management
connectivity.
Here is the cabling for the H410S node:
