Reference Manual for the ProSafe VPN Firewall FVS318v3
Basic Virtual Private Networking 5-7
January 2005

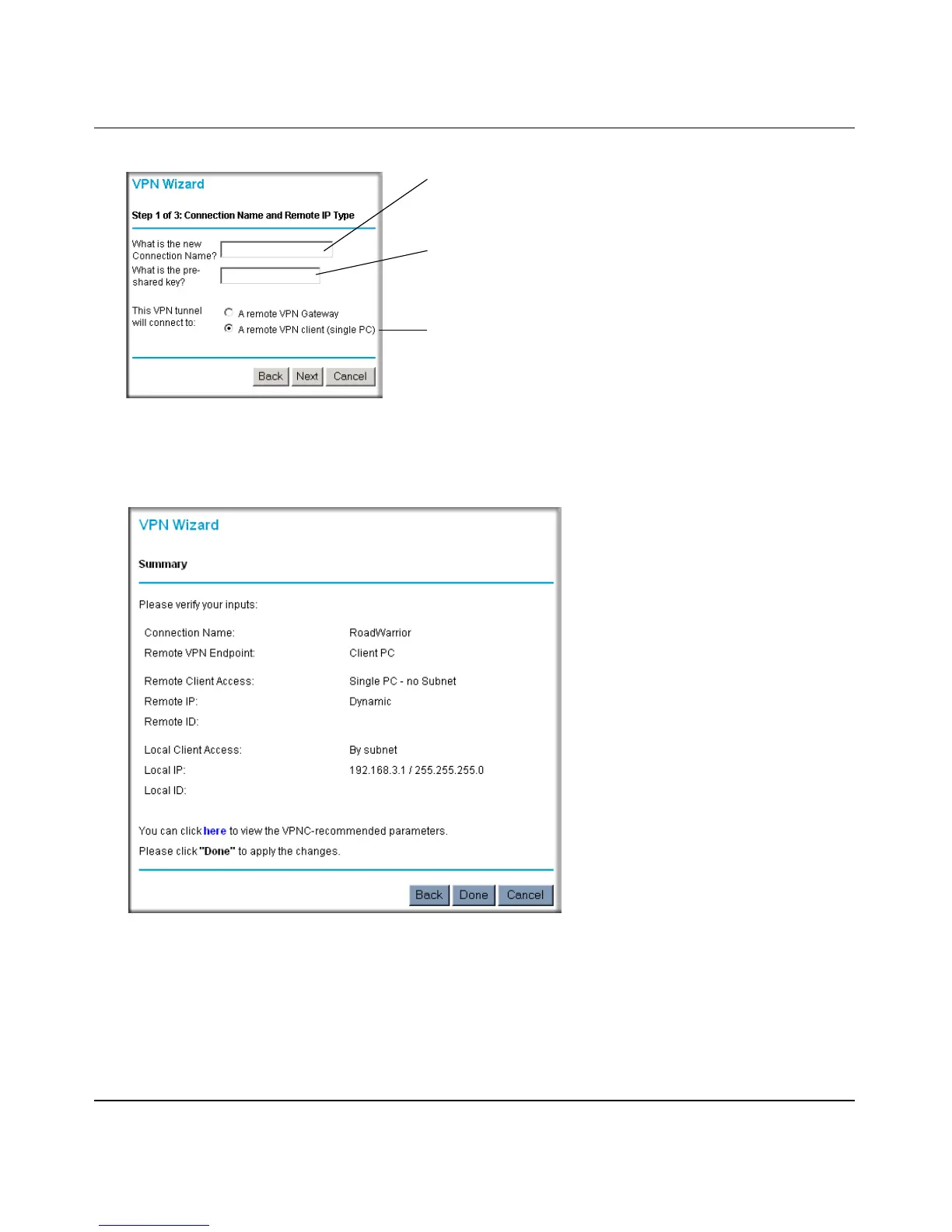

Figure 5-5: Connection Name and Remote IP Type
The Summary screen below displays.
Figure 5-6: VPN Wizard Summary
Enter the new Connection Name:
(RoadWarrior in this example)
Enter the pre-shared key:
(12345678 in this example)
Select the radio button:
A remote VPN client (single PC)
