Reference Manual for the ProSafe VPN Firewall FVS318v3
5-8 Basic Virtual Private Networking
January 2005

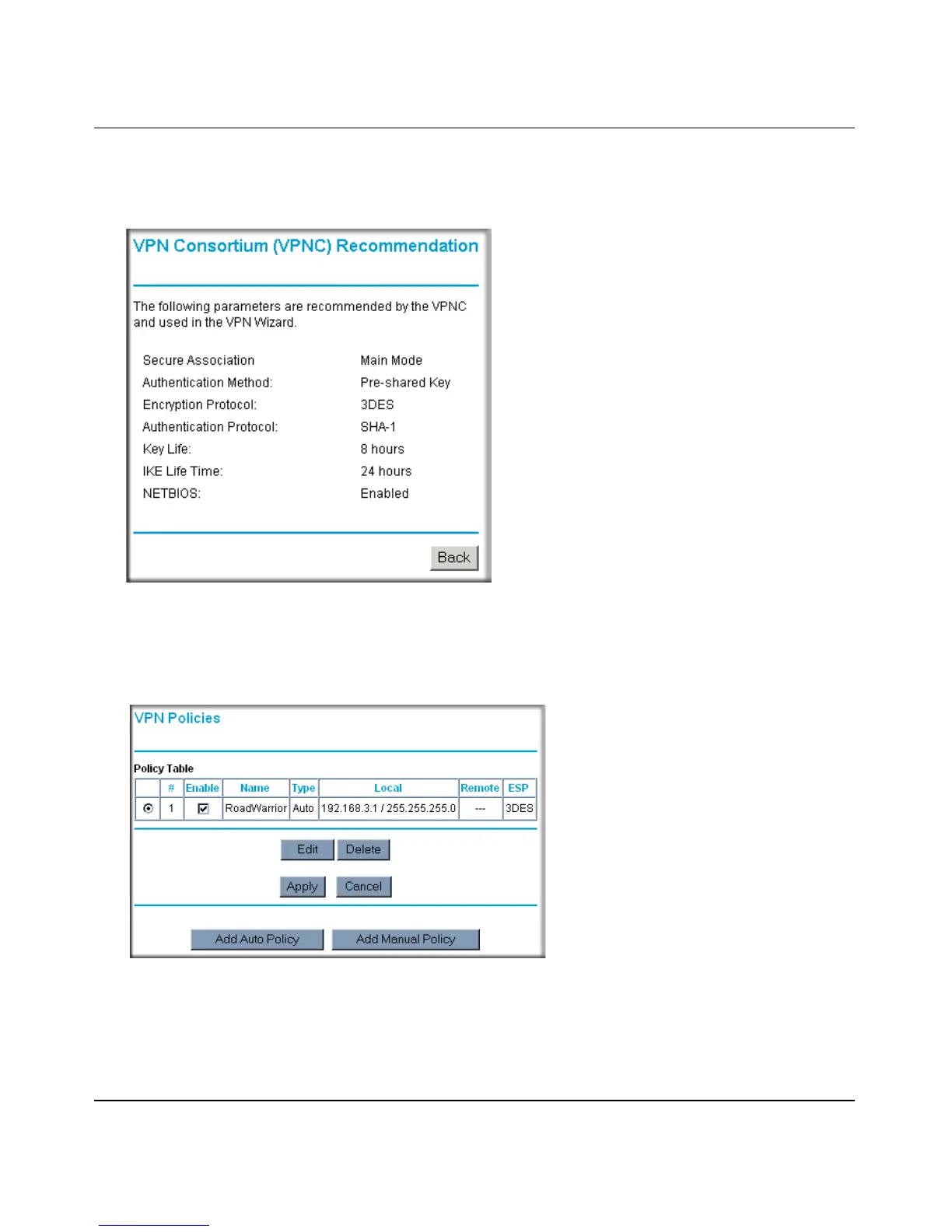

To view the VPNC recommended authentication and encryption settings used by the VPN
Wizard, click the here link (see Figure 5-6). Click Back to return to the Summary screen.
Figure 5-7: VPNC Recommended Settings
3.
Click Done on the Summary screen (see Figure 5-6) to complete the configuration procedure.
The VPN Policies menu below displays showing that the new tunnel is enabled.
Figure 5-8: VPN Policies
To view or modify the tunnel settings, select the radio button next to the tunnel entry and click
Edit.

NETGEAR FVS318 - ProSafe VPN Firewall Router Specifications

General

Model	FVS318
Category	Firewall
WAN Ports	1
LAN Ports	8
VPN Pass-through	Yes
VPN Tunnels	8
SPI Firewall	Yes
Data Link Protocol	Ethernet, Fast Ethernet
VPN Protocol	IPSec
Compliant Standards	IEEE 802.3, IEEE 802.3u
RAM	8 MB
Flash Memory	4 MB
Power Supply	External power adapter
Network / Transport Protocol	TCP/IP, UDP
Encryption Algorithm	3DES
Features	NAT support, URL filtering, DHCP server, DoS attack prevention
Status Indicators	Port status, power
