NETGEAR FVS318 - ProSafe VPN Firewall Router User Manual

Reference Manual for the ProSafe VPN Firewall FVS318v3
5-10 Basic Virtual Private Networking
January 2005
b.
From the Edit menu of the Security Policy Editor, click Add, then Connection. A “New
Connection” listing appears in the list of policies. Rename the “New Connection” so that it
matches the Connection Name you entered in the VPN Settings of the FVS318v3 on
LAN A.
Note: In this example, the Connection Name used on the client side of the VPN tunnel is
NETGEAR_VPN_router and it does not have to match the RoadWarrior Connection
Name used on the gateway side of the VPN tunnel (see Figure 5-5) because Connection
Names are unrelated to how the VPN tunnel functions.
Tip: Choose Connection Names that make sense to the people using and administrating
the VPN.

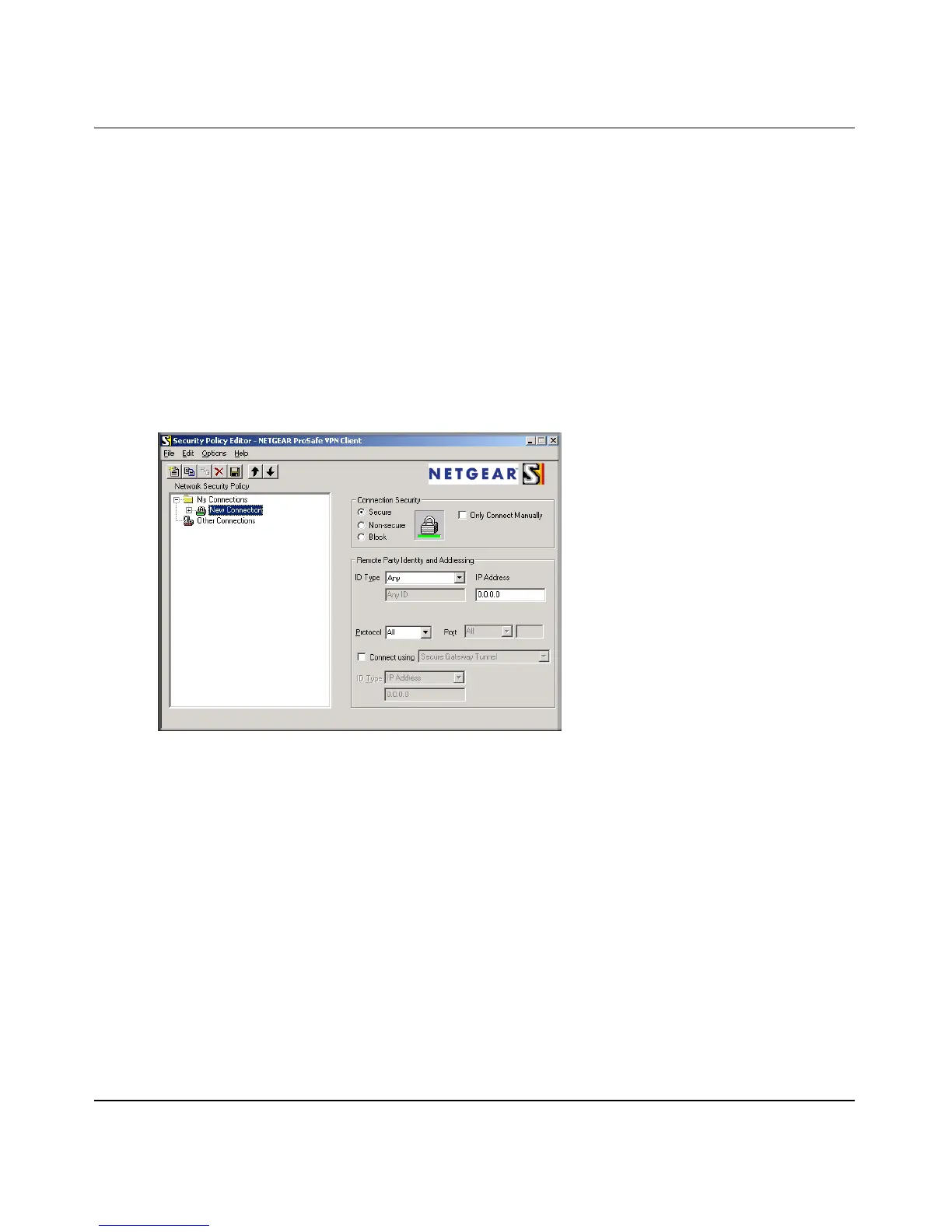

Figure 5-9: Security Policy Editor new connection

NETGEAR FVS318 - ProSafe VPN Firewall Router Specifications

General

Model	FVS318
Category	Firewall
WAN Ports	1
LAN Ports	8
VPN Pass-through	Yes
VPN Tunnels	8
SPI Firewall	Yes
Data Link Protocol	Ethernet, Fast Ethernet
VPN Protocol	IPSec
Compliant Standards	IEEE 802.3, IEEE 802.3u
RAM	8 MB
Flash Memory	4 MB
Power Supply	External power adapter
Network / Transport Protocol	TCP/IP, UDP
Encryption Algorithm	3DES
Features	NAT support, URL filtering, DHCP server, DoS attack prevention
Status Indicators	Port status, power
