Reference Manual for the ProSafe VPN Firewall FVS318v3
Basic Virtual Private Networking 5-11
January 2005

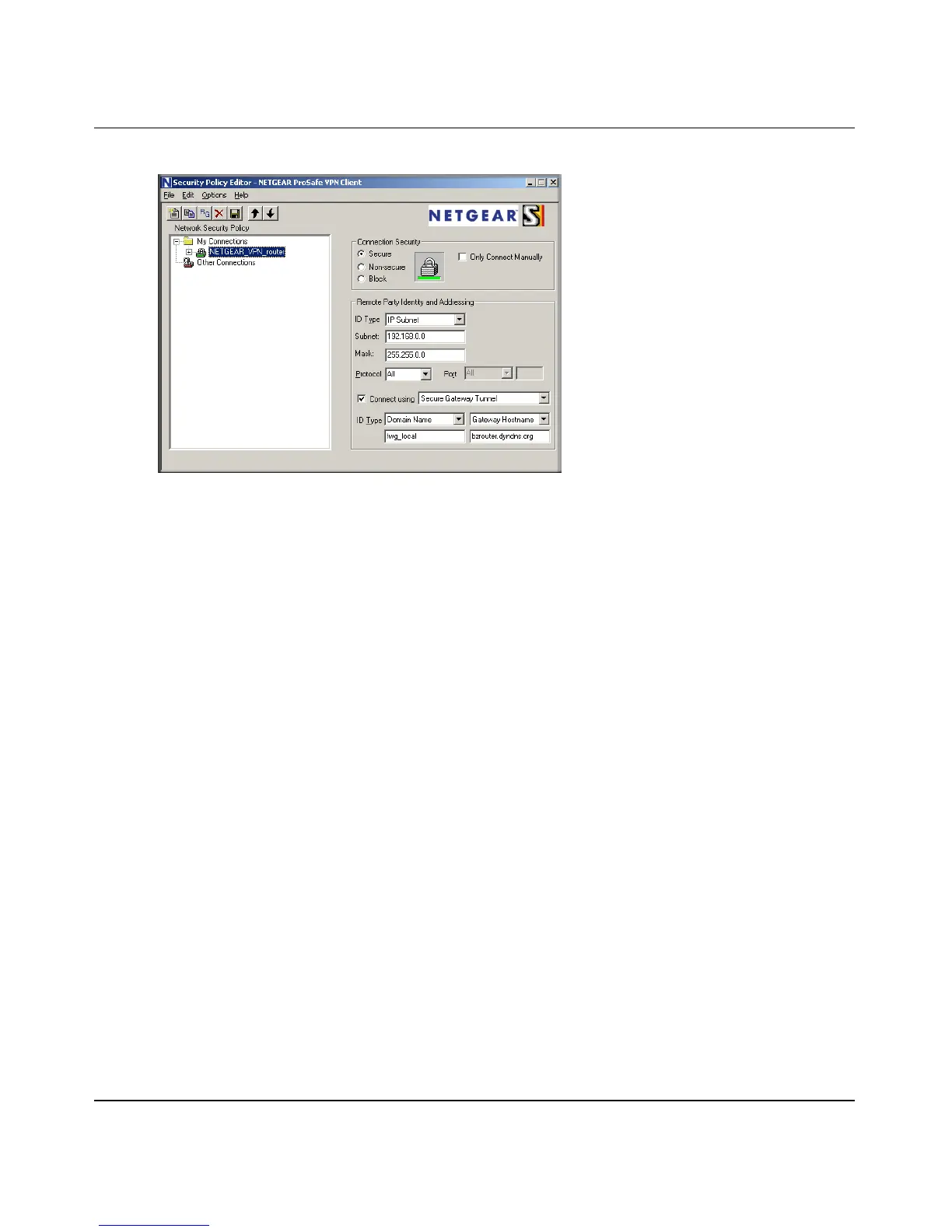

Figure 5-10: Security Policy Editor connection settings
c.
Select Secure in the Connection Security check box.
d. Select IP Subnet in the ID Type menu.
In this example, type 192.168.3.1 in the Subnet field as the network address of the
FVS318v3.
e. Enter 255.255.255.0 in the Mask field as the LAN Subnet Mask of the FVS318v3.
f. Select All in the Protocol menu to allow all traffic through the VPN tunnel.
g. Select the Connect using Secure Gateway Tunnel check box.
h. Select IP Address in the ID Type menu below the check box.
i. Enter the public WAN IP Address of the FVS318v3 in the field directly below the ID Type
menu. In this example,
22.23.24.25 would be used.
The resulting Connection Settings are shown in Figure 5-10.
3. Configure the Security Policy in the NETGEAR ProSafe VPN Client software.
a. In the Network Security Policy list, expand the new connection by double clicking its
name or clicking on the “+” symbol. My Identity and Security Policy subheadings appear
below the connection name.
b. Click on the Security Policy subheading to show the Security Policy menu.

NETGEAR FVS318 - ProSafe VPN Firewall Router Specifications

General

Model	FVS318
Category	Firewall
WAN Ports	1
LAN Ports	8
VPN Pass-through	Yes
VPN Tunnels	8
SPI Firewall	Yes
Data Link Protocol	Ethernet, Fast Ethernet
VPN Protocol	IPSec
Compliant Standards	IEEE 802.3, IEEE 802.3u
RAM	8 MB
Flash Memory	4 MB
Power Supply	External power adapter
Network / Transport Protocol	TCP/IP, UDP
Encryption Algorithm	3DES
Features	NAT support, URL filtering, DHCP server, DoS attack prevention
Status Indicators	Port status, power
