Reference Manual for the ProSafe VPN Firewall FVS318v3
Basic Virtual Private Networking 5-13
January 2005

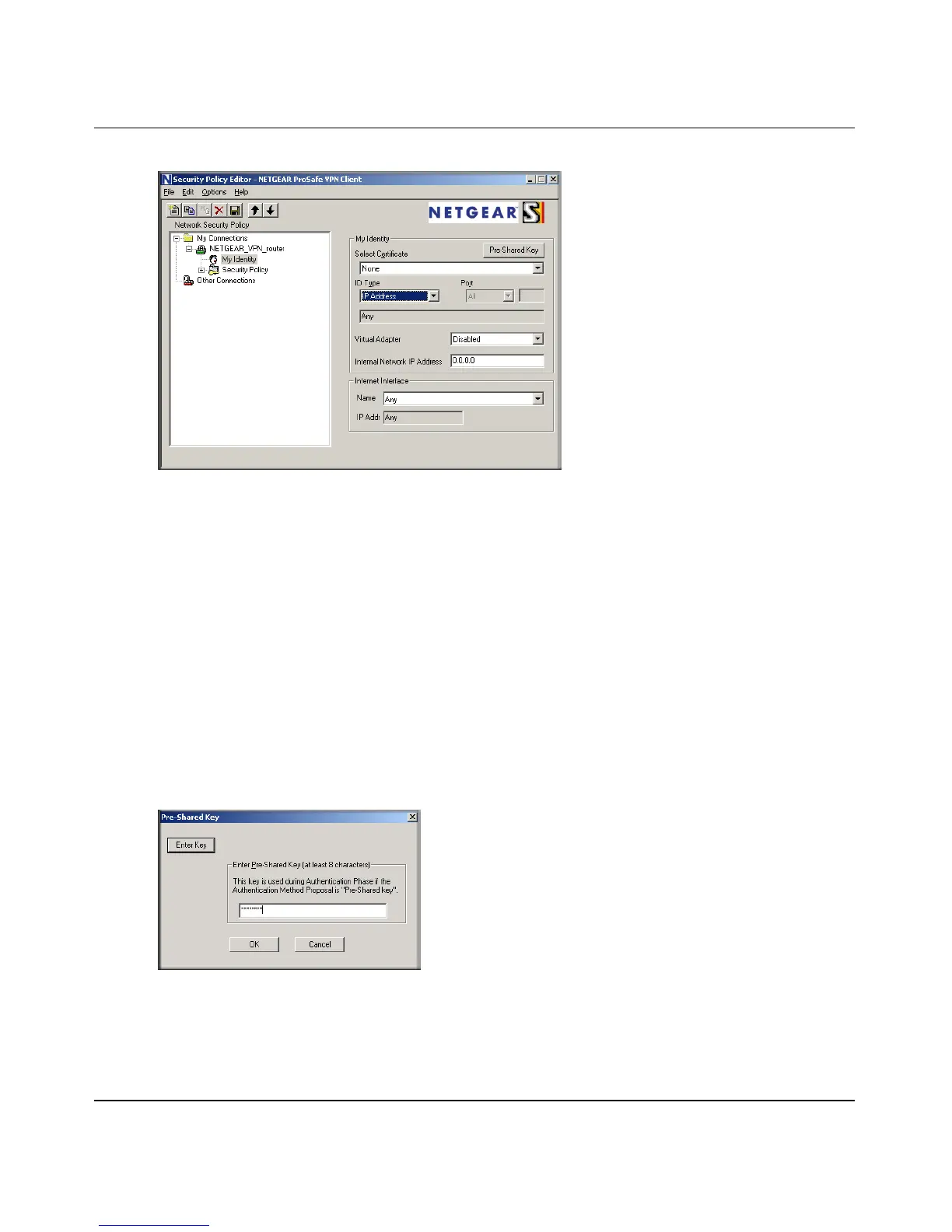

Figure 5-12: Security Policy Editor My Identity
b.
Choose None in the Select Certificate box.
c. Select IP Address in the ID Type box. If you are using a virtual fixed IP address, enter this
address in the Internal Network IP Address box. Otherwise, leave this box empty.
d. In the Internet Interface box, select the adapter you use to access the Internet. Select PPP
Adapter in the Name menu if you have a dial-up Internet account. Select your Ethernet
adapter if you have a dedicated Cable or DSL line. You may also choose Any if you will
be switching between adapters or if you have only one adapter.
e. Click the Pre-Shared Key button. In the Pre-Shared Key dialog box, click the Enter Key
button. Enter the FVS318v3's Pre-Shared Key and click OK. In this example, 12345678 is
entered. This field is case sensitive.
Figure 5-13: Security Policy Editor Pre-Shared Key

NETGEAR FVS318 - ProSafe VPN Firewall Router Specifications

General

Model	FVS318
Category	Firewall
WAN Ports	1
LAN Ports	8
VPN Pass-through	Yes
VPN Tunnels	8
SPI Firewall	Yes
Data Link Protocol	Ethernet, Fast Ethernet
VPN Protocol	IPSec
Compliant Standards	IEEE 802.3, IEEE 802.3u
RAM	8 MB
Flash Memory	4 MB
Power Supply	External power adapter
Network / Transport Protocol	TCP/IP, UDP
Encryption Algorithm	3DES
Features	NAT support, URL filtering, DHCP server, DoS attack prevention
Status Indicators	Port status, power
