NETGEAR GS716T User Manual

118
GS716T and GS724T Gigabit Smart Switches
Multicast Forwarding Database Table
The Layer 2 Multicast Forwarding Database (MFDB) is used by the switch to make
forwarding decisions for packets that arrive with a multicast destination MAC address. By
limiting multicasts to only certain ports in the switch, traffic is prevented from going to parts of
the network where that traffic is unnecessary.
When a packet enters the switch, the destination MAC address is combined with the VLAN ID
and a search is performed in the Layer 2 Multicast Forwarding Database. If no match is
found, then the packet is either flooded to all ports in the VLAN or discarded, depending on
the switch configuration. If a match is found, then the packet is forwarded only to the ports
that are members of that multicast group.

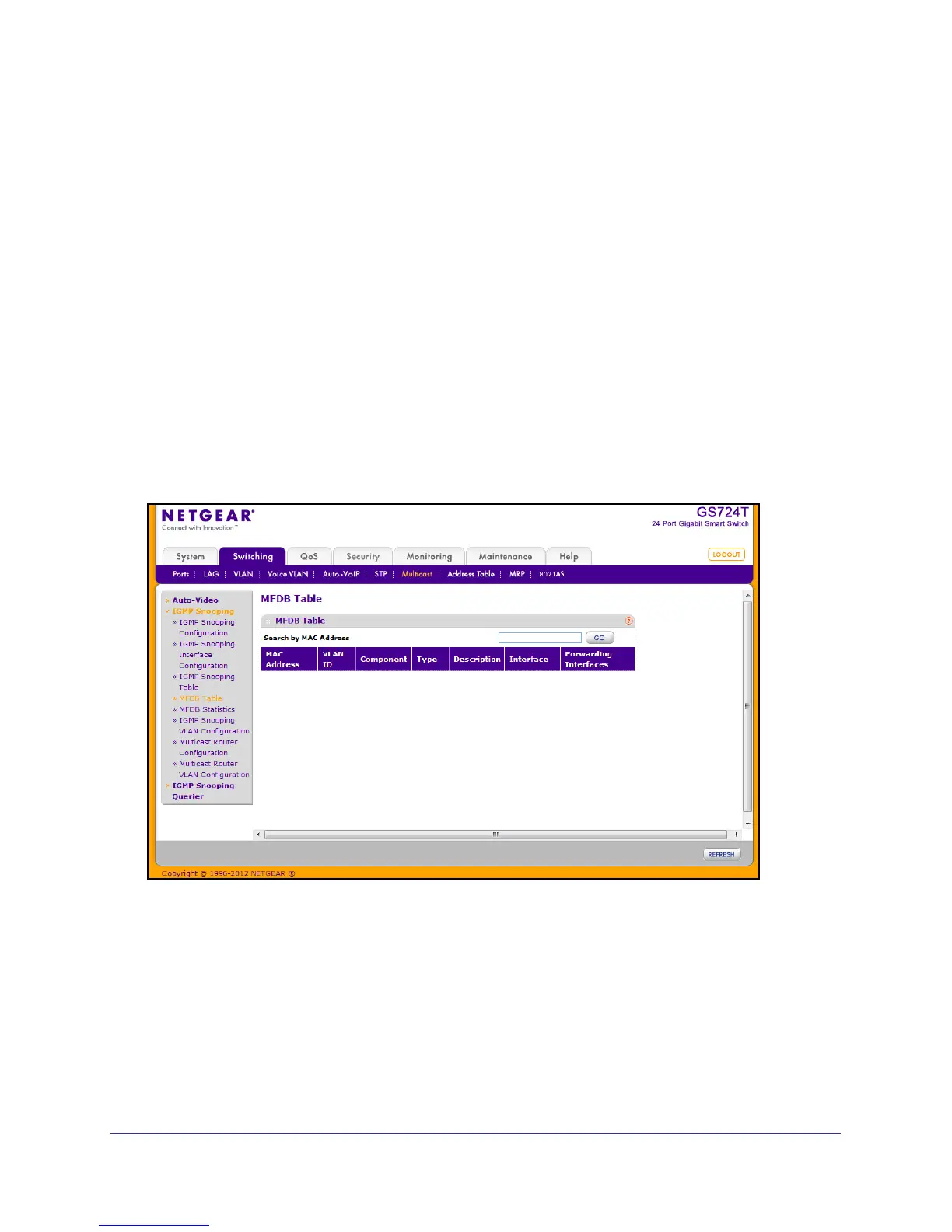

Use the MFDB Table page to view the port membership information for all active multicast
address entries. The key for an entry consists of a MAC address. Entries may contain data
for more than one protocol.
To access the MFDB Table page, click Switching
 Multicast  IGMP Snooping  MFDB
Table.

NETGEAR GS716T Specifications

General

Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Yes
Stackable	-
Certification	CE, FCC, VCCI, EN, C-Tick, CCC, CSA, UL/cUL, IEC
Product color	Blue
LED indicators	Activity, Link, Power
SFP module slots quantity	2
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	16
Number of VLANs	256
Networking standards	IEEE 802.1D, IEEE 802.1as, IEEE 802.1s, IEEE 802.1v, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 100BASE-T, 1000BASE-T
Noise level	0 dB
Mean time between failures (MTBF)	567680 h
DHCP features	DHCP client
Security algorithms	802.1x RADIUS, HTTPS, SSL/TLS
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	14.4 W
MAC address table	16000 entries
Number of static routes	32
Operating altitude	0 - 3000 m
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Storage relative humidity (H-H)	0 - 95 %
Operating relative humidity (H-H)	0 - 90 %
Cables included	AC
Supported network protocols	IP

Weight and Dimensions

Depth	204 mm
Width	440 mm
Height	43 mm
Weight	2570 g
