NETGEAR GS716T User Manual

141
GS716T and GS724T Gigabit Smart Switches

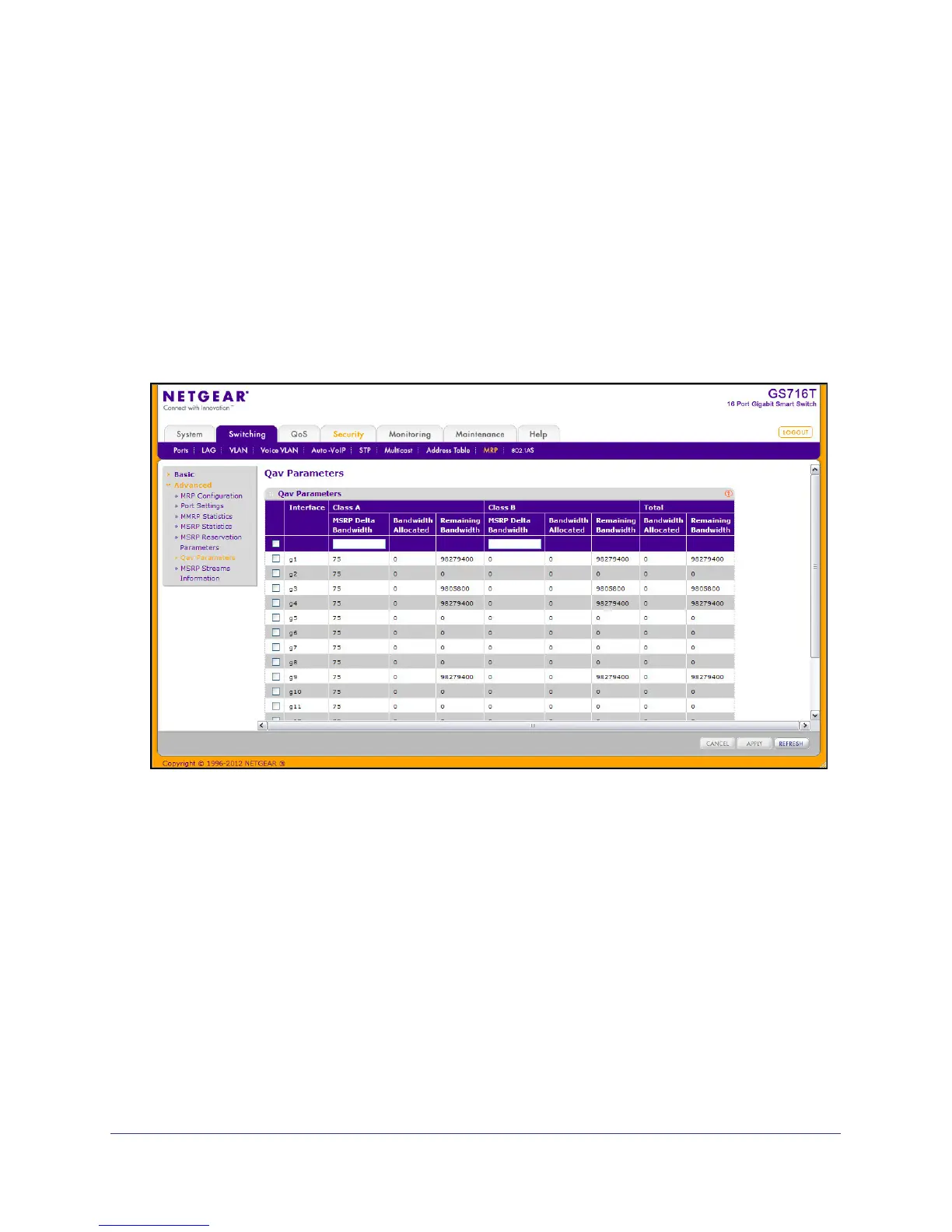

Qav Parameters
Use the Qav Parameters page to configure and view the per-port IEEE 802.1Qav settings.
The IEEE 802.1Qav standard supports time-sensitive traffic streams by pacing all switch
traffic, including legacy asynchronous Ethernet traffic, through queuing and forwarding.
When a Talker declares a stream, it identifies whether the stream is Class A or Class B and
specifies the stream’s bandwidth requirements. Class A traffic has a higher transmission
priority than Class B traffic.
On the Qav Parameters page, you can view and configure selected bandwidth allocations for
Class A and Class B traffic. To display the Qav Statistics page click the Switching tab, then
click MRP  Advanced  Qav Parameters.
To configure the Qav parameters:
1. Select the check box next to the port to configure. You can select multiple ports to apply
the same settings to the selected interfaces. Select the check box in the heading row to
apply the same settings to all interfaces.
2. Configure the Class A MSRP delta bandwidth.
Class A Delta bandwidth is the additional bandwidth represented as a percentage of port
transmit rate which can be reserved for the traffic class A and traffic class B. Class A
traffic has a higher priority. The range is 0–100.
The following Class A fields are read-only:
• The Bandwidth Allocated field shows the current rate of the class A traffic on interface
(in Bps).
• The Class A Remaining Bandwidth field shows the maximum rate of the class A traffic
available on interface (in Bps).

NETGEAR GS716T Specifications

General

Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Yes
Stackable	-
Certification	CE, FCC, VCCI, EN, C-Tick, CCC, CSA, UL/cUL, IEC
Product color	Blue
LED indicators	Activity, Link, Power
SFP module slots quantity	2
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	16
Number of VLANs	256
Networking standards	IEEE 802.1D, IEEE 802.1as, IEEE 802.1s, IEEE 802.1v, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 100BASE-T, 1000BASE-T
Noise level	0 dB
Mean time between failures (MTBF)	567680 h
DHCP features	DHCP client
Security algorithms	802.1x RADIUS, HTTPS, SSL/TLS
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	14.4 W
MAC address table	16000 entries
Number of static routes	32
Operating altitude	0 - 3000 m
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Storage relative humidity (H-H)	0 - 95 %
Operating relative humidity (H-H)	0 - 90 %
Cables included	AC
Supported network protocols	IP
