NETGEAR GS716T User Manual

50
GS716T and GS724T Gigabit Smart Switches

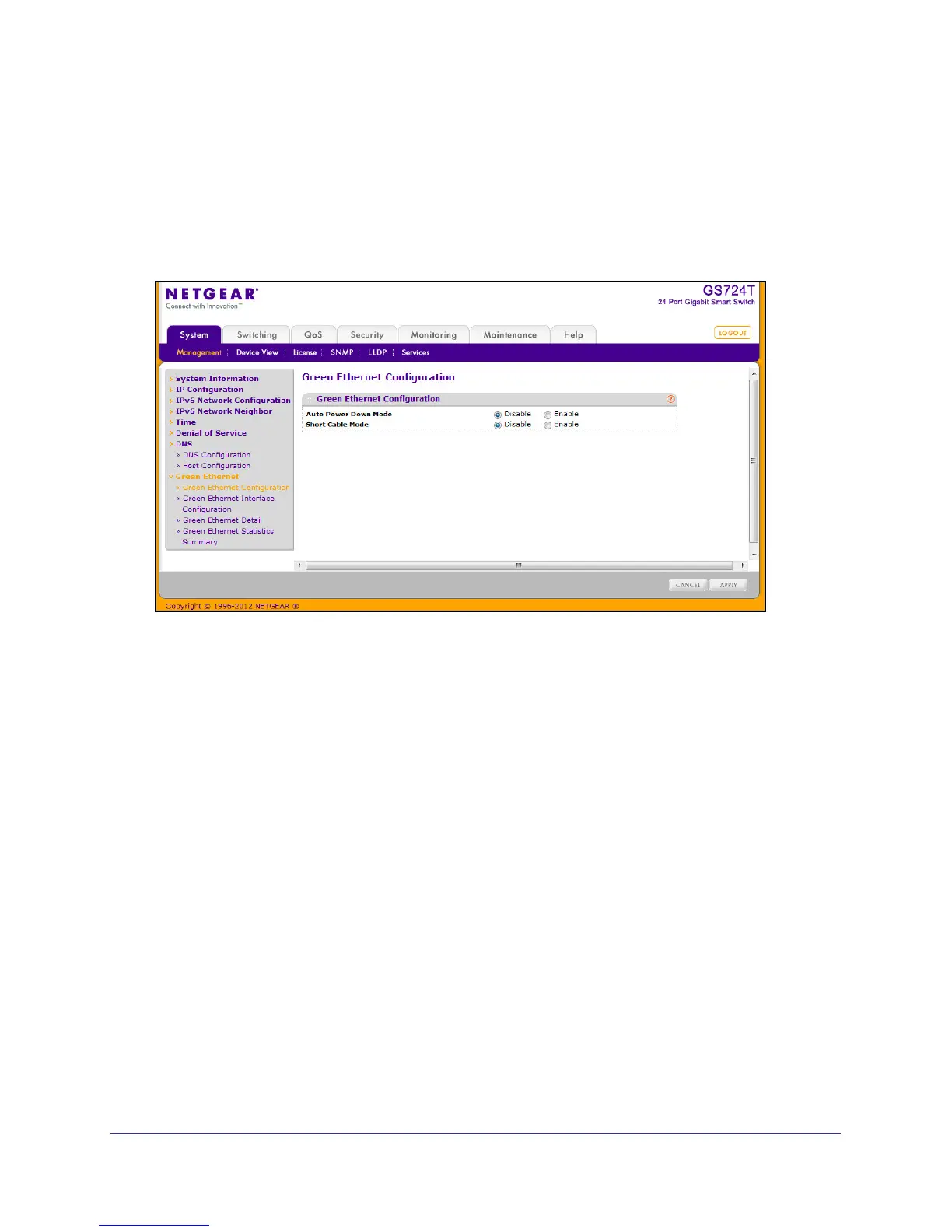

Green Ethernet Configuration
Use this page to configure the administrative mode for the Green Ethernet features available
on the switch. These features must also be enabled on each port to take advantage of the
possible power savings.
To access this page, click System
 Management  Green Ethernet Configuration.
To configure the Green Ethernet feature:
1. Enable or disable the Auto Power Down Mode.
• Enable. When the port link is down, the PHY will automatically go down for a short
period of time and then wake up to check link pulses. This allows the port to continue
to perform auto-negotiation while consuming less power when no link partner is
present.
• Disable. Provide full power to the port even if no link partner is present.
2. Enable or disable the Short Cable Mode.
• Enable. The switch performs a cable test when the port link is up. If the cable that
connects the port to its link partner has a length less than 10m, PHYs are placed in
low-power mode (nominal power).
• Disable. Do not perform an automatic cable test on a linked port or adjust the port
power based on the cable length.
3. Click Apply to send the updated configuration to the switch. Configuration changes take
effect immediately.

NETGEAR GS716T Specifications

General

Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Yes
Stackable	-
Certification	CE, FCC, VCCI, EN, C-Tick, CCC, CSA, UL/cUL, IEC
Product color	Blue
LED indicators	Activity, Link, Power
SFP module slots quantity	2
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	16
Number of VLANs	256
Networking standards	IEEE 802.1D, IEEE 802.1as, IEEE 802.1s, IEEE 802.1v, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 100BASE-T, 1000BASE-T
Noise level	0 dB
Mean time between failures (MTBF)	567680 h
DHCP features	DHCP client
Security algorithms	802.1x RADIUS, HTTPS, SSL/TLS
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	14.4 W
MAC address table	16000 entries
Number of static routes	32
Operating altitude	0 - 3000 m
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Storage relative humidity (H-H)	0 - 95 %
Operating relative humidity (H-H)	0 - 90 %
Cables included	AC
Supported network protocols	IP

Weight and Dimensions

Depth	204 mm
Width	440 mm
Height	43 mm
Weight	2570 g
