NETGEAR GS716T User Manual

295
GS716T and GS724T Gigabit Smart Switches
MSTP Example Configuration
This example shows how to create an MSTP instance from the GS716T and GS724T switch.

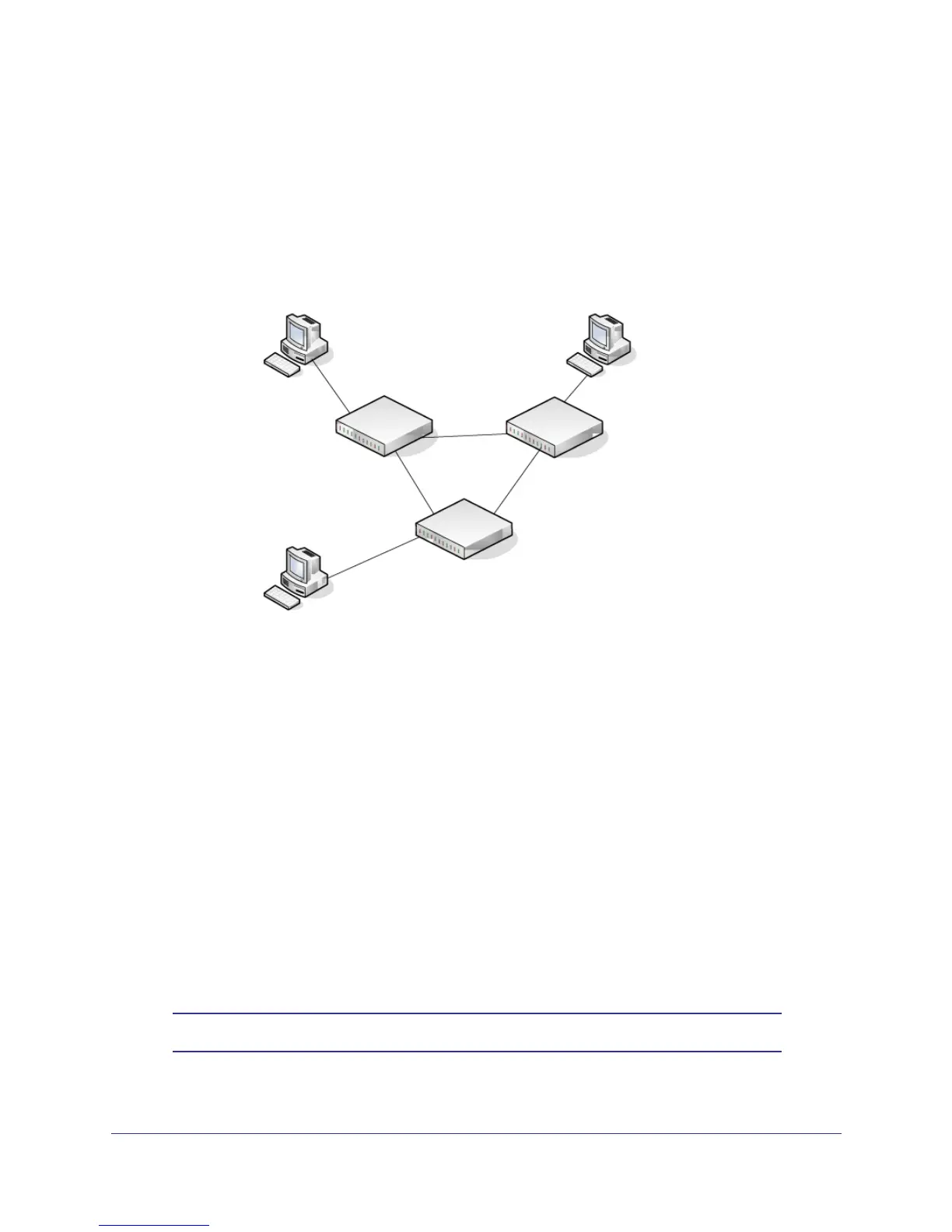

The example network has three different GS716T and GS724T switches that serve different
locations in the network. In this example, ports g1–g5 are connected to host stations, so
those links are not subject to network loops. Ports g6–g8 are connected across switches 1, 2,
and 3.
Ports g1-g5
Switch 1
Connected to Hosts
Root Bridge
Switch 2
Switch 3
Ports g1-g5
Connected to Hosts
Ports g1-g5
Connected to Hosts
Ports g6-g8
Connected to Switch 2 and 3
Ports g6-g8
Connected to Switch 1 and 2
Perform the following procedures on each switch to configure MSTP:
1. Use the VLAN Configuration screen to create VLANs 300 and 500 (see VLAN
Configuration on page 89).
2. Use the VLAN Membership screen to include ports g1–g8 as tagged (T) or untagged (U)
members of VLAN 300 and VLAN 500 (see VLAN Membership Configuration on page 90).
3. From the STP Configuration screen, enable the Spanning Tree State option (see STP
Switch Configuration on page 100).
4. In the Configuration Name field on the STP Configuration page, configure the name so that
it is the same on each switch, for example netgear-stp. By default, the Configuration Name
is the switch MAC address which means that it is unique for each switch.
5. From the CST Configuration screen, set the Bridge Priority value for each of the three
switches to force Switch 1 to be the root bridge:
• Switch 1: 4096
• Switch 2: 12288
• Switch 3: 20480
Note: Bridge priority values are multiples of 4096.

NETGEAR GS716T Specifications

General

Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Yes
Stackable	-
Certification	CE, FCC, VCCI, EN, C-Tick, CCC, CSA, UL/cUL, IEC
Product color	Blue
LED indicators	Activity, Link, Power
SFP module slots quantity	2
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	16
Number of VLANs	256
Networking standards	IEEE 802.1D, IEEE 802.1as, IEEE 802.1s, IEEE 802.1v, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 100BASE-T, 1000BASE-T
Noise level	0 dB
Mean time between failures (MTBF)	567680 h
DHCP features	DHCP client
Security algorithms	802.1x RADIUS, HTTPS, SSL/TLS
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	14.4 W
MAC address table	16000 entries
Number of static routes	32
Operating altitude	0 - 3000 m
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Storage relative humidity (H-H)	0 - 95 %
Operating relative humidity (H-H)	0 - 90 %
Cables included	AC
Supported network protocols	IP

Weight and Dimensions

Depth	204 mm
Width	440 mm
Height	43 mm
Weight	2570 g
