NETGEAR GS716T User Manual

195
GS716T and GS724T Gigabit Smart Switches

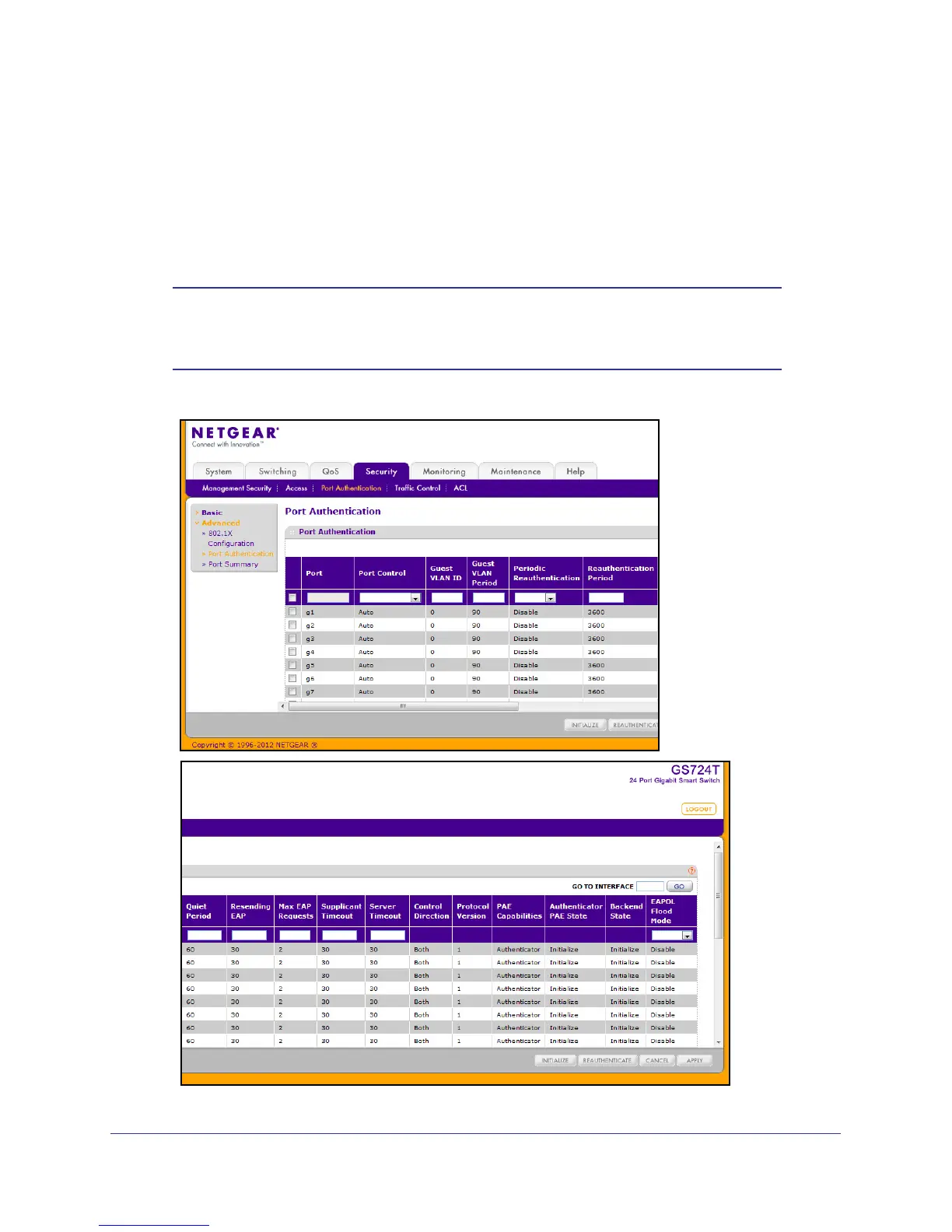

Port Authentication
Use the Port Authentication page to enable and configure port access control on one or more
ports.
To access the Port Authentication page, click Security
 Port Authentication, and then click
the Advanced
 Port Authentication link.
Note: Use the horizontal scroll bar at the bottom of the browser to view all
the fields on the Port Authentication page. The figures on the
following page are both images of the Port Authentication page.

NETGEAR GS716T Specifications

General

Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Yes
Stackable	-
Certification	CE, FCC, VCCI, EN, C-Tick, CCC, CSA, UL/cUL, IEC
Product color	Blue
LED indicators	Activity, Link, Power
SFP module slots quantity	2
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	16
Number of VLANs	256
Networking standards	IEEE 802.1D, IEEE 802.1as, IEEE 802.1s, IEEE 802.1v, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 100BASE-T, 1000BASE-T
Noise level	0 dB
Mean time between failures (MTBF)	567680 h
DHCP features	DHCP client
Security algorithms	802.1x RADIUS, HTTPS, SSL/TLS
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	14.4 W
MAC address table	16000 entries
Number of static routes	32
Operating altitude	0 - 3000 m
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Storage relative humidity (H-H)	0 - 95 %
Operating relative humidity (H-H)	0 - 90 %
Cables included	AC
Supported network protocols	IP

Weight and Dimensions

Depth	204 mm
Width	440 mm
Height	43 mm
Weight	2570 g
