GS716T and GS724T Gigabit Smart Switches

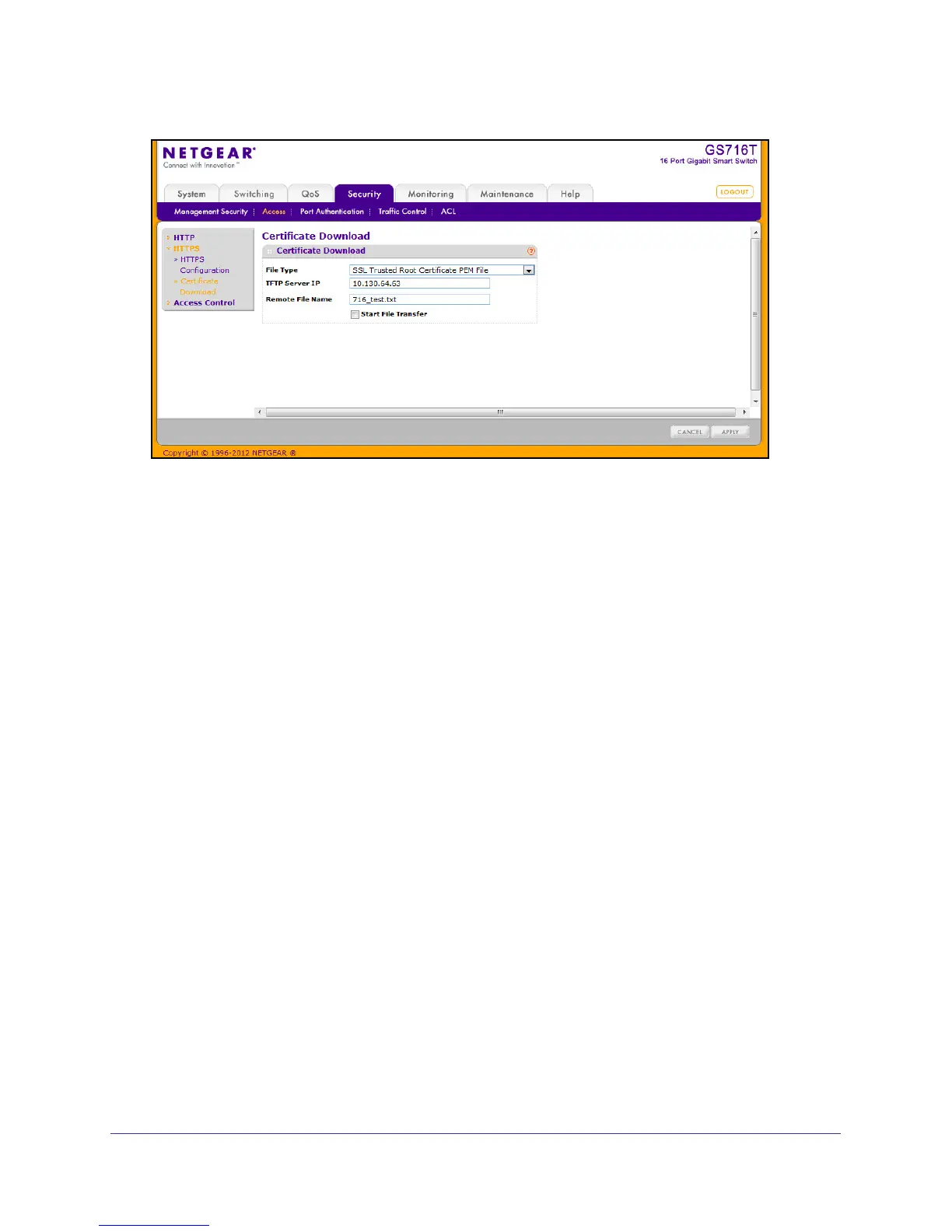

To configure the certificate download settings for HTTPS sessions:
1. From the File Type menu, select the type of SSL certificate to download, which can be
one of the following:
• SSL Trusted Root Certificate PEM File. SSL Trusted Root Certificate File (PEM
Encoded).
• SSL Server Certificate PEM File. SSL Server Certificate File (PEM Encoded).
• SSL DH Weak Encryption Parameter PEM File. SSL Diffie-Hellman Weak
Encryption Parameter File (PEM Encoded).
• SSL DH Strong Encryption Parameter PEM File. SSL Diffie-Hellman Strong
Encryption Parameter File (PEM Encoded).
2. In the TFTP Server IP field, specify the address of the TFTP server. The address can be an
IP address in standard x.x.x.x format or a host name. The host name must start with a letter
of the alphabet. Make sure that the software image or other file to be downloaded is
available on the TFTP server.
3. In the Remote File Name field, specify the name of the file to download, including the path.
You may enter up to 32 characters.
4. Select the Start File Transfer check box.
5. Click Apply to start the transfer. A status message displays during the transfer and upon
successful completion of the transfer.
6. Click Cancel to cancel the configuration on the screen and reset the data on the screen to
the latest value of the switch.

NETGEAR GS716T Specifications

General

Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Yes
Stackable	-
Certification	CE, FCC, VCCI, EN, C-Tick, CCC, CSA, UL/cUL, IEC
Product color	Blue
LED indicators	Activity, Link, Power
SFP module slots quantity	2
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	16
Number of VLANs	256
Networking standards	IEEE 802.1D, IEEE 802.1as, IEEE 802.1s, IEEE 802.1v, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 100BASE-T, 1000BASE-T
Noise level	0 dB
Mean time between failures (MTBF)	567680 h
DHCP features	DHCP client
Security algorithms	802.1x RADIUS, HTTPS, SSL/TLS
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	14.4 W
MAC address table	16000 entries
Number of static routes	32
Operating altitude	0 - 3000 m
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Storage relative humidity (H-H)	0 - 95 %
Operating relative humidity (H-H)	0 - 90 %
Cables included	AC
Supported network protocols	IP

Weight and Dimensions

Depth	204 mm
Width	440 mm
Height	43 mm
Weight	2570 g
