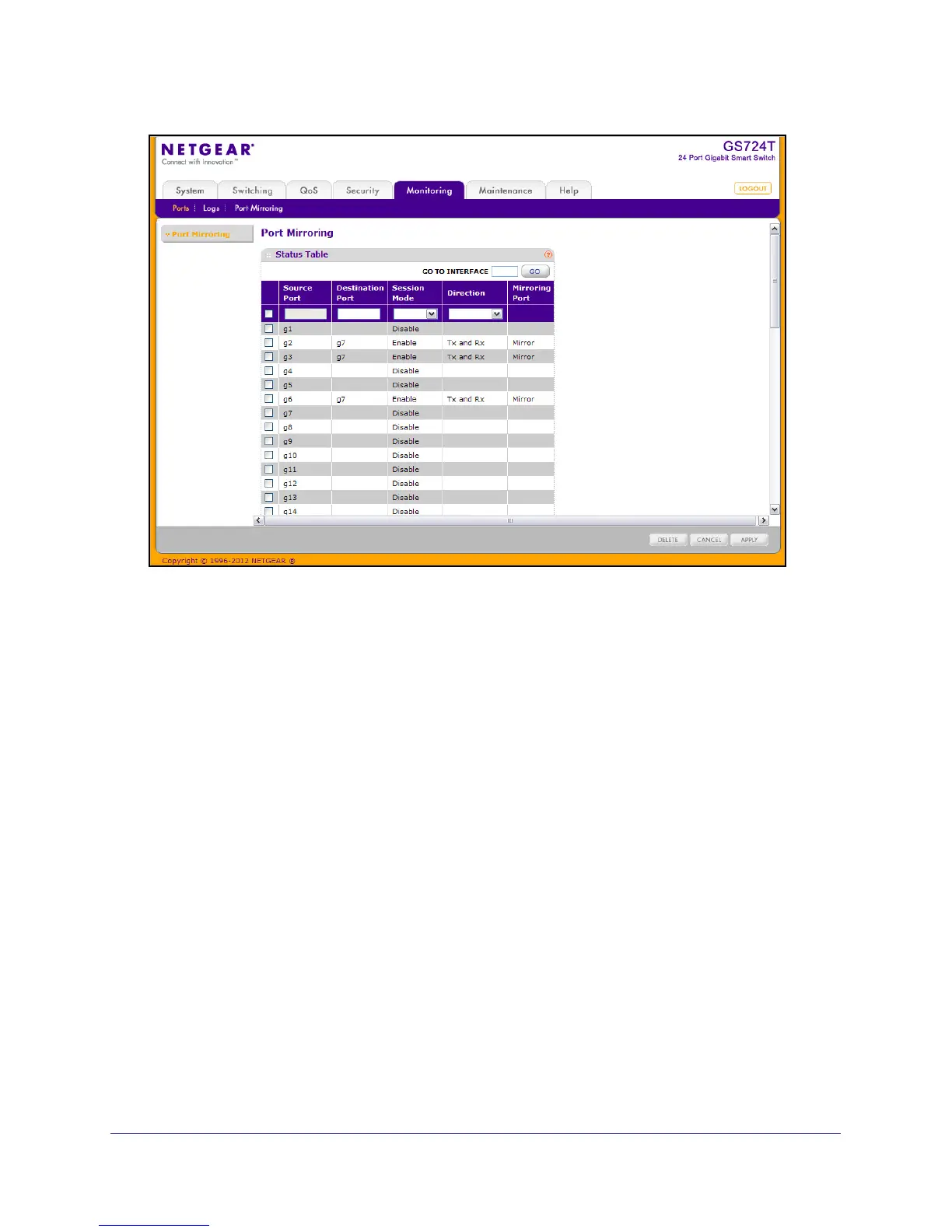

To configure Port Mirroring:
1. Select the check box next to a port to configure it as a source port.
2. In the Destination Port field, specify the port to which port traffic is be copied. Use the g1,
g2,...format to specify the port. You can configure only one destination port on the system.
3. From the Session Mode menu, select the mode for port mirroring on the selected port:
• Enable. Multiple Port Mirroring is active on the selected port.
• Disable. Port mirroring is not active on the selected port, but the mirroring information
is retained.
4. From the Direction menu, specify the direction of the Traffic to be mirrored from the
configured mirrored port(s). The default value is Tx and Rx.
• Tx and Rx. Enable both transmitting and receiving on the selected ports.
• Tx only. Enable only transmitting on the selected ports.
• Rx only. Enable only receiving on the selected ports.
5. Click Apply to apply the settings to the system. If the port is configured as a source port, the
Mirroring Port field value is Mirrored.
6. To delete a mirrored port, select the check box next to the mirrored port, and then click
Delete.
7. Click Cancel to cancel the configuration on the screen and reset the data on the screen to
the latest value of the switch.

NETGEAR GS716T Specifications

General

Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Yes
Stackable	-
Certification	CE, FCC, VCCI, EN, C-Tick, CCC, CSA, UL/cUL, IEC
Product color	Blue
LED indicators	Activity, Link, Power
SFP module slots quantity	2
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	16
Number of VLANs	256
Networking standards	IEEE 802.1D, IEEE 802.1as, IEEE 802.1s, IEEE 802.1v, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 100BASE-T, 1000BASE-T
Noise level	0 dB
Mean time between failures (MTBF)	567680 h
DHCP features	DHCP client
Security algorithms	802.1x RADIUS, HTTPS, SSL/TLS
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	14.4 W
MAC address table	16000 entries
Number of static routes	32
Operating altitude	0 - 3000 m
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Storage relative humidity (H-H)	0 - 95 %
Operating relative humidity (H-H)	0 - 90 %
Cables included	AC
Supported network protocols	IP

Weight and Dimensions

Depth	204 mm
Width	440 mm
Height	43 mm
Weight	2570 g
