NETGEAR Nighthawk R7000P User Manual

14. To specify the destination folder, click the Browse button and select a destination folder.

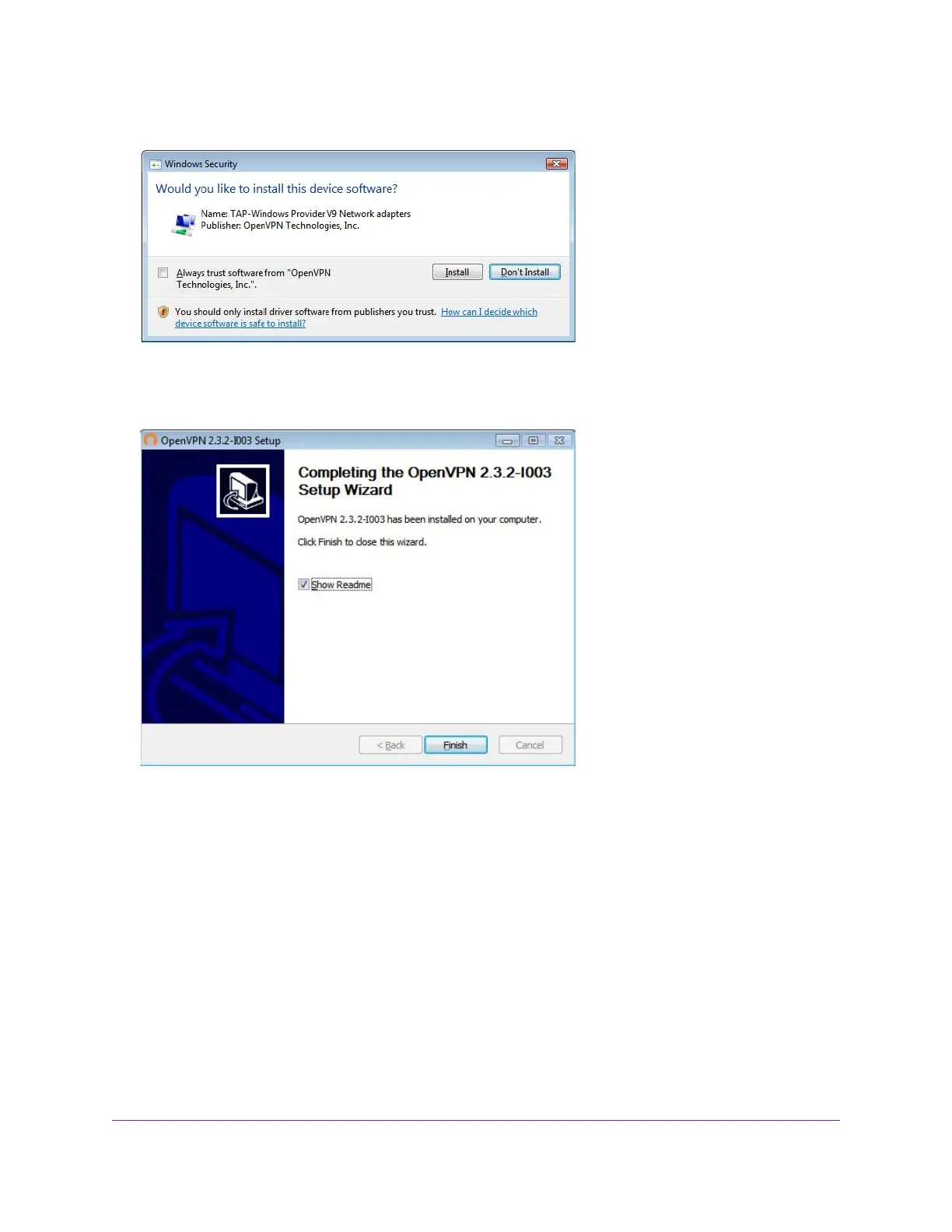

15. Click the Install button.
The window displays the progress of the installation and then displays the final installation page.
16. Click the Finish button.
17. Unzip the configuration files that you downloaded and copy them to the folder where the VPN client is
installed on your device.
For a client device with Windows 64-bit system, the VPN client is installed at C:\Program
files\OpenVPN\config\ by default.
18. For a client device with Windows, modify the VPN interface name to NETGEAR-VPN:
a. On your computer, go to the Networks page. If you are using Windows 10, select Control Panel >
Network and Sharing Center > Change adapter settings.
b. In the local area connection list, find the local area connection with the device name TAP-Windows
Adapter.
c. Select the local area connection and change its name (not its device name) to NETGEAR-VPN.
If you do not change the VPN interface name, the VPN tunnel connection will fail.
Use VPN to Access Your Network
129
Nighthawk AC2300 Smart WiFi Router

NETGEAR Nighthawk R7000P Specifications

General

DSL WAN	No
Ethernet WAN	Yes
3G/4G USB modem compatibility	-
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	2225 Mbit/s
WLAN data transfer rate (first band)	1625 Mbit/s
WLAN data transfer rate (second band)	600 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	5
Security algorithms	WEP, WPA, WPA2-PSK
Antennas quantity	3
Product type	Tabletop router
Product color	Black
LED indicators	Power
Processor cores	2
Processor frequency	1000 MHz
Power source type	AC

Weight and Dimensions

Depth	184.5 mm
Width	285 mm
Height	50 mm
Weight	750 g
