NETGEAR ProSAFE GS108Ev3 User Manual

Manage Network Settings
24
ProSAFE Gigabit Web Managed (Plus) Switches

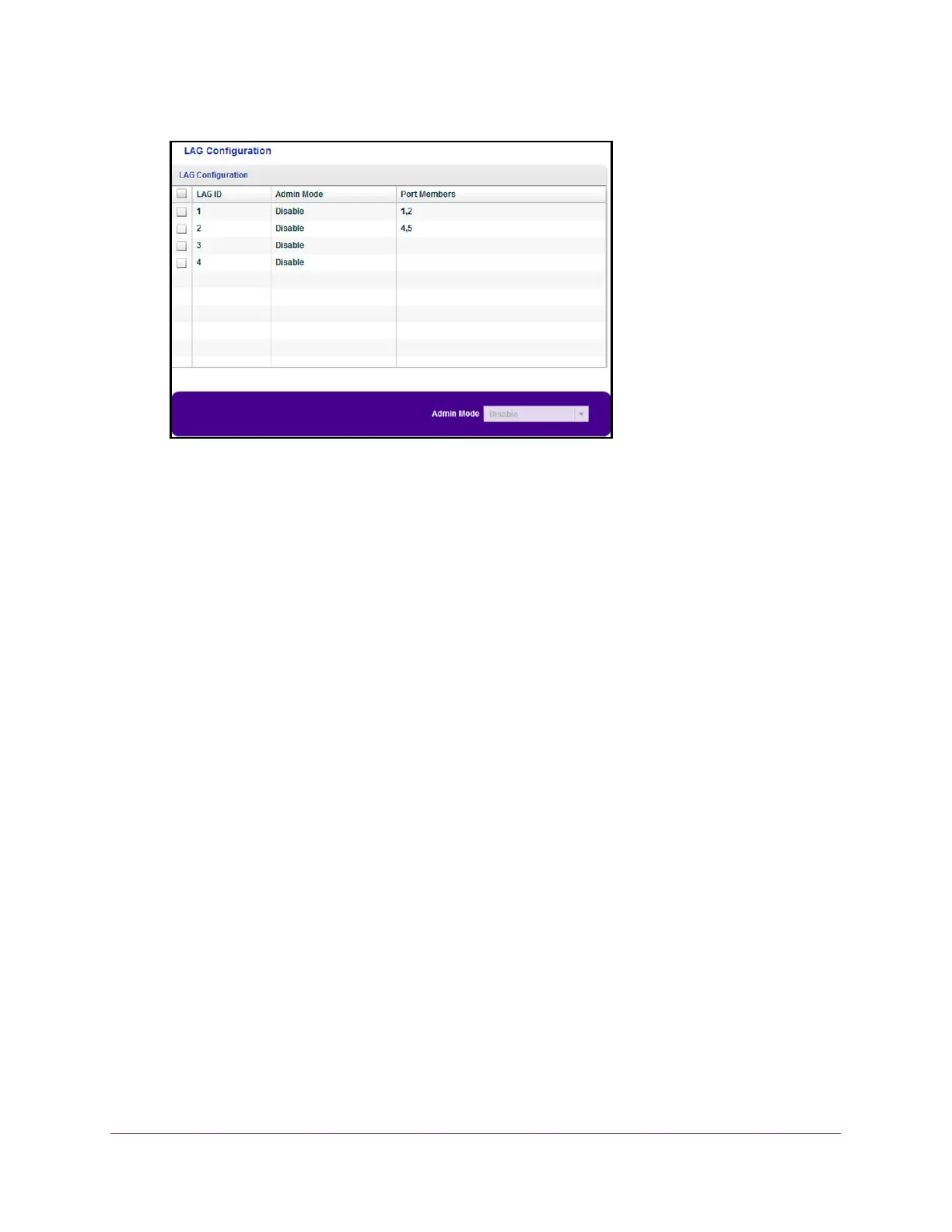

11. Select the ID of the LAG for which you just set up the port membership.
12. In the Admin Mode menu, select Enable.
13. Click the APPLY button.
Your settings are saved.

NETGEAR ProSAFE GS108Ev3 Specifications

General

Model	GS108Ev3
Category	Switch
Switching Capacity	16 Gbps
Forwarding Rate	11.9 Mpps
MAC Address Table Size	4K
Jumbo Frame Support	9, 216 bytes
VLAN Support	Yes
QoS	Yes
Power over Ethernet (PoE)	No
Fanless Design	Yes
Power Supply	External power adapter
Ports	8 Gigabit Ethernet ports
Management	Web-based management
Energy Efficient Ethernet (EEE)	Yes
Operating Temperature	0° to 40°C (32° to 104°F)
Storage Temperature	-20° to 70°C (-4° to 158°F)
Humidity	90% maximum relative humidity, noncondensing
Dimensions	6.22 x 4.02 x 1.10 in (158 x 102 x 28 mm)
