NETGEAR ProSAFE GS108Ev3 User Manual

Use VLANS for Traffic Segmentation
41
ProSAFE Gigabit Web Managed (Plus) Switches

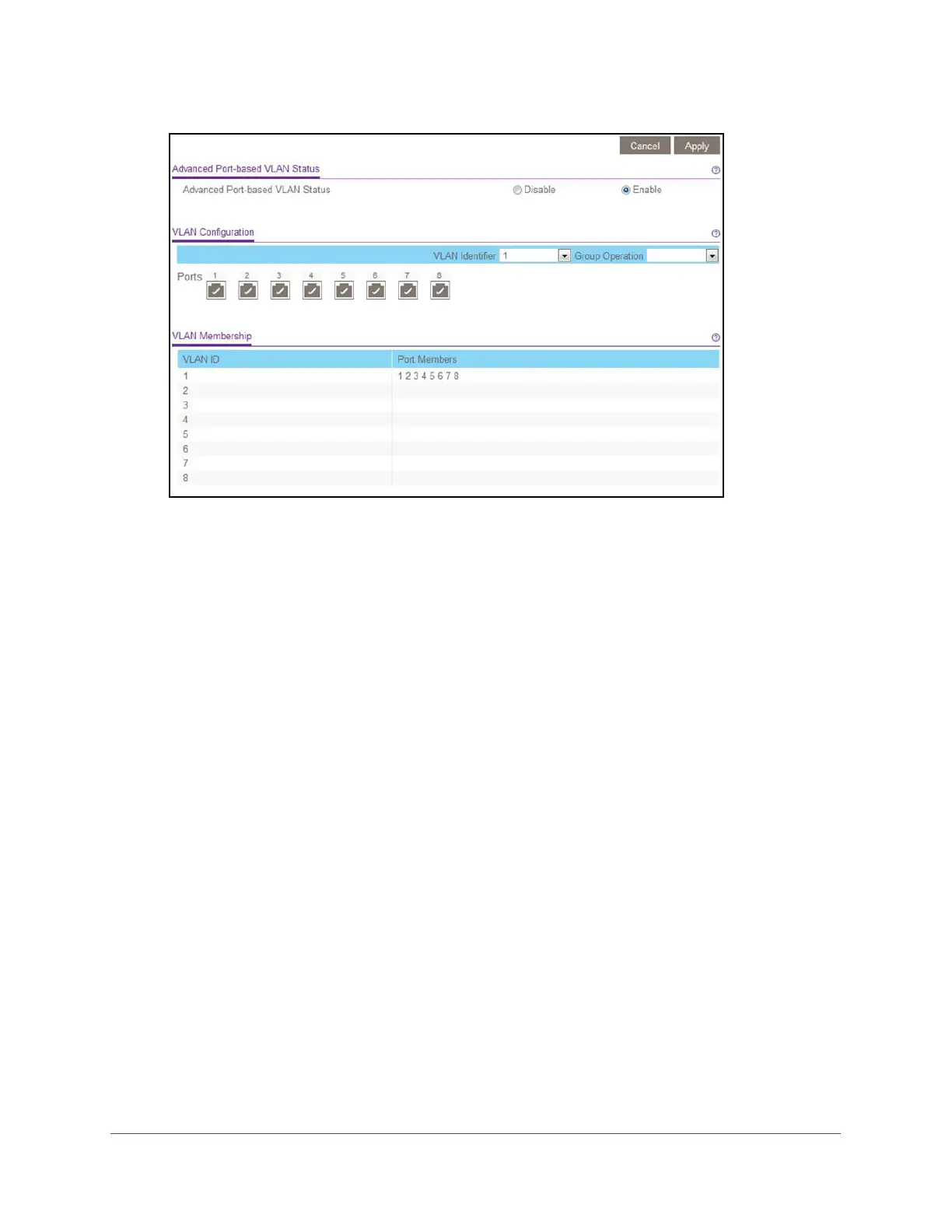

The previous figure is an example. Your switch might provide more or less ports.
9. In the VLAN identifier menu, select the VLAN.
10. Select the ports that you want to add to the VLAN by doing the following:
a. (Optional) In the Group Operation menu, select either Select All or Remove All.
All ports are either added to the VLAN or removed from the VLAN.
b. Select or remove individual ports by selecting the check box under the port
numbers.
Note: If ports are members of the same LAG, you must assign them to the same
VLAN.
c. Click the Apply button.
Your settings are saved. In the VLAN Membership table, the ports display as
members of the VLAN.
11. To select ports for another VLAN, repeat Step 9 and Step 10.
Use the ProSAFE Plus Utility to Assign Ports to Multiple
Port-Based VLANs
 To assign ports to multiple port-based VLANs:
1. Connect your computer to the same network as the switch.
You can use a WiFi or wired network connection, or connect directly to a switch that is
off-network using an Ethernet cable.

NETGEAR ProSAFE GS108Ev3 Specifications

General

Model	GS108Ev3
Category	Switch
Switching Capacity	16 Gbps
Forwarding Rate	11.9 Mpps
MAC Address Table Size	4K
Jumbo Frame Support	9, 216 bytes
VLAN Support	Yes
QoS	Yes
Power over Ethernet (PoE)	No
Fanless Design	Yes
Power Supply	External power adapter
Ports	8 Gigabit Ethernet ports
Management	Web-based management
Energy Efficient Ethernet (EEE)	Yes
Operating Temperature	0° to 40°C (32° to 104°F)
Storage Temperature	-20° to 70°C (-4° to 158°F)
Humidity	90% maximum relative humidity, noncondensing
Dimensions	6.22 x 4.02 x 1.10 in (158 x 102 x 28 mm)
