NETGEAR ProSAFE GS108Ev3 User Manual

Use VLANS for Traffic Segmentation
38
ProSAFE Gigabit Web Managed (Plus) Switches
5. Select VLAN.
The Basic Port-based VLAN Status page displays.
6. If this is the first time that you are accessing the Basic Port-based VLAN Status page or if
you are changing the VLAN assignment method, select the Enable radio button and
continue with Step 7.
Otherwise, see Step 9.
A pop-up window opens, informing you that the current VLAN settings will be lost.
7. Click the OK button.
The pop-up window closes.
8. Click the Apply button.
Your settings are saved.

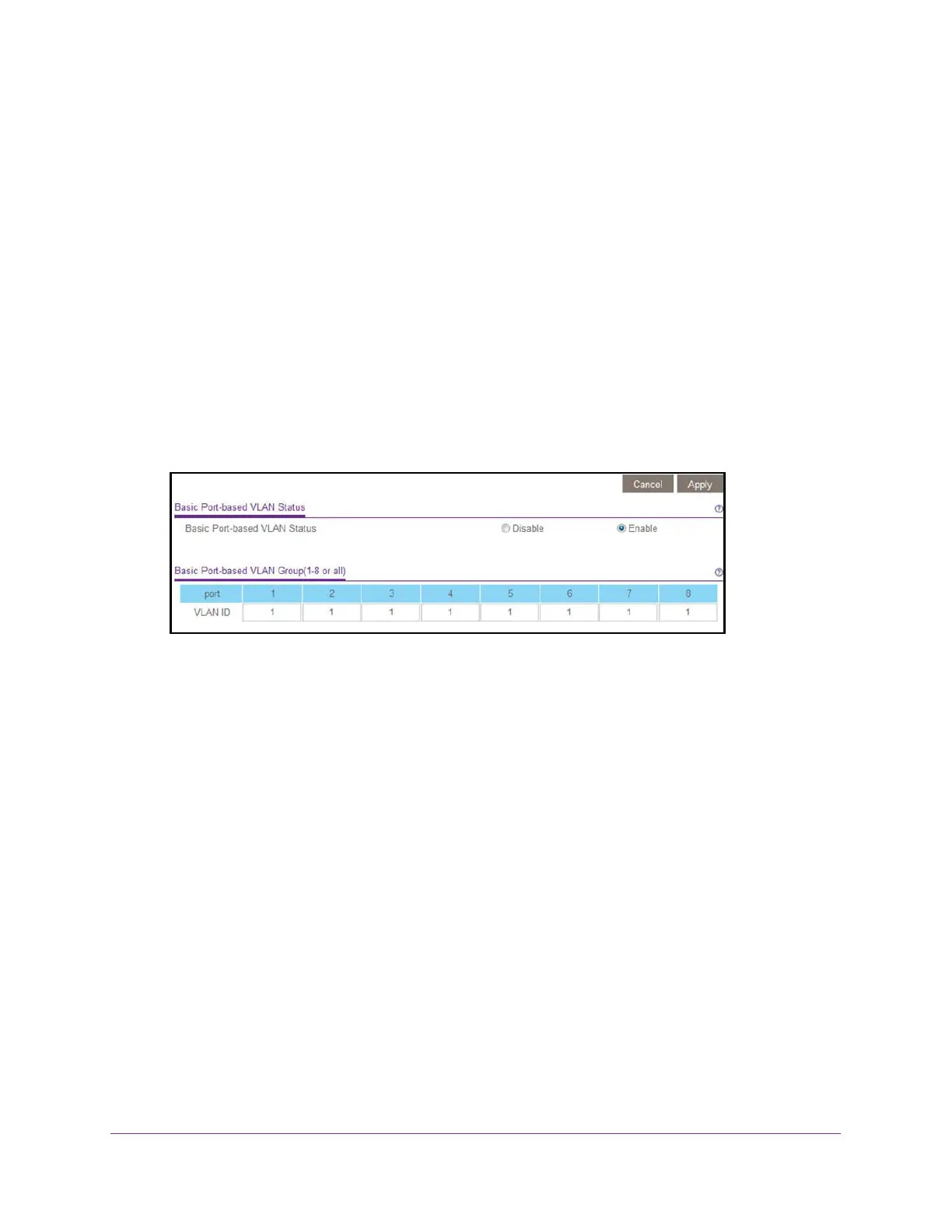

The Basic Port-based VLAN Group table displays.
The previous figure is an example. Your switch might provide more or less ports.
9. Under each port to be added to a VLAN, enter the VLAN ID of the VLAN.
You can enter a VLAN ID from 1 to the maximum number of ports that your switch
supports. If all the VLANs share an uplink to the Internet or servers, enter all in the VLAN
ID field for the port that you want to use for the uplink.
Note: If ports are members of the same LAG, you must assign them to the same
VLAN.
10. Click the Apply button.
Your settings are saved.
Use the ProSAFE Plus Utility to Create Basic Port-Based VLANs
 To create basic port-based VLANs:
1. Connect your computer to the same network as the switch.
You can use a WiFi or wired network connection, or connect directly to a switch that is
off-network using an Ethernet cable.

NETGEAR ProSAFE GS108Ev3 Specifications

General

Model	GS108Ev3
Category	Switch
Switching Capacity	16 Gbps
Forwarding Rate	11.9 Mpps
MAC Address Table Size	4K
Jumbo Frame Support	9, 216 bytes
VLAN Support	Yes
QoS	Yes
Power over Ethernet (PoE)	No
Fanless Design	Yes
Power Supply	External power adapter
Ports	8 Gigabit Ethernet ports
Management	Web-based management
Energy Efficient Ethernet (EEE)	Yes
Operating Temperature	0° to 40°C (32° to 104°F)
Storage Temperature	-20° to 70°C (-4° to 158°F)
Humidity	90% maximum relative humidity, noncondensing
Dimensions	6.22 x 4.02 x 1.10 in (158 x 102 x 28 mm)
