NETGEAR ProSAFE GS108Ev3 User Manual

Optimize Performance With Quality of Service
30
ProSAFE Gigabit Web Managed (Plus) Switches

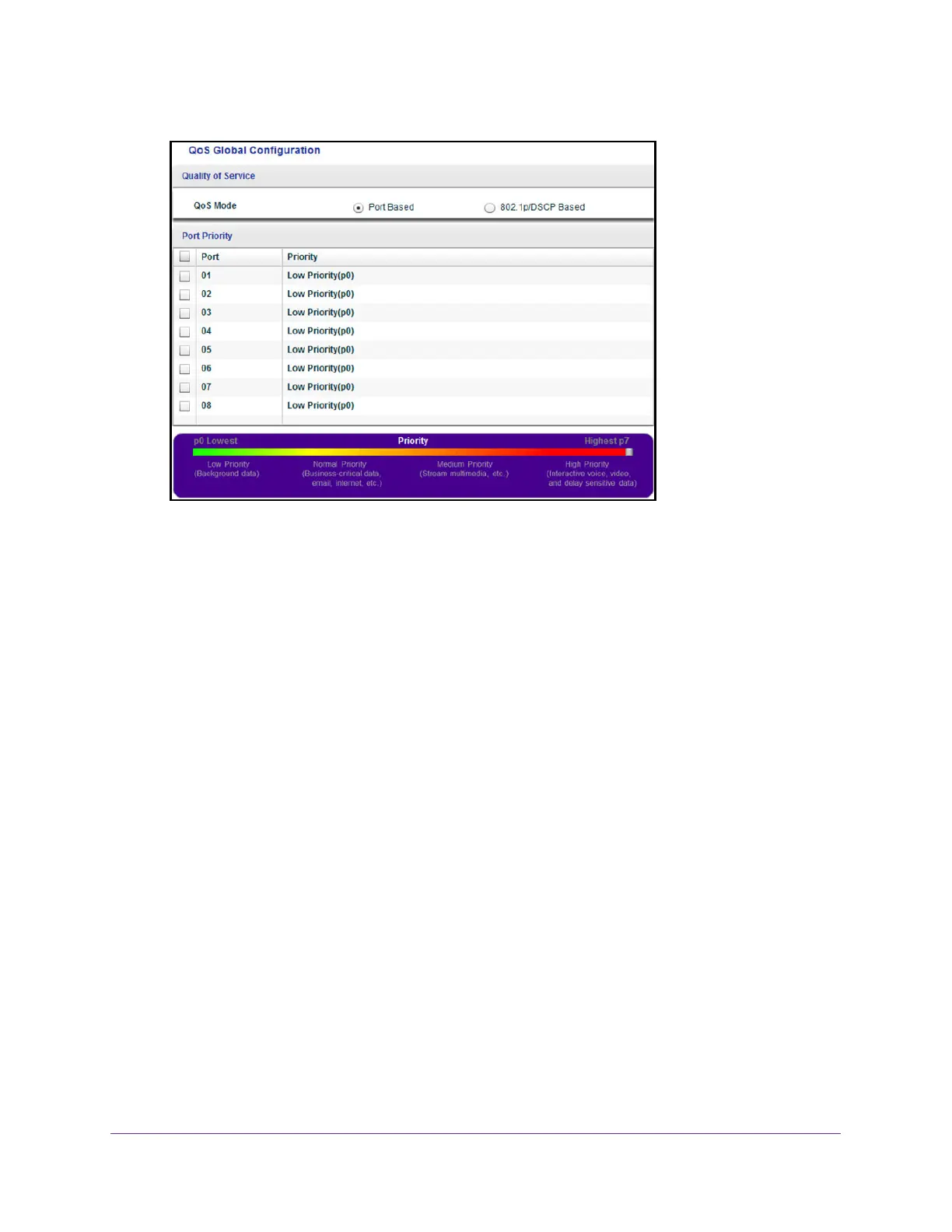

The previous figure is an example. Your switch might provide more or less ports. The
802.1p/DSCP-based radio button is not supported on all models and therefore might not
show on the page.
9. To set the port priority for one or more ports, do the following:
a. Select one or more ports.
b. In the Priority section, select the priority by moving the slider.
c. Click the APPLY button.
Your settings are saved. The same priority is applied to all ports that you selected.
10. To set a different port priority for one or more other ports, repeat Step 9.
Set Up Rate Limiting
You can limit the rate at which the switch accepts incoming data and the rate that it
retransmits outgoing data. The rate choices vary depending on the switch model.
Rate limiting can be set for a port in addition to other QoS settings. If the port rate limit is set,
the switch restricts the acceptance or retransmission of data to the values configured.

NETGEAR ProSAFE GS108Ev3 Specifications

General

Model	GS108Ev3
Category	Switch
Switching Capacity	16 Gbps
Forwarding Rate	11.9 Mpps
MAC Address Table Size	4K
Jumbo Frame Support	9, 216 bytes
VLAN Support	Yes
QoS	Yes
Power over Ethernet (PoE)	No
Fanless Design	Yes
Power Supply	External power adapter
Ports	8 Gigabit Ethernet ports
Management	Web-based management
Energy Efficient Ethernet (EEE)	Yes
Operating Temperature	0° to 40°C (32° to 104°F)
Storage Temperature	-20° to 70°C (-4° to 158°F)
Humidity	90% maximum relative humidity, noncondensing
Dimensions	6.22 x 4.02 x 1.10 in (158 x 102 x 28 mm)
