NETGEAR ProSafe XS728T User Manual

Configure Switching
119
ProSAFE 10-Gigabit Smart Managed Switch XS728T and XS748T User Manual
The login window opens.
4. Enter the switch’s password in the Password field.
The default password is password.
The System Information page displays.

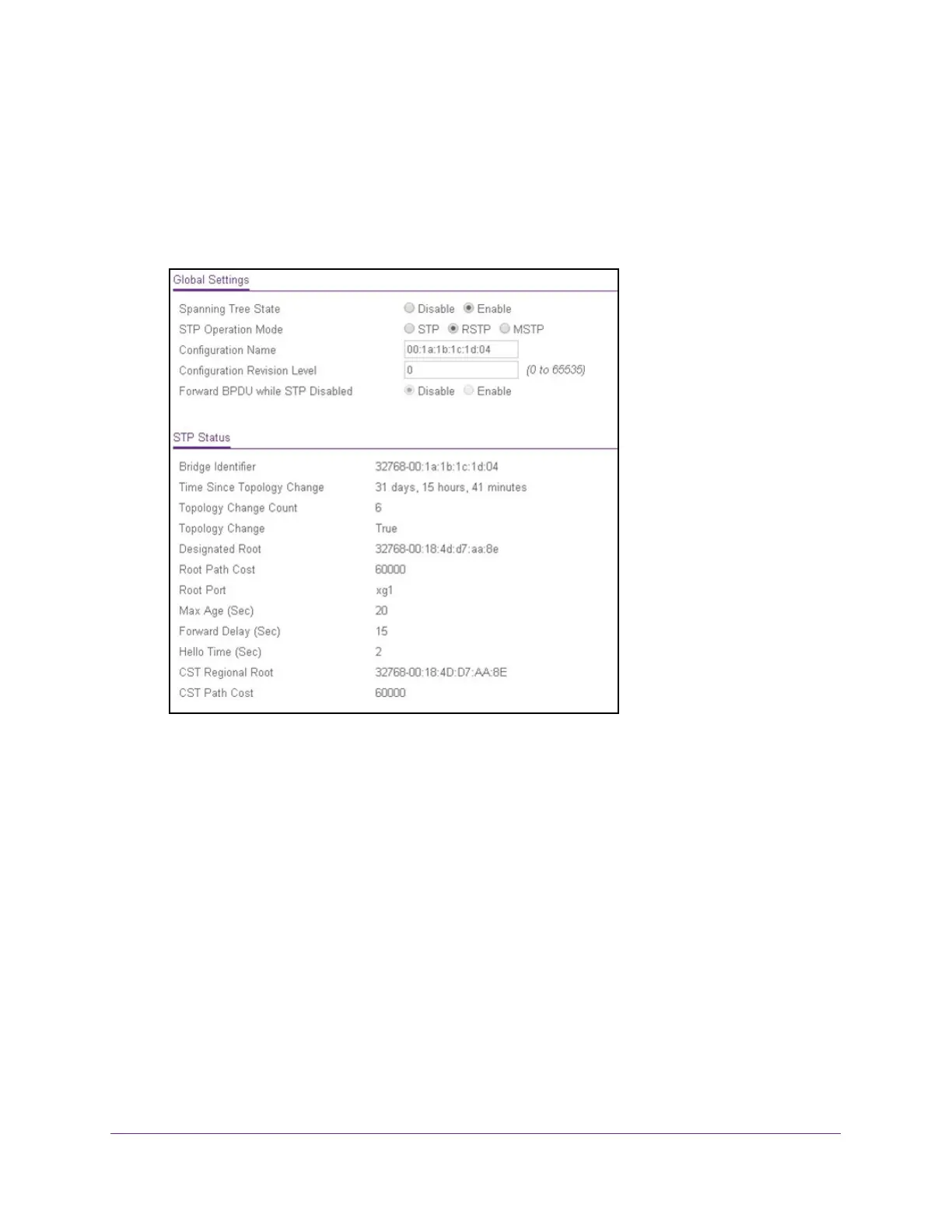

5. Select Switching > STP > Basic > STP Configuration.
6. Configure the following settings:
• Spanning Tree State. Enable or disable the spanning tree operation on the switch.
• STP Operation Mode. Specify the STP version for the switch. The options are STP,
RSTP, and MSTP.
• Configuration Name. Specify an identifier used to identify the configuration currently
being used. It can be up to 32 alphanumeric characters.
• Configuration Revision Level. Specify an identifier used to identify the configuration
currently being used. The values allowed are between 0 and 65535. The default value
is 0.
• Forward BPDU while STP Disabled. Enable or disable the BPDU Flood. This
specifies whether spanning tree BPDUs are forwarded or not while spanning tree is
disabled on the switch.
7. Click the Apply button.
The updated configuration is sent to the switch. Configuration changes take effect
immediately.

NETGEAR ProSafe XS728T Specifications

General

Model	XS728T
Category	Switch
Switching Capacity	560 Gbps
Forwarding Rate	417 Mpps
Ports	24 x 10G SFP+, 4 x 10G Base-T
Management	Web-based, SNMP
Features	ACLs, QoS
Power Supply	Internal 100-240VAC, 50-60Hz
Operating Temperature	0°C to 50°C (32°F to 122°F)
Operating Humidity	90% maximum relative humidity, non-condensing
MAC Address Table Size	32, 000 entries
