Configure System Information
73
ProSAFE 10-Gigabit Smart Managed Switch XS728T and XS748T User Manual
Local Information

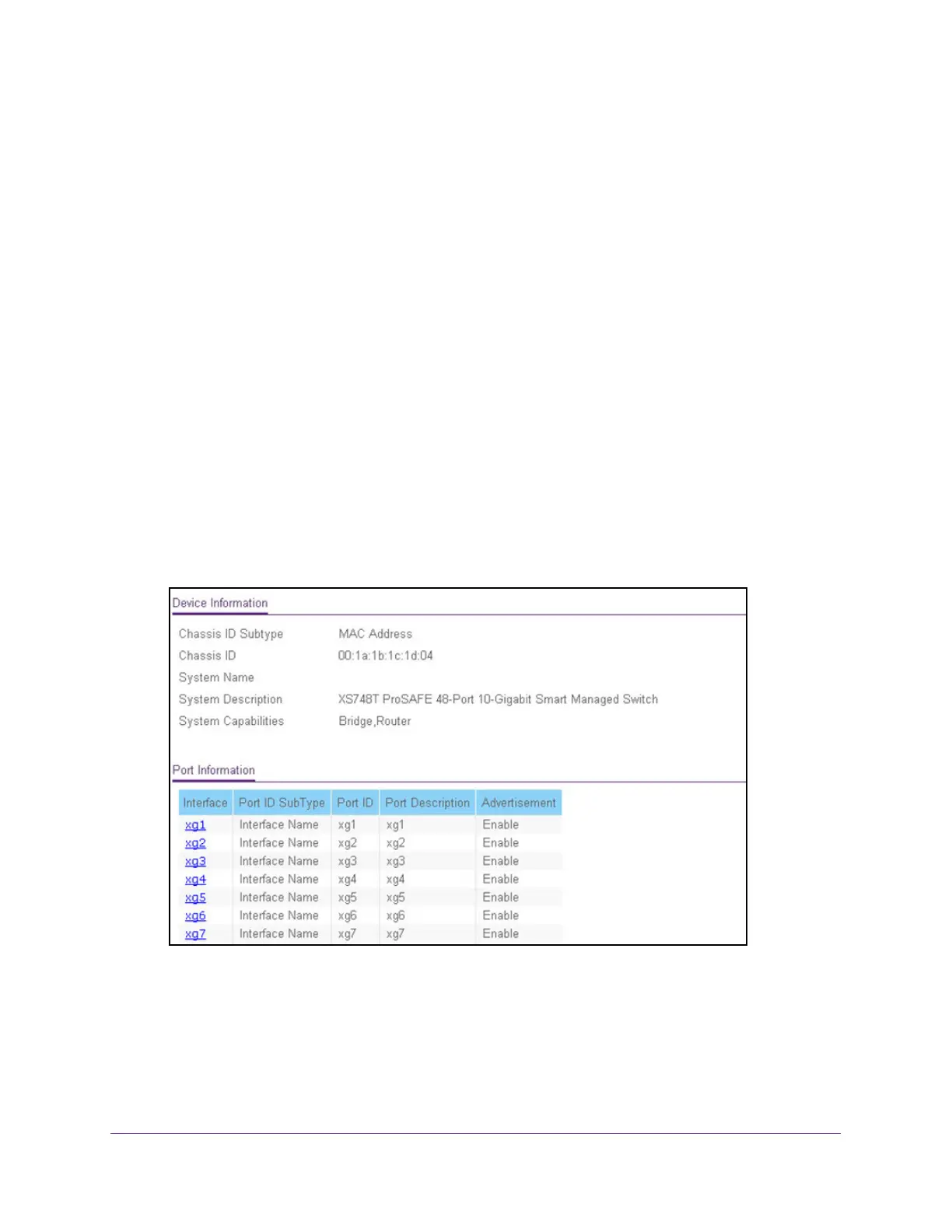

Use the LLDP Local Information page to view the data that each port advertises through
LLDP.
 To view local LLDP information:
1. Connect your computer to the same network as the switch.
You can use a WiFi or wired connection to connect your computer to the network, or
connect directly to a switch that is off-network using an Ethernet cable.
2. Launch a web browser.
3. In the address field of your web browser, enter the IP address of the switch.
If you do not know the IP address of the switch, see Change the Default IP Address of the
Switch on page 10.
The login window opens.
4. Enter the switch’s password in the Password field.
The default password is password.
The System Information page displays.
5. Select System > Advanced > LLDP > Local Information.
The page includes only the interfaces on which LLDP is enabled.
