Manage Device Security
288
ProSAFE 10-Gigabit Smart Managed Switch XS728T and XS748T User Manual
6. In the IP ACL ID field, specify the ACL ID, which depends on the IP ACL type. The IP ACL
ID is an integer in the following range:
• 1–99. Creates a basic IP ACL, which allows you to permit or deny traffic from a source
IP address.
• 100–199. Creates an extended IP ACL, which allows you to permit or deny specific
types of Layer 3 or Layer 4 traffic from a source IP address to a destination IP
address. This type of ACL provides more granularity and filtering capabilities than the
standard IP ACL.

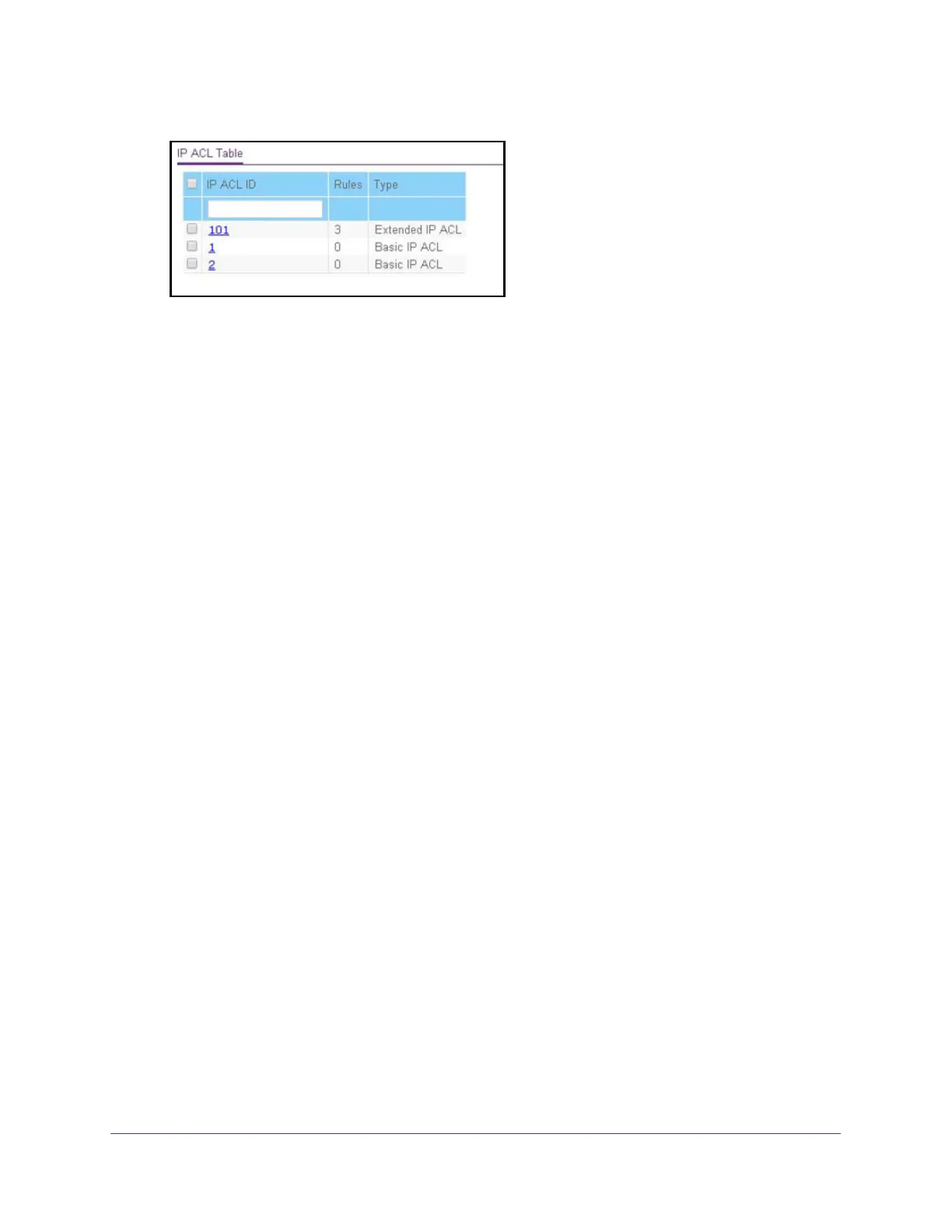

Each configured ACL displays the following information:
• Rules. The number of rules currently configured for the IP ACL.
• Type. Identifies the ACL as a basic IP ACL (with an ID from 1 to 99) or extended IP
ACL (with an ID from 100 to 199).
7. Click the Add button.
The IP ACL is added to the switch configuration.
Delete an IP ACL
To delete an IP ACL:
1. Connect your computer to the same network as the switch.
You can use a WiFi or wired connection to connect your computer to the network, or
connect directly to a switch that is off-network using an Ethernet cable.
2. Launch a web browser.
3. In the address field of your web browser, enter the IP address of the switch.
If you do not know the IP address of the switch, see Change the Default IP Address of the
Switch on page 10.
The login window opens.
4. Enter the switch’s password in the Password field.
The default password is password.
The System Information page displays.
5. Select Security > ACL > Advanced > IP ACL.
The IP ACL Configuration page displays.
To Next Page
