NETGEAR ProSafe XS728T User Manual

Configure System Information
51
ProSAFE 10-Gigabit Smart Managed Switch XS728T and XS748T User Manual
4. Enter the switch’s password in the Password field.
The default password is password.
The System Information page displays.
5. Select System > Management > DNS > Host Configuration.
6. In the Host Name (1 to 158 characters) field, specify the static host name to add.
Its length cannot exceed 158 characters and it is a required field.
7. In the IPv4/IPv6 Address field, enter the IP address to associate with the host name.
8. Click the Add button.
The entry displays in the list on the page.
Remove an Entry From the Dynamic Host Mapping Table
 To remove an entry from the dynamic host mapping table:
1. Connect your computer to the same network as the switch.
You can use a WiFi or wired connection to connect your computer to the network, or
connect directly to a switch that is off-network using an Ethernet cable.
2. Launch a web browser.
3. In the address field of your web browser, enter the IP address of the switch.
If you do not know the IP address of the switch, see Change the Default IP Address of the
Switch on page 10.
The login window opens.
4. Enter the switch’s password in the Password field.
The default password is password.
The System Information page displays.
5. Select System > Management > DNS > Host Configuration.

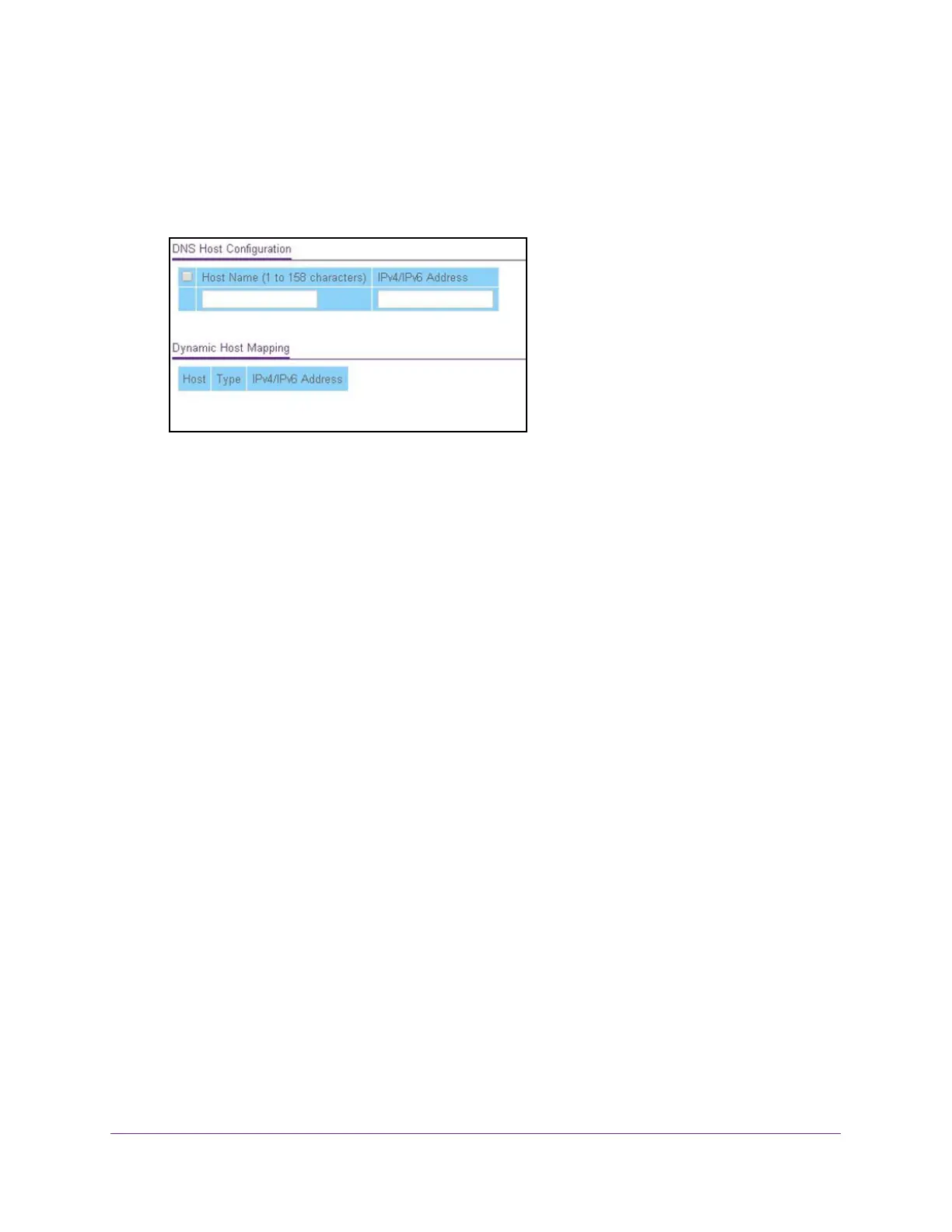

The DNS Host Configuration page displays.
6. Select the check box for the entry to remove.
7. Click the Delete button.
The entry is removed.

NETGEAR ProSafe XS728T Specifications

General

Model	XS728T
Category	Switch
Switching Capacity	560 Gbps
Forwarding Rate	417 Mpps
Ports	24 x 10G SFP+, 4 x 10G Base-T
Management	Web-based, SNMP
Features	ACLs, QoS
Power Supply	Internal 100-240VAC, 50-60Hz
Operating Temperature	0°C to 50°C (32°F to 122°F)
Operating Humidity	90% maximum relative humidity, non-condensing
MAC Address Table Size	32, 000 entries
