Monitoring
52
Outdoor High Power Wireless N Access Point

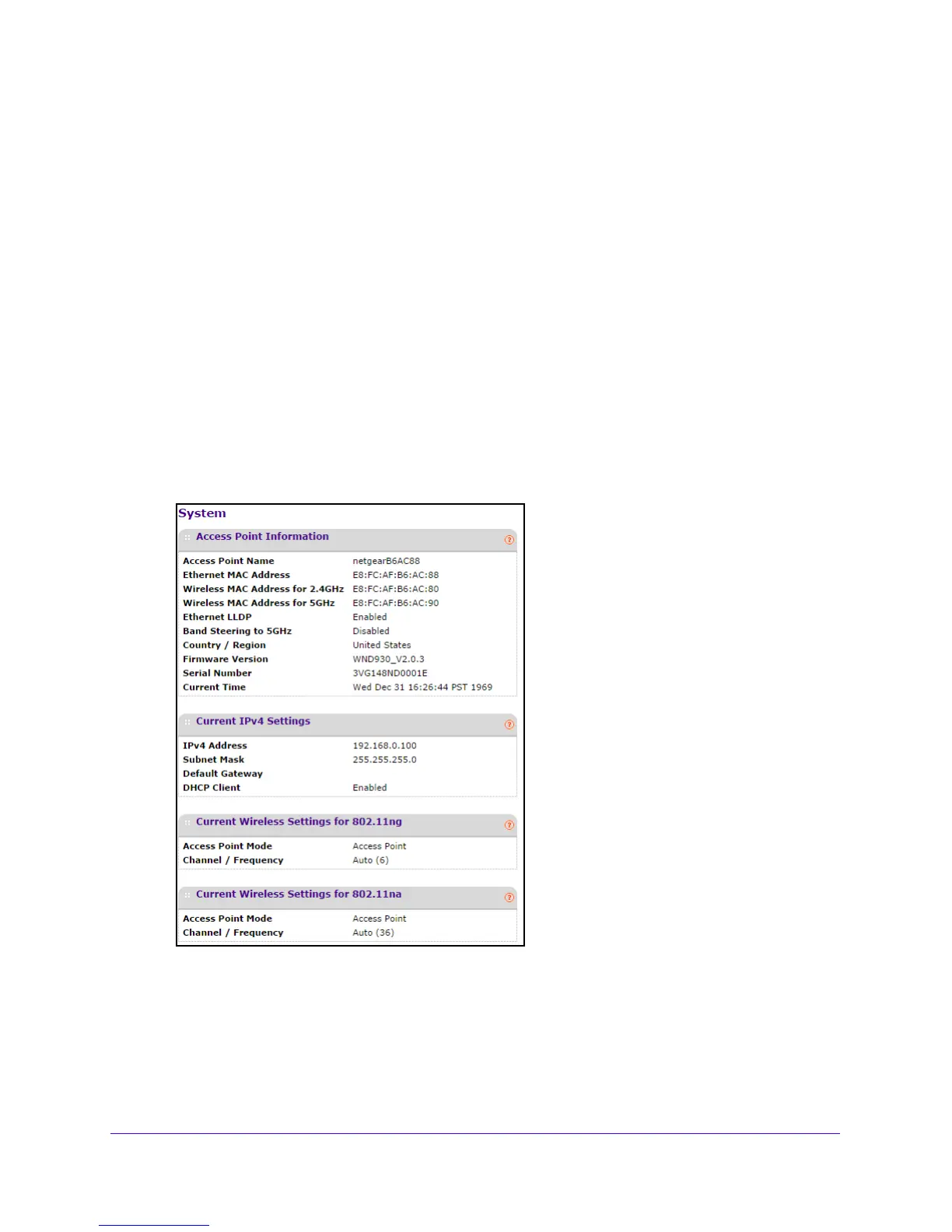

View System Information
You can view a summary of the current access point configuration settings, including current
IP settings and current wireless settings. This information is read-only, so any changes must
be made on other screens.
To view system information:
1. Laun
ch a web browser on the computer that is connected to the access point.
2. In
the address field of the browser, enter http://192.168.0.100.
A login prompt displays.
3. Enter th
e user name and password.
The user name is ad
min and the default password is password.
The General screen displays.
4. Select Monitori
ng > System.
The following access point information displays:
• Access
Point Name. The NetBIOS name. The default name can be changed.
• Ethernet MAC Addres
s. The MAC address of the access point’s Ethernet port.
• W
ireless MAC Address for 2.4 GHz. The MAC address of the access point’s 2.4
GHz wireless port.
