Hardware Setup
8
Outdoor High Power Wireless N Access Point

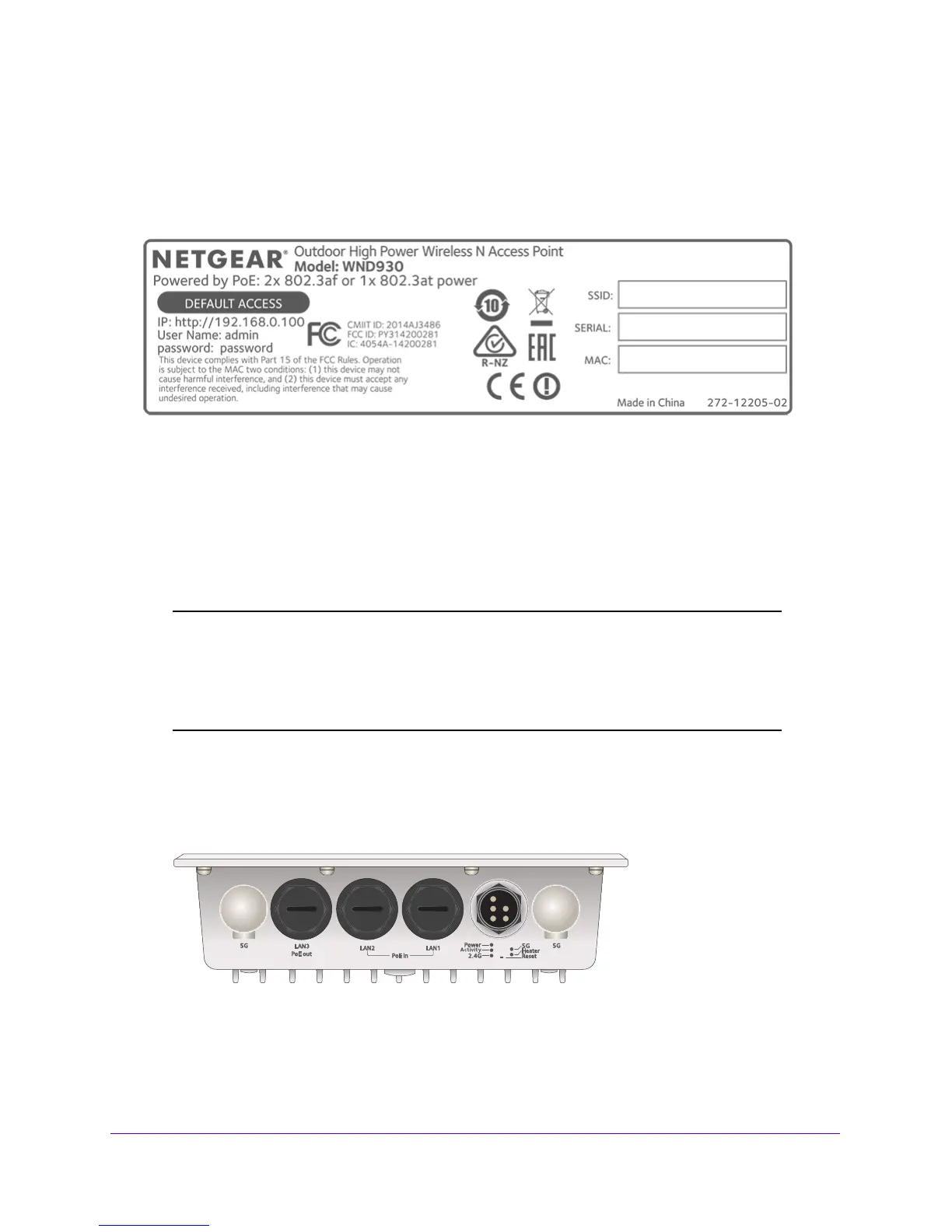

Product Label
The product label is located on the rear panel. It includes the default access information and
the serial number and MAC address.
Figure 3. Product label
Cable the Access Point for Initial Setup
Before mounting the access point in a high location, first set up and test the unit to verify
wireless network connectivity.
Note: DHCP client is enabled by default in the access point. If your network
includes a DHCP server, the access point obtains an IP address from
the DHCP server. If a DHCP server is not detected in your network
after 30 seconds, the access point sets its IP address to a static IP
address of 192.168.0.100.
To cable your access point:
1. Using an Ethernet cable,
connect power-sourcing equipment (PSE) to a PoE port on the
access point.
Note: You must supply either IEEE802.3at power to at least one LAN port or
IEEE802.3af power to two LAN ports to power the access point. You
must supply IEEE802.3atpower to both LAN ports to receive PoE power
out.
