Hardware Setup
6
Outdoor High Power Wireless N Access Point
System Requirements
Before installing the access point, make sure that your system includes the following:
• A 10/10
0/1000 Mbps local area network device such as a hub or switch, supporting IEEE
802.3af\ Power over Ethernet (PoE).
• The Catego
ry 5 UTP straight-through Ethernet cable with RJ-45 connector included in the
package, or one like it
• A web browser for configuration
• At lea
st one computer with the TCP/IP protocol installed
• 802.1
1b/g/n-compliant or 802.11a/n-compliant devices
Unpack Your Access Point
Your package contains the following items.
Wall-mounting bracket
Bracket
Pole-mount clamps (2)
Weatherproof
Access point
cable glands (3)
Grounding
screws (2)
screws (4)

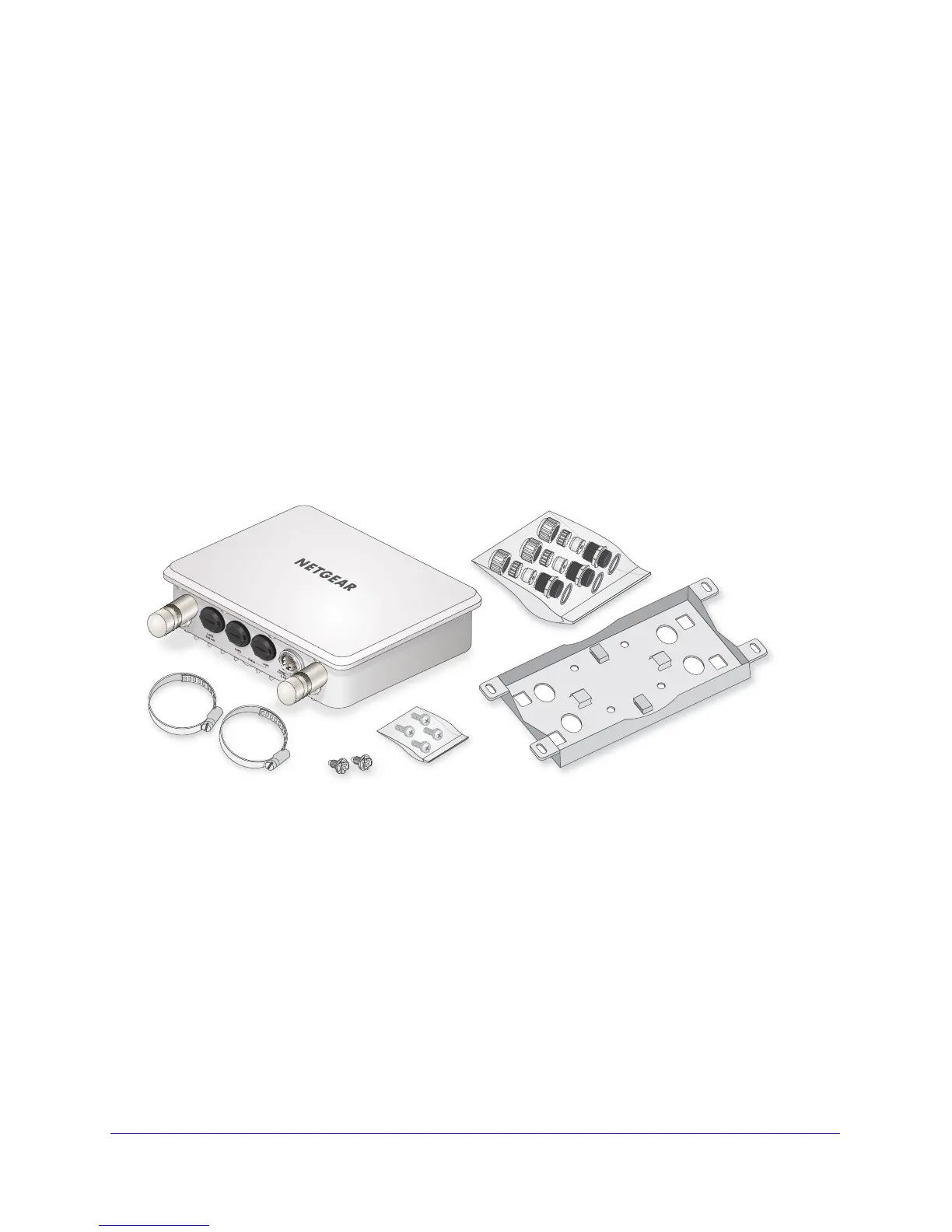

Figure 1. Package contents
