33
SECTION 41 − STEERING − CHAPTER 1
603.54.471.00 − 11 − 2004
FRONT AXLE STEERING CYLINDER
(Four wheel drive axle)
Removal−Refitting

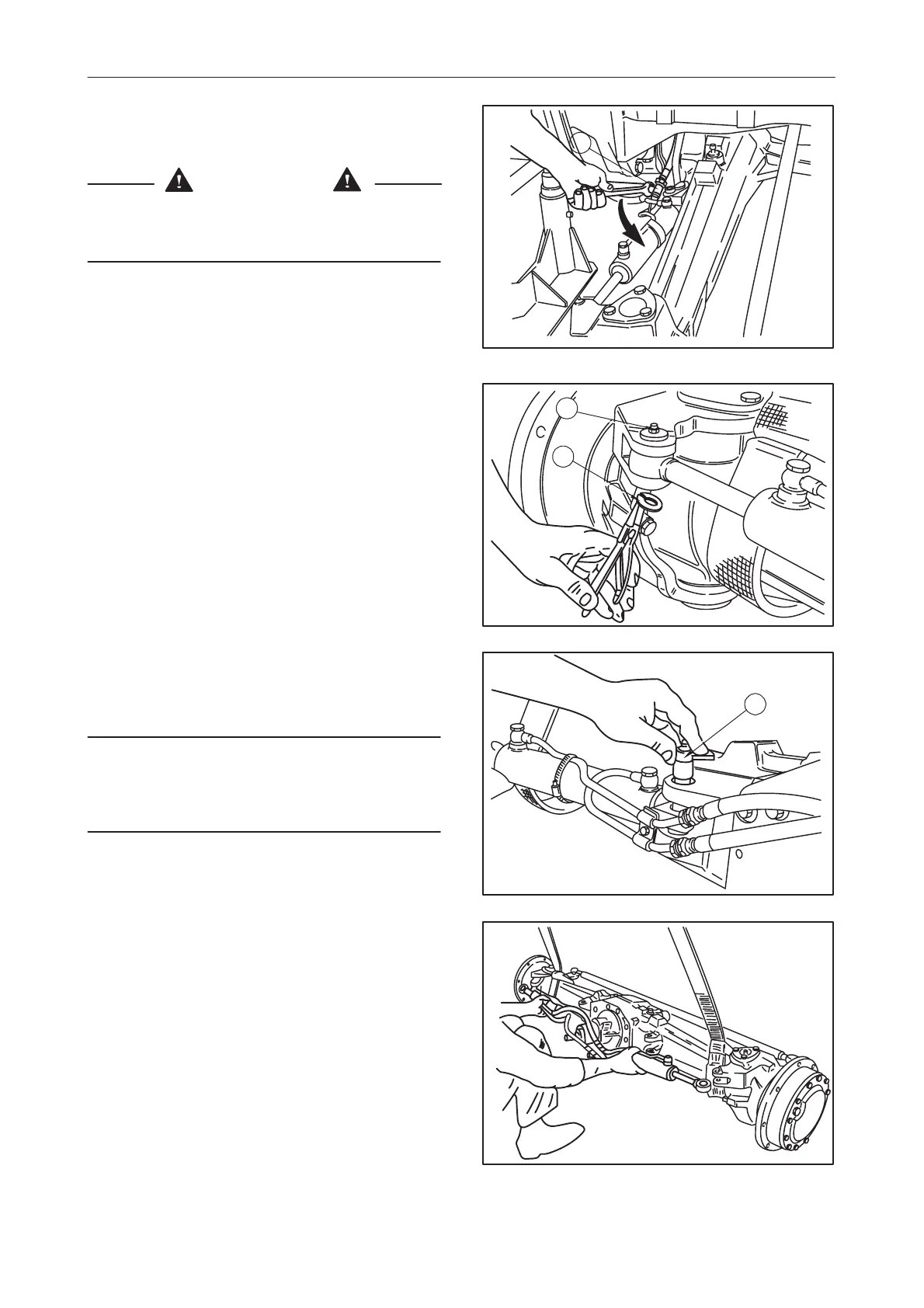

To remove the front axle steering cylinder, proceed
as follows:
1. Disconnect the negative cable from the battery.
2. Unscrew the unions securing the delivery and
return hoses to the steering cylinder.
WARNING
Handle all parts with great care. Do not put your
hands or fingers between one part and another.
Wear the recommended safety clothing such as
goggles, gloves and safety boots.
24863
77
1
24861
78
3. Remove the snap ring (1) and remove the
cylinder rod articulation pin (2) connected to
the stub axle housing.
1
2
79
4. Remove the retaining screw and extract the pin
(1) securing the steering cylinder to the axle.
Remove the steering cylinder.
NOTE: Should you want to remove both steering
cylinders complete with supply pipes, omit step 3
described above and carry out steps 2 and 4 for the
other cylinder too.
24862
1
80
24864
5. Remove the two actuator cylinders complete
with supply pipes.
