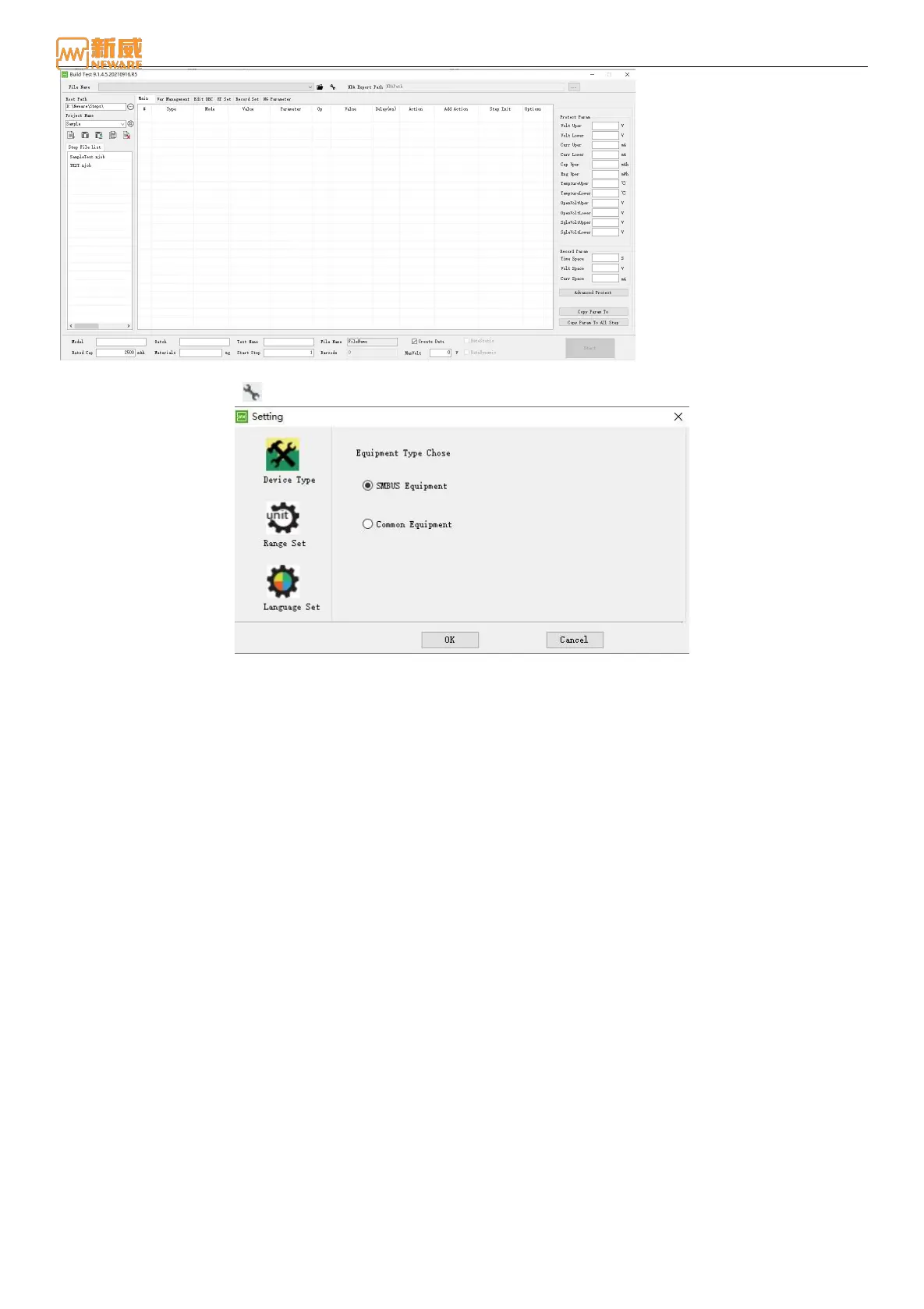

Figure 4-32 Step editing
1. Click the setting button , to set the Device Type, Range Set and language Set.
Figure 4-33 Equipment Type Chose
Types of equipment: The step protection conditions on different devices are different. The following content describes
the step editor on SMBUS devices.
Range setting: Users can set it according to the actual range of the device.
Language setting: English and Chinese are available
2. Users can set the battery batch number and file description as required to facilitate data search and management.
Types of step
The BTS9 software supports the following step settings: Users can set cut-off conditions. When the cut-off condition is met,
the step performs the jump operation. Multiple cut-off conditions can be set. The relationship between each cut-off
condition is "or". That is, in the test project, as long as any cut-off condition is triggered, the step can realize ‘jump’: next
step, suspend, stop, protect, complete. The system supports the upper and lower limits of battery voltage and temperature as
the cut-off conditions for auxiliary channels.
1. CC charge
Charge the battery at a constant current set by the user. Voltage, time, capacity, energy, power, and -V values can be set
as charging cut-off conditions.
2. CC discharge
Discharge the battery at a constant current set by the user. You can set voltage, time, capacity, energy, and power as
discharge cut-off conditions.
3. CV charge
Charge the battery at a constant voltage set by the user. Current, time, capacity, energy, and power can be set as
charging cut-off conditions.
4. CCCV charge
Charge the battery at a constant current set by the user. When the set voltage is reached, the battery is charged at a
constant voltage. Current, time, capacity, energy and power can be set as charging cut-off conditions.
5. CCCV discharge
Discharge the battery at a constant current set by the user. When the set voltage is reached, the battery is discharged at
a constant voltage. You can set current, time, capacity, energy, and power as discharge cut-off conditions.
6. CP charge
