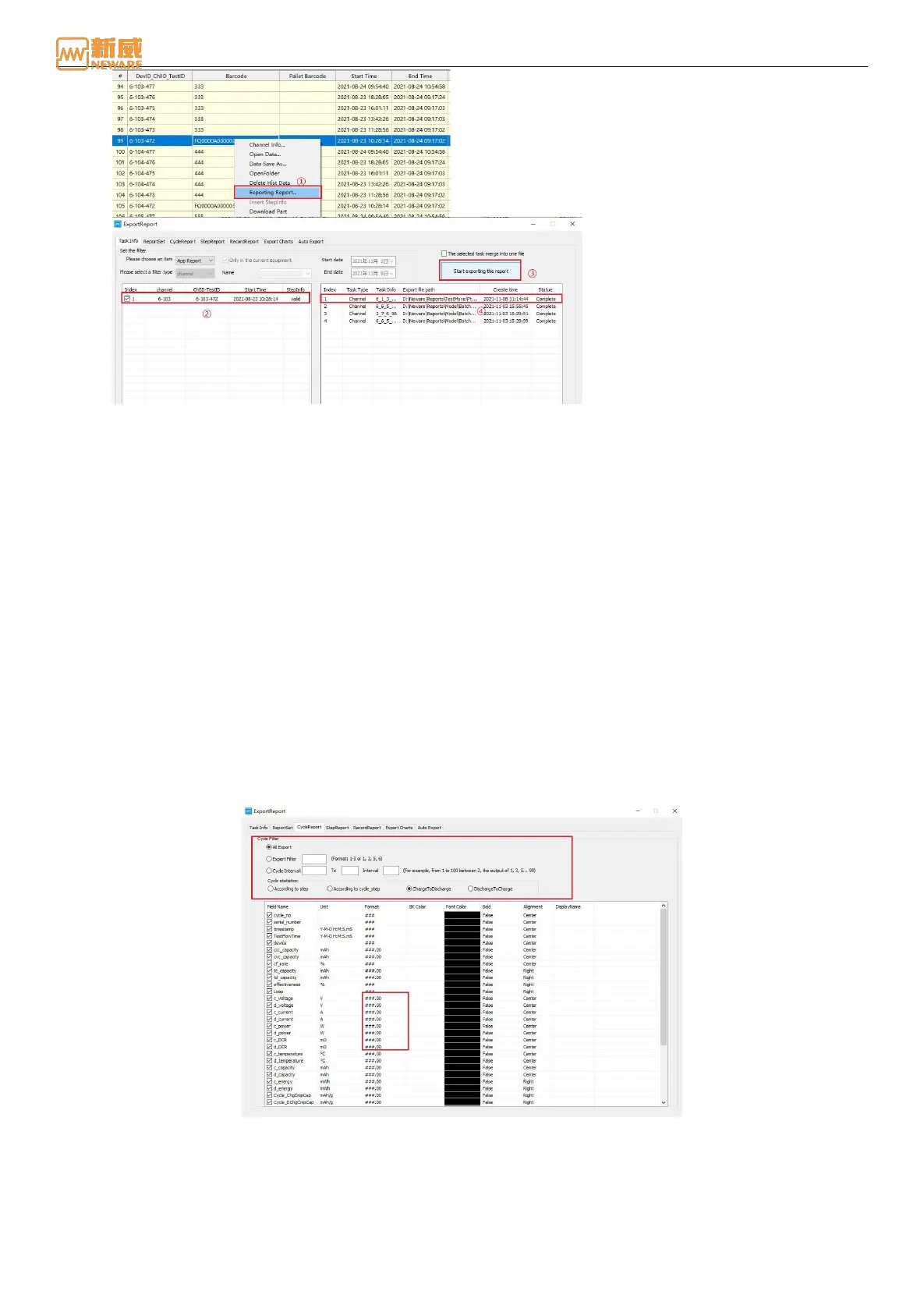

Figure 4-41 Manual report export
Report Export Configuration
The report export has two default configuration items. One is the RAW Report, which contains test information, step
information, and record layer information. The other is the CYC report, which includes test information, step information,
and cycle information. You can also select configuration items to save or delete them. The default configuration cannot be
deleted.
Report an export item Settings can optionally select test information, step information, record layer information, circular
information, and auxiliary channel data. After selecting cycle information, step information, and record information,
configure specific data items on the export interface of the cycle layer, step layer, and record layer.
On the export configuration page of the cycle layer, select data items (such as cycle number, charge capacity, discharge
capacity, charge specific capacity, and discharge specific capacity) and set the unit, value format, background color, font
color, bold or not, and alignment style of data items. Set up cyclic filtering. The first cyclic filtering mode is all export. The
second cyclic filtering mode is the export interval, such as input 1-3 or 1,2,5,8. The third type of cyclic filtering is cyclic
interval. For example, the interval from 1 to 100 is 2, and the output is 1,3,5... 99. Set the cycle statistics mode according to
the step sequence: first charge and then release, or first discharge and then charge.
Figure 4-42 cycle layer export configuration
Select step report data items (such as step ID, step type, capacity, and specific capacity) on the step layer export
configuration interface, and set the unit, value format, background color, font color, bold or not, and alignment style of data
items. Set up step filter, export all step types, or filter discharge electrician step/charge step.
