15

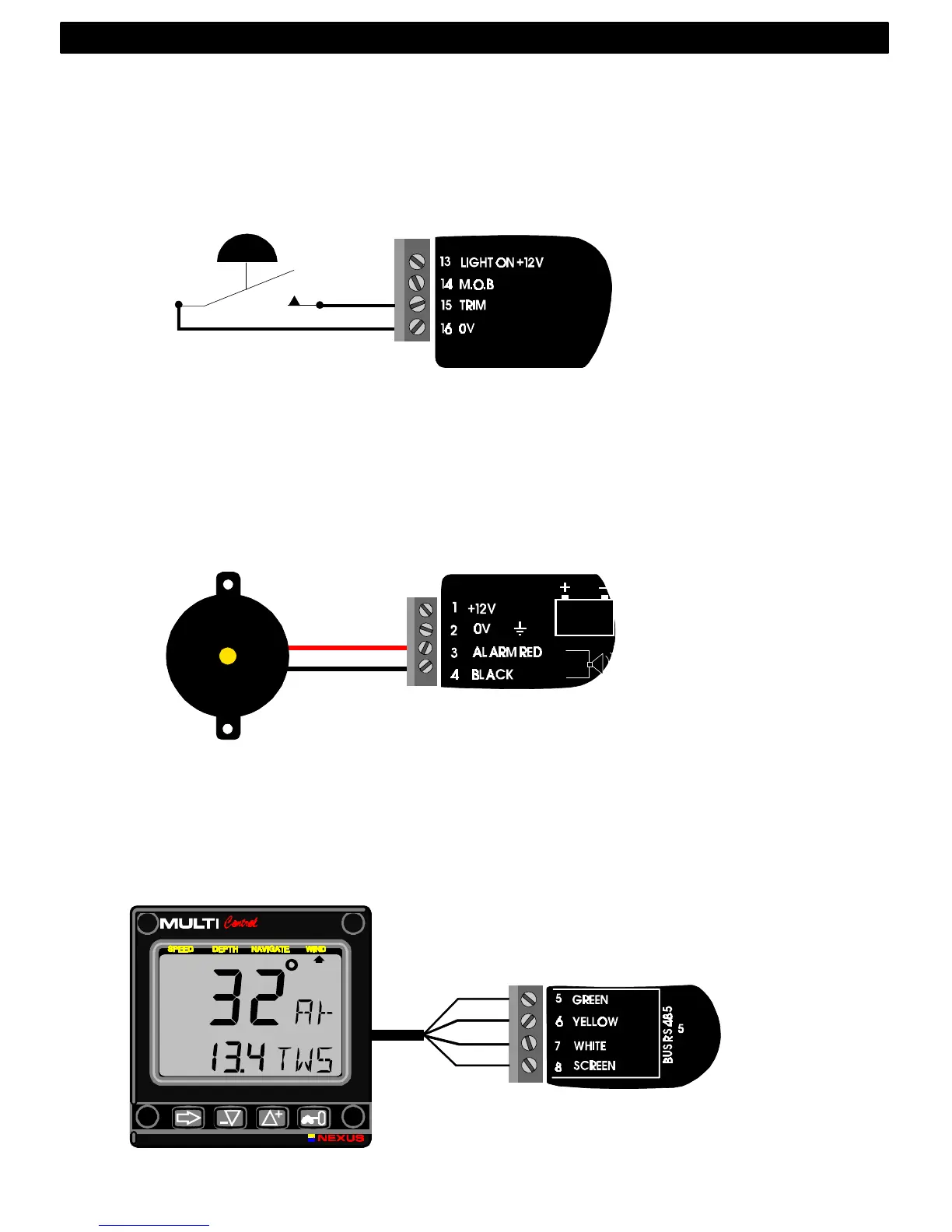

2.6.2 Tactical function push-button
Art. no. 19763 (same as MOB). (For function explanation, see
9.1).
White wire to Server pin 15 (TRIM). Brown wire to Server pin 16 (0
V).
2.6.3 Extra alarm buzzer
Art. no. 20081. The extra buzzer (105 dB at 15 cm, not water
proof) can be mounted where you want a louder sound. The
buzzer will sound as soon as any alarm function is activated in the
Nexus Network.
Red wire to Server pin 2 (ALARM RED).
Black wire to Server pin 4 (BLACK).
2.6.4 Nexus instruments
All Nexus instruments are connected directly to the Nexus Network
in a daisy chain. They all use the same colour coded 4-pole jack
plugs. (For instrument installation, see 2.2).
INSTALLATION
