Note a: Try to keep the power cables as short as possible.
Note b: Up to 32 Nexus instrument units (Server, digital and
analogue instruments, Autopilot servo-unit or a Nexus GPS) can
be connected to the single Nexus data bus cable.
If more than 10 units are connected, the power must be supplied
at both ends of the chain of units, a so called ”ring-connection”, as
shown. Do not connect the Nexus data bus wires (yellow and
white) in ring-connection.
2. Check that all the connections are correct before you power up
the system.
2.11 Compatibility with our previous transducers
2.11.1 Log transducer
All our log transducers (except the transducers from the S-2000
and S-200 series) can be used for speed and distance.
Only transducers from Nexus- and STAR-series are able to
measure water temperature.
Note: On the Power transducer the white cable (for water
temperature) should be isolated and not installed.
INSTALLATION

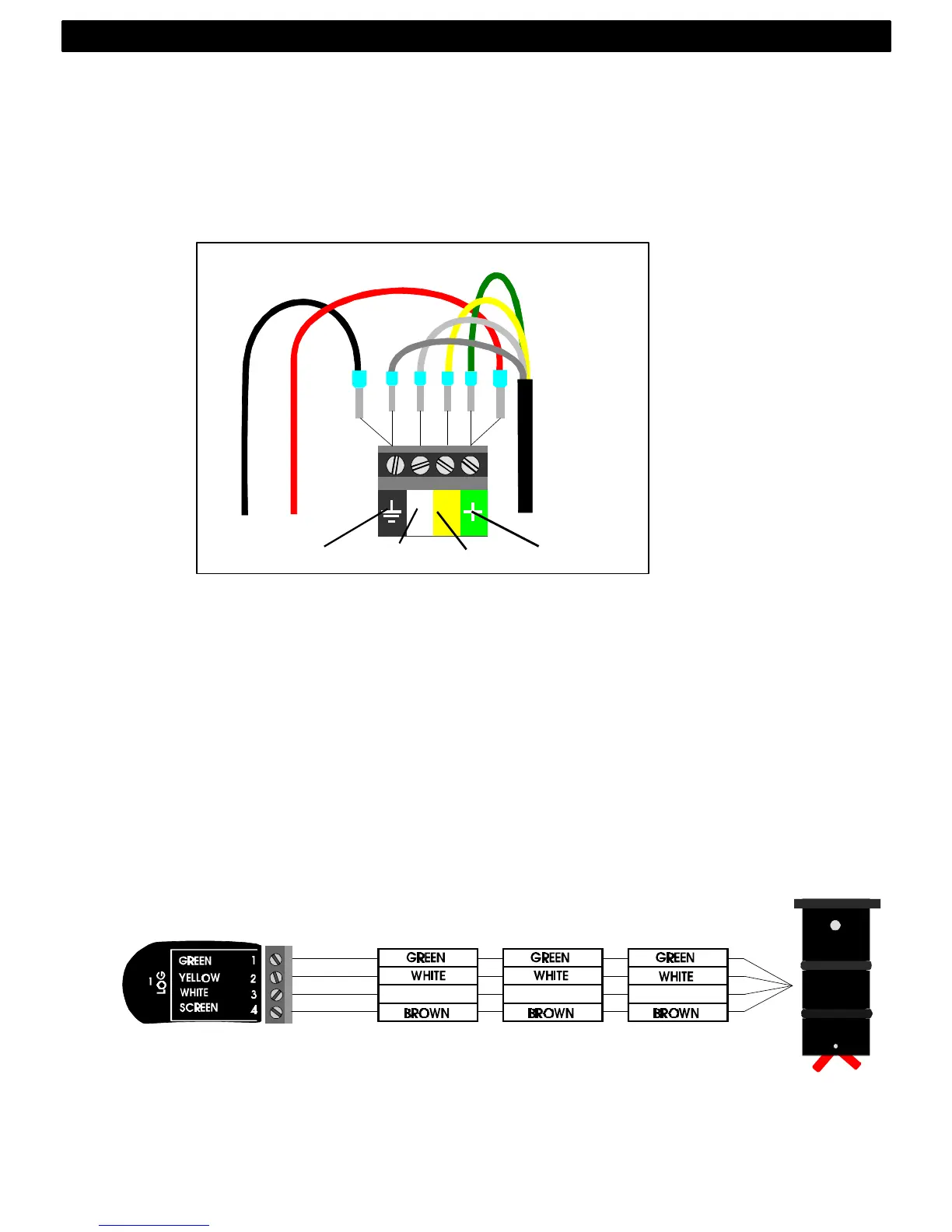

Screen White Yellow Green
Direction
Power
S-220
S-2200
